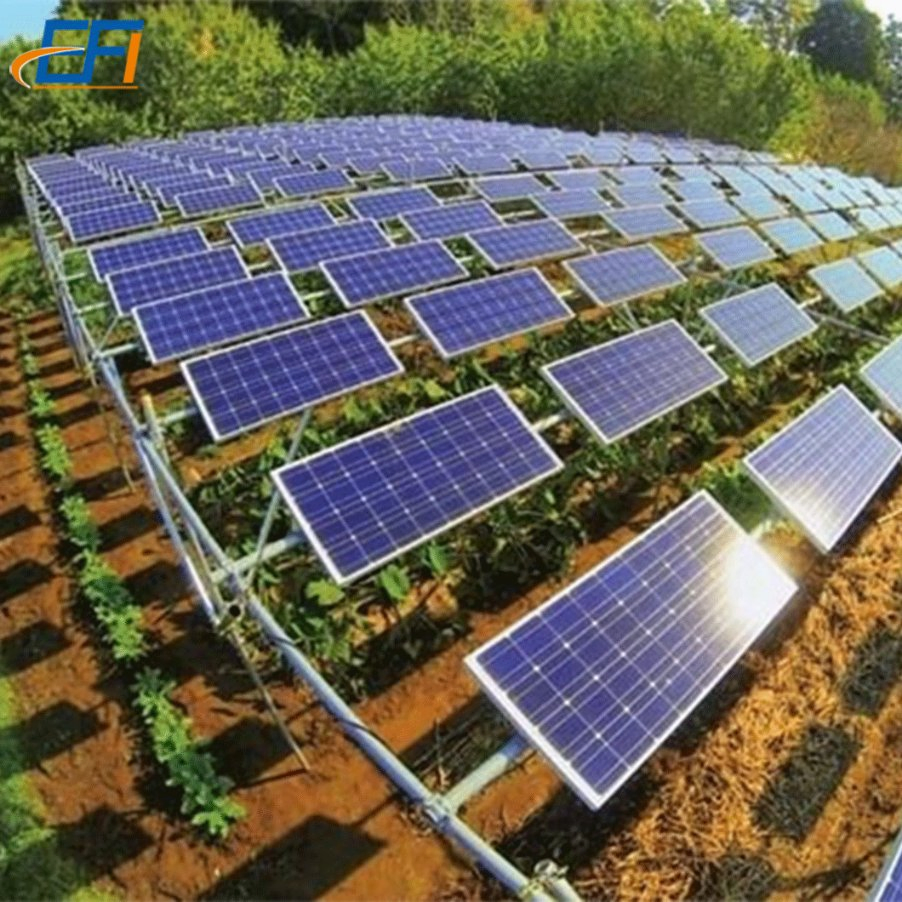

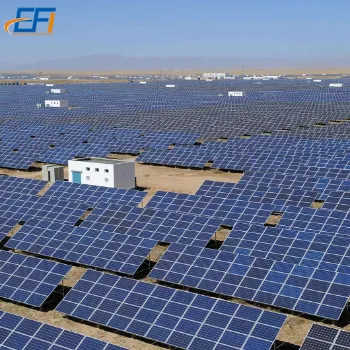

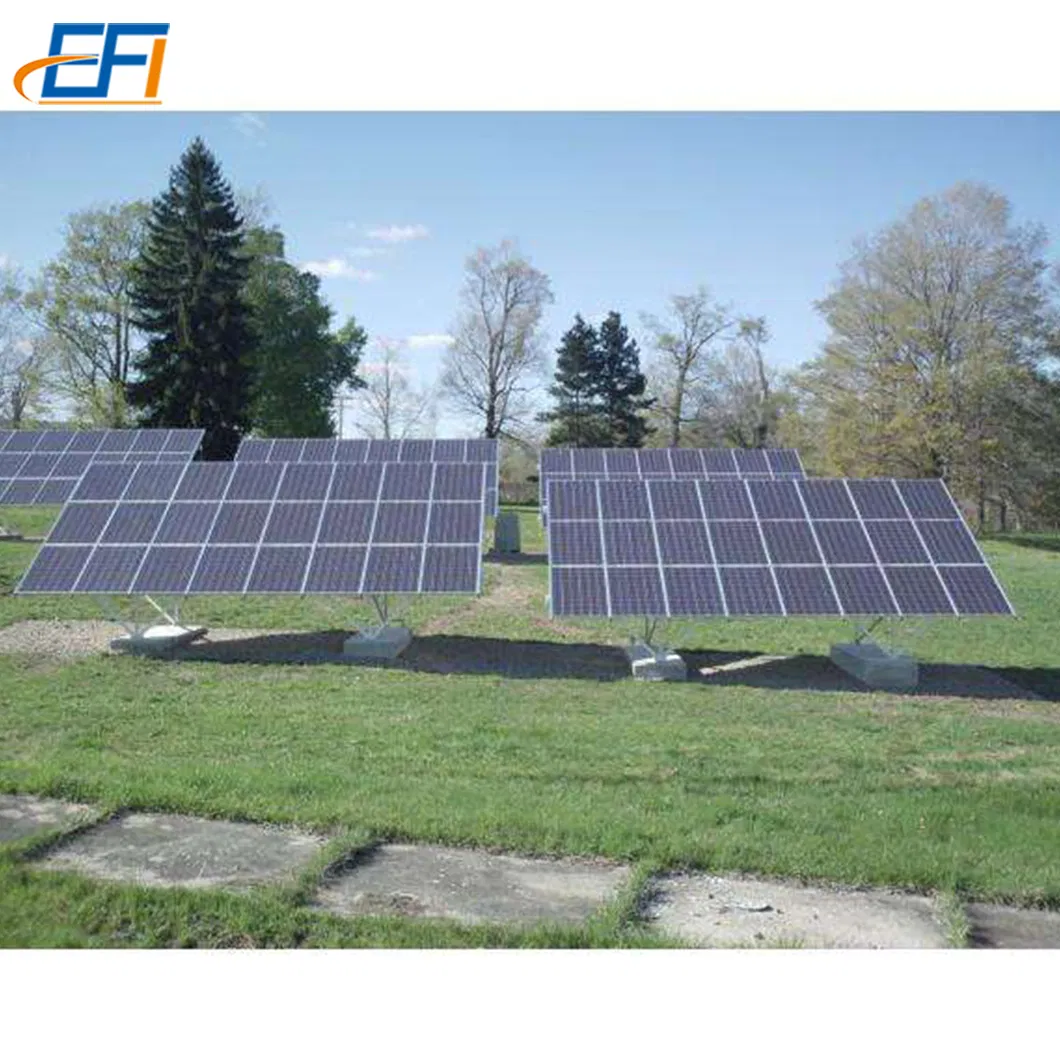

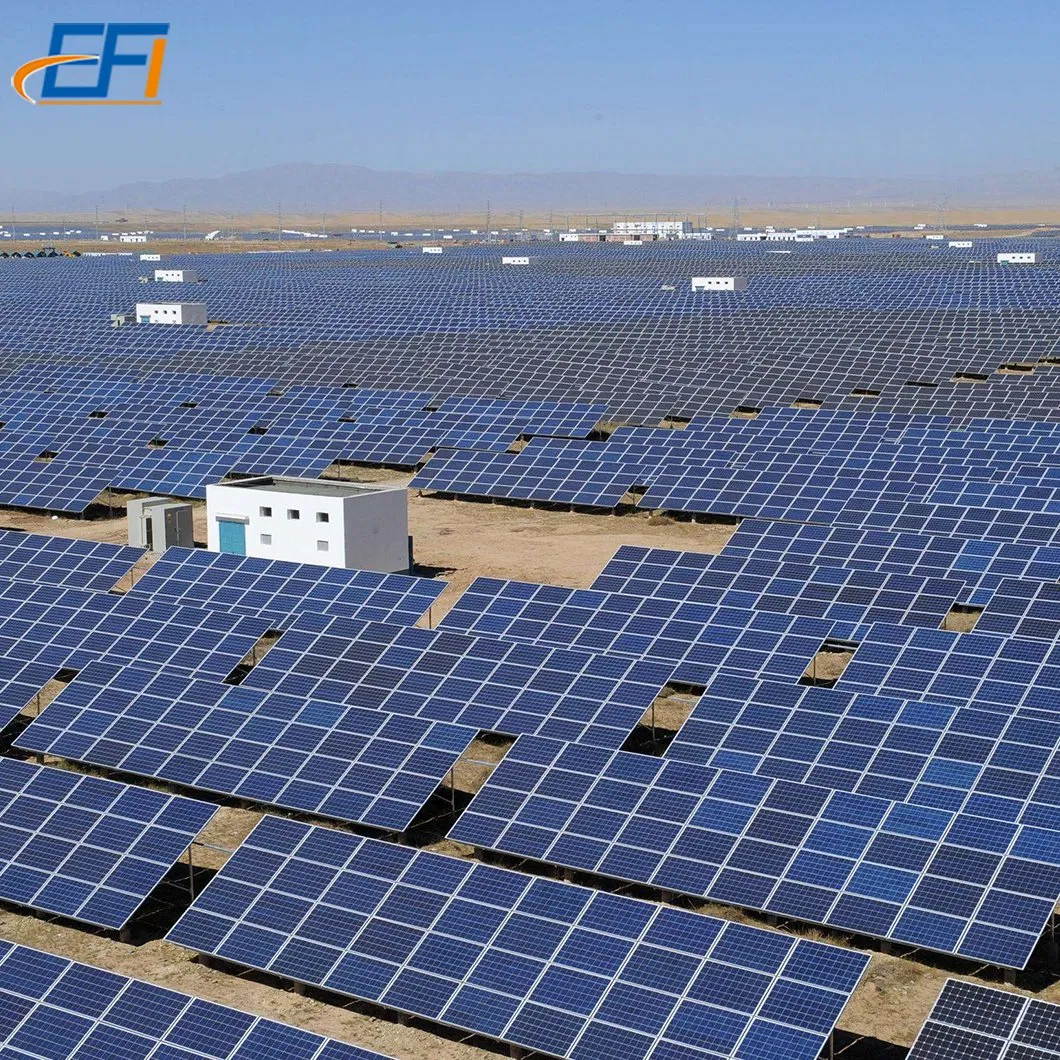

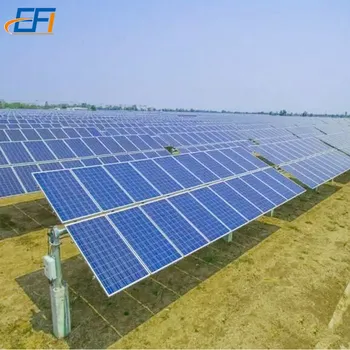

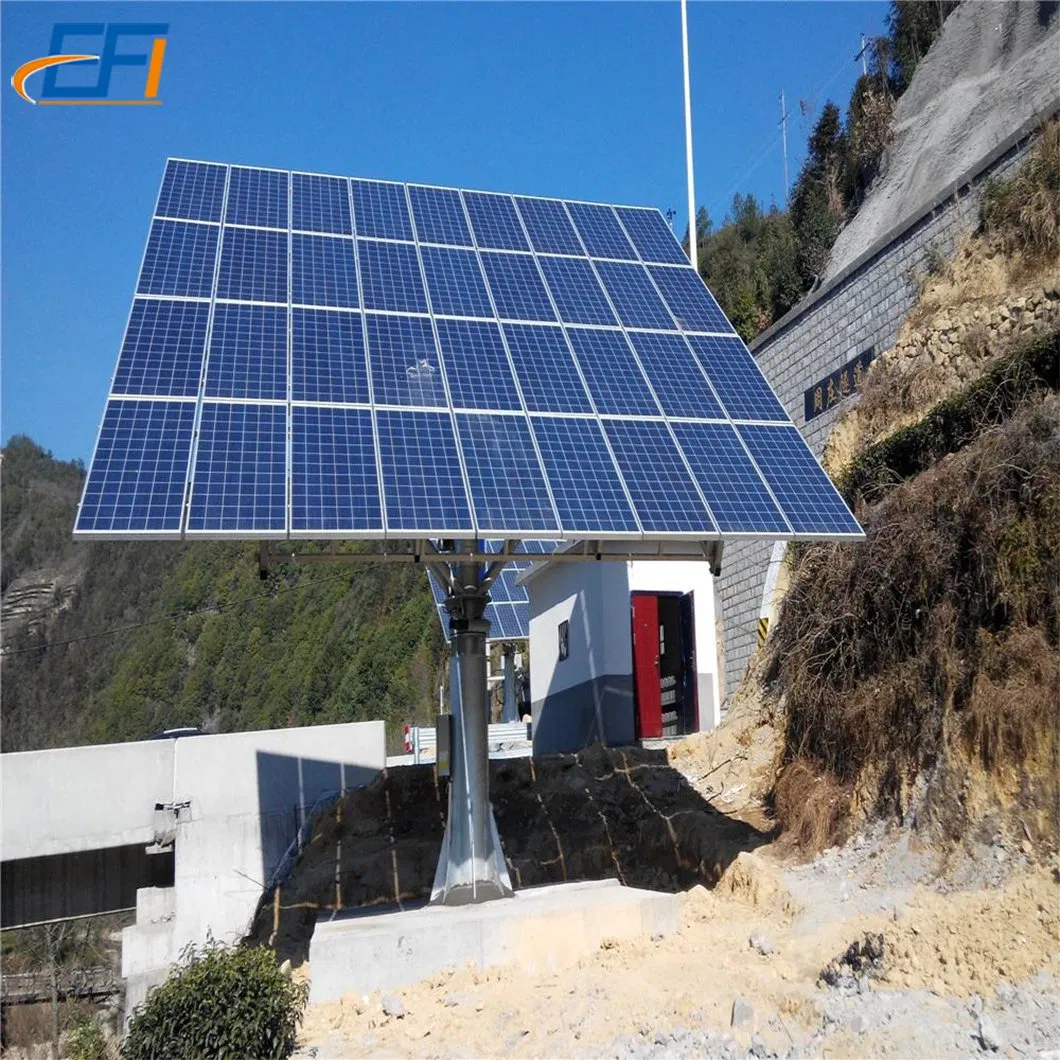

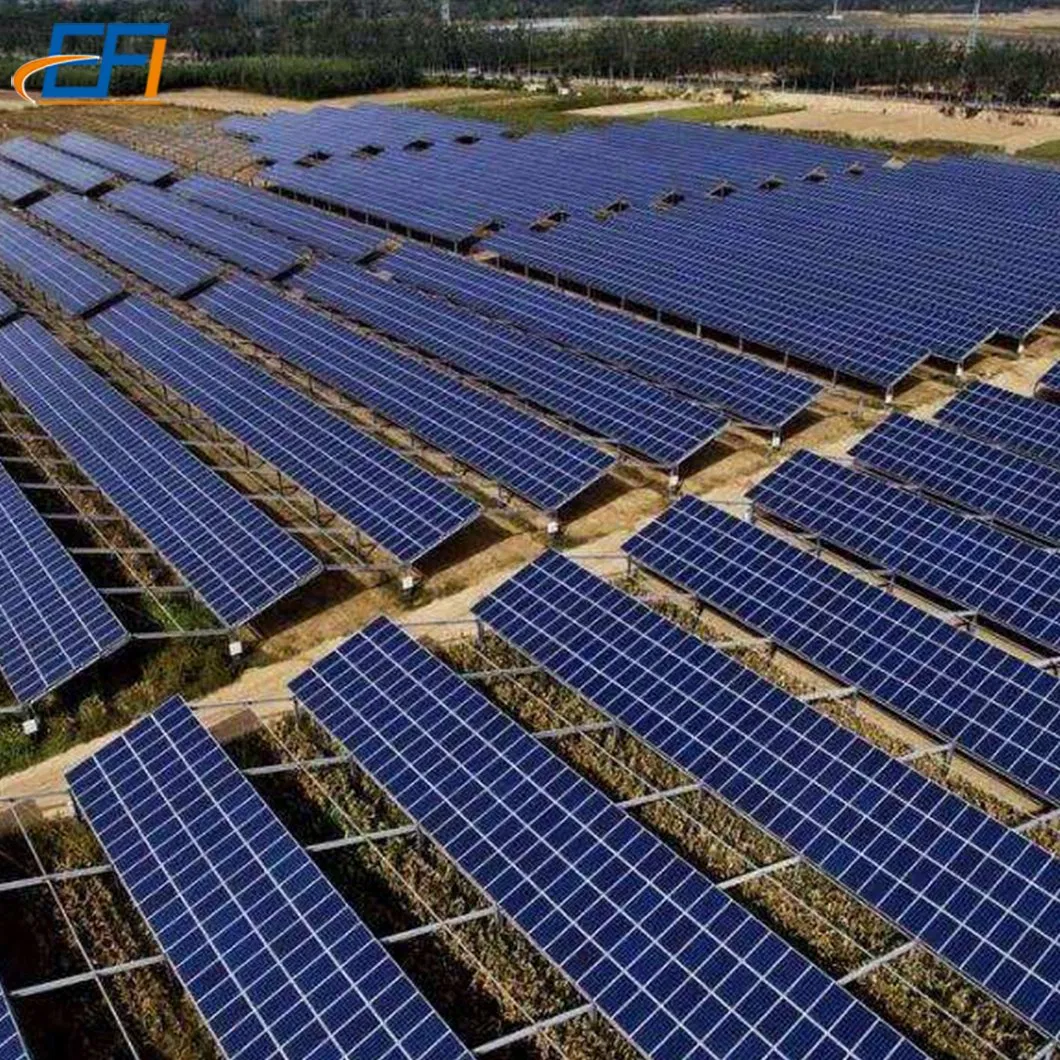

Single Axis Sun Tracking Solar System Ground Industrial Solar Mounting System
Single Axis Sun Tracking Solar System Ground Industrial Solar Mounting System
Single Axis Sun Tracking Solar System Ground Industrial Solar Mounting System
Single Axis Sun Tracking Solar System Ground Industrial Solar Mounting System
Single Axis Sun Tracking Solar System Ground Industrial Solar Mounting System
1 / 5
Single Axis Sun Tracking Solar System Ground Industrial Solar Mounting System
Single Axis Sun Tracking Solar System Ground Industrial Solar Mounting System
Single Axis Sun Tracking Solar System Ground Industrial Solar Mounting System
Single Axis Sun Tracking Solar System Ground Industrial Solar Mounting System
Single Axis Sun Tracking Solar System Ground Industrial Solar Mounting System

Single Axis Sun Tracking Solar System Ground Industrial Solar Mounting System

Customization: Available
After-sales Service: 2 Years
Warranty: 2 Years
Send Inquiry

Product Description

i

Basic Information

Model NO.
solar system
Condition
New
Certification
ISO, CE
Application
Home, Industrial, Commercial
Specification
Normal, 10kw solar panel mounting
Wind Load
150 Km/H
Snow Load
1.4kn/M2
Model Type
Frame
Color
Natural
Capacity
30000PCS Monthly
Output Voltage
110V/220V
Work Time
8-10h
Battery Type
Lead Acid
Transport Package
Carton Box or Wooden Pallet with Customer Require
Origin
China
Production Capacity
10000sets/Week
D

Product Description

Description of Single Axis Sun Tracking Solar System Ground Industrial Mounting

Single Axis Sun Tracking Solar System Ground Industrial Solar Mounting System
Single Axis Sun Tracking Solar System Ground Industrial Solar Mounting System
Raw MaterialAluminum 6063;HDG Steel;Stainless steel 304
StylesSingle Pole,Double Poles,Concrete Foundation,Ground Screws; House Roof Mounting Structures
Manufacturing EquipmentExtrusion,Cold Rolled,Cutting, deburring, punching, tapping, chamfering machines
Surface TreatmentHDG(hot dipped galvanized ),Pre-galvanized,Electrical-galvanizing, powder coating,Anodized etc.
UsageSolar light industry, solar panel industry, solar power industry, solar energy industry, solar station industry, solar farm and solar park Industry.
DimensionsCustomized
LengthsEither 10FT or 20FT or cut into the length according to requirements
ThicknessAbove 0.7mm or customized.
MOQ1000 Pieces
Warranty10 years warranty and service life of 25 years

System Gallery

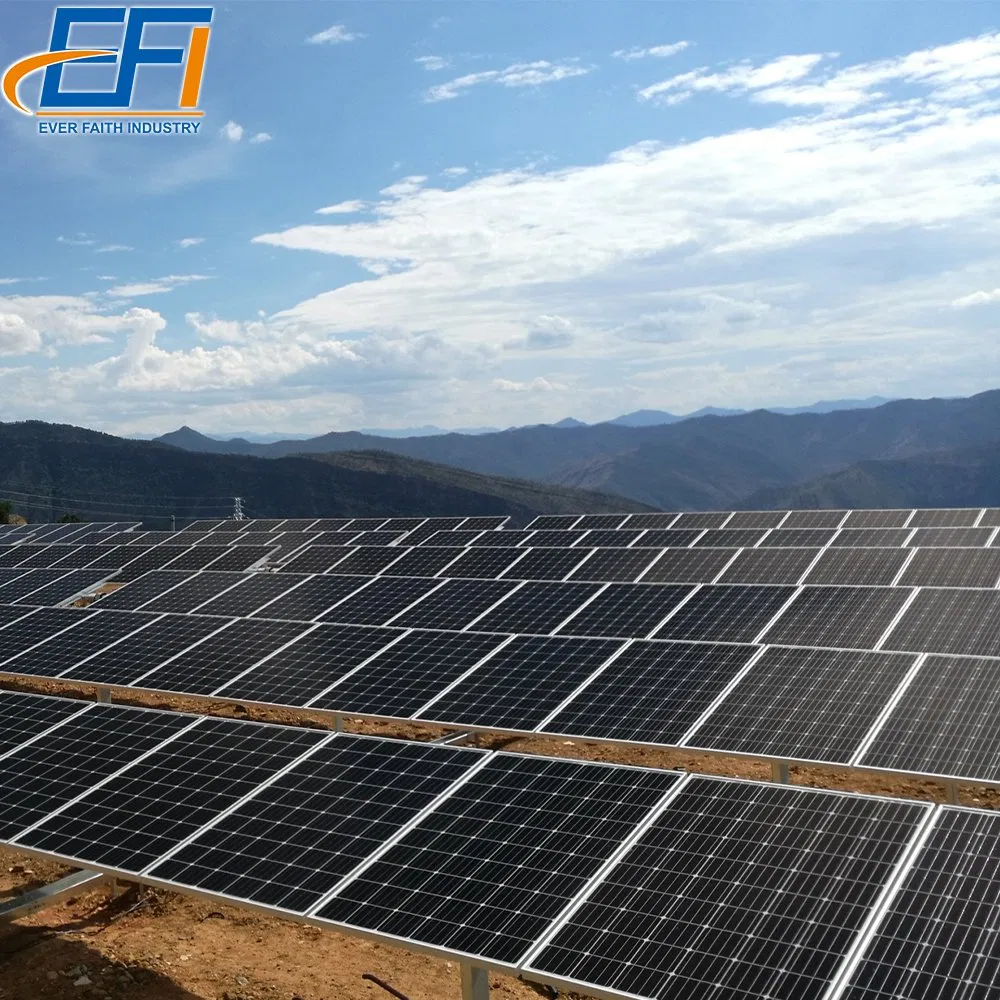

Tracking System View 1

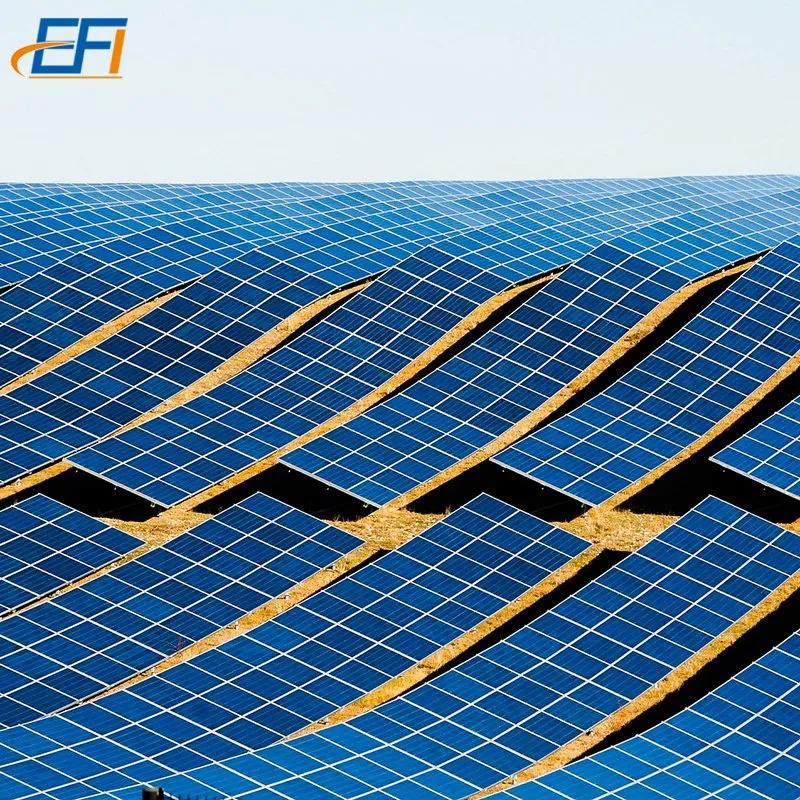

Tracking System View 2

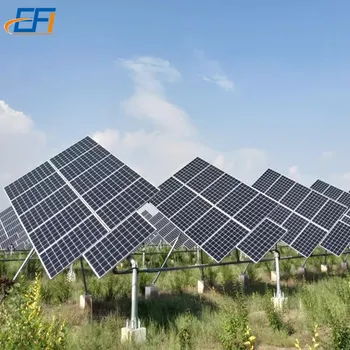

Tracking System View 3

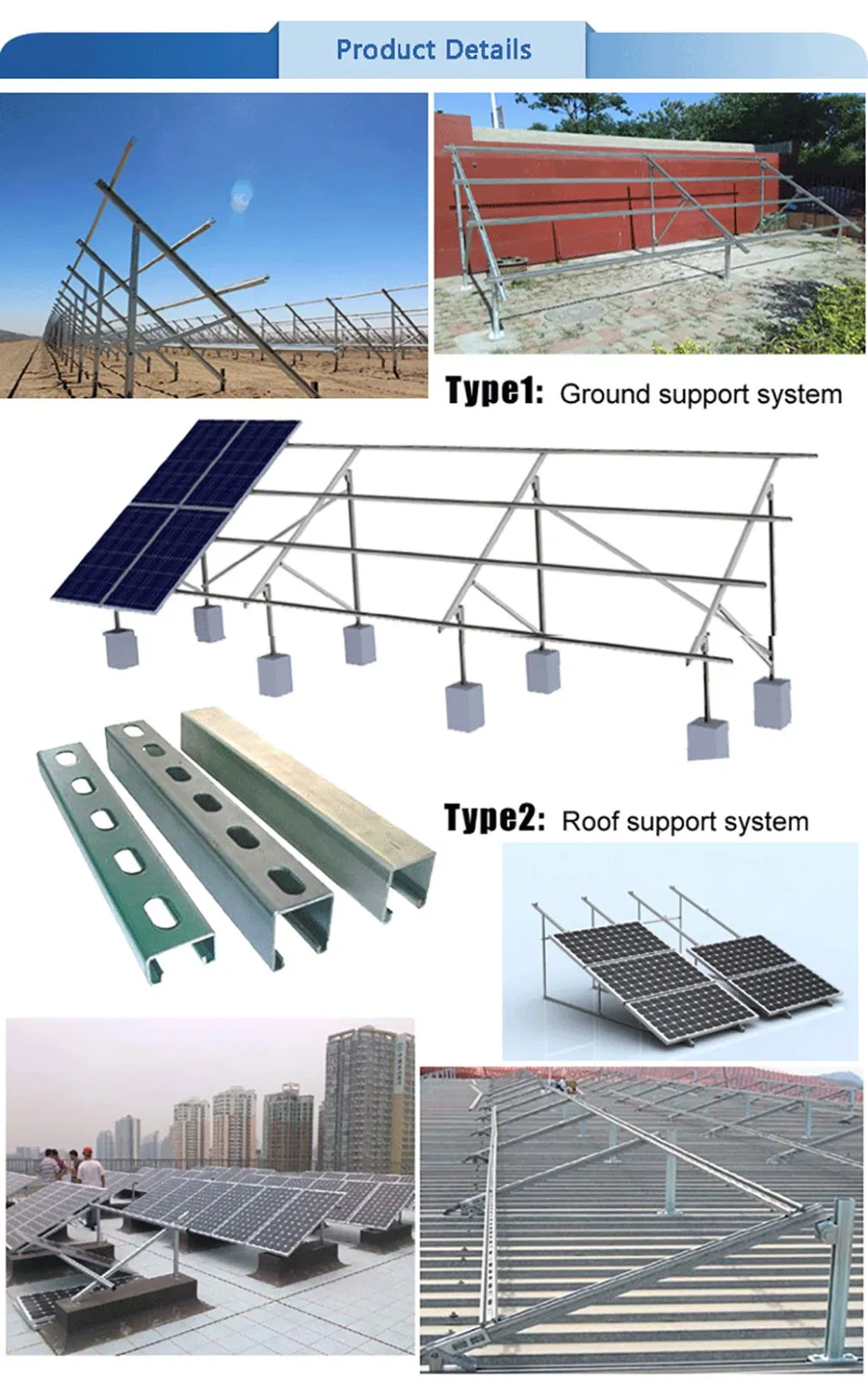

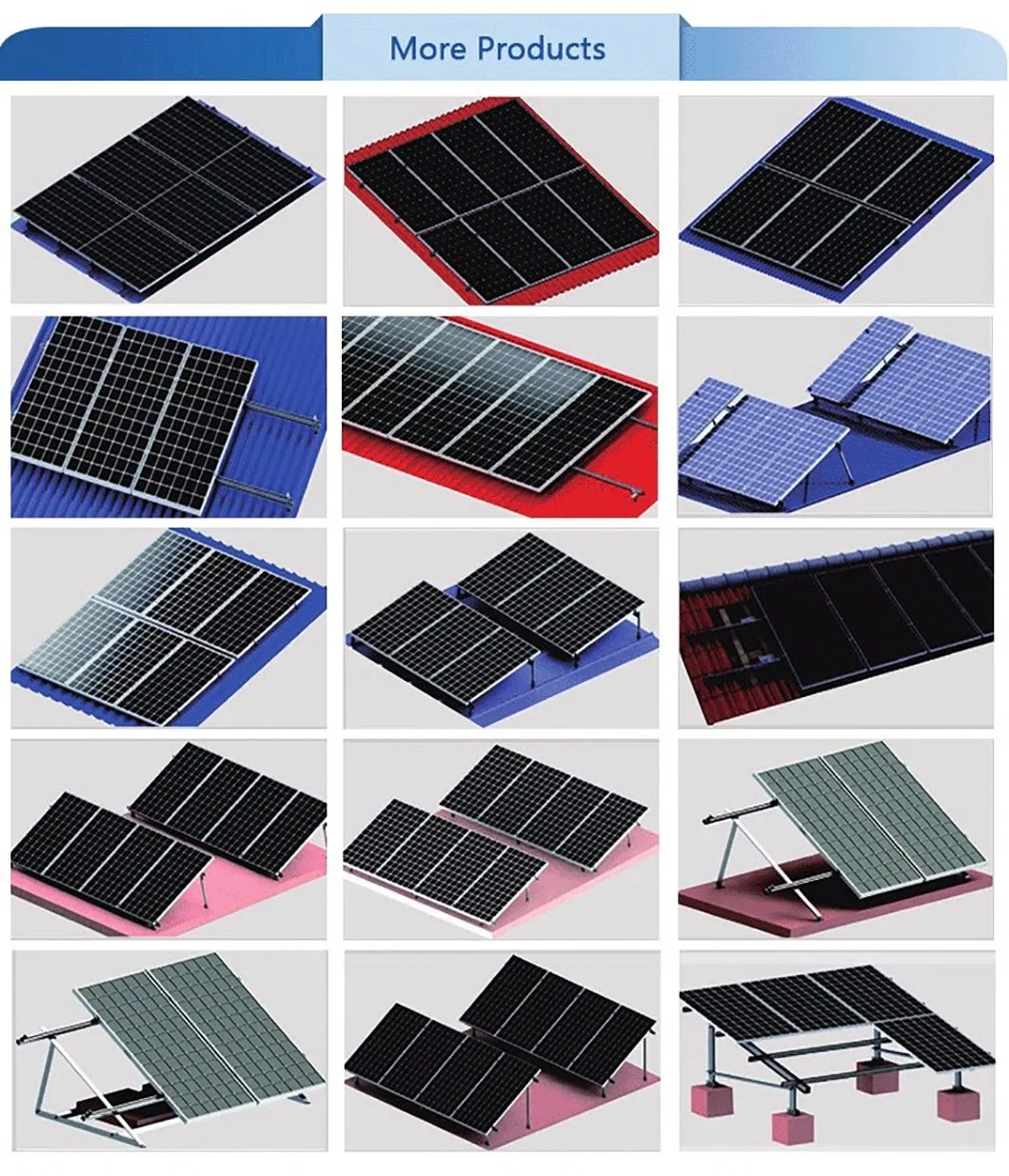

Technical Layout 1 Technical Layout 2 Technical Layout 3 Technical Layout 4 Technical Layout 5
?

Frequently Asked Questions

What materials are used for the solar tracking mounting?
The system utilizes high-quality Aluminum 6063, Hot Dipped Galvanized (HDG) Steel, and Stainless Steel 304 for maximum durability and corrosion resistance.
What is the maximum wind and snow load the system can handle?
The system is engineered to withstand wind loads up to 150 Km/H and snow loads up to 1.4kn/M2, ensuring stability in various weather conditions.
Is the mounting system customizable?
Yes, the dimensions and lengths can be customized according to specific client requirements and project needs.
What is the expected service life and warranty?
We offer a 10-year warranty, and the system is designed for a service life of approximately 25 years.
Which applications are suitable for this single axis tracking system?
It is ideal for a wide range of applications including residential, industrial, and commercial solar stations, solar farms, and solar parks.
What types of foundations are supported?
The system supports multiple styles including Single Pole, Double Poles, Concrete Foundations, and Ground Screws.
