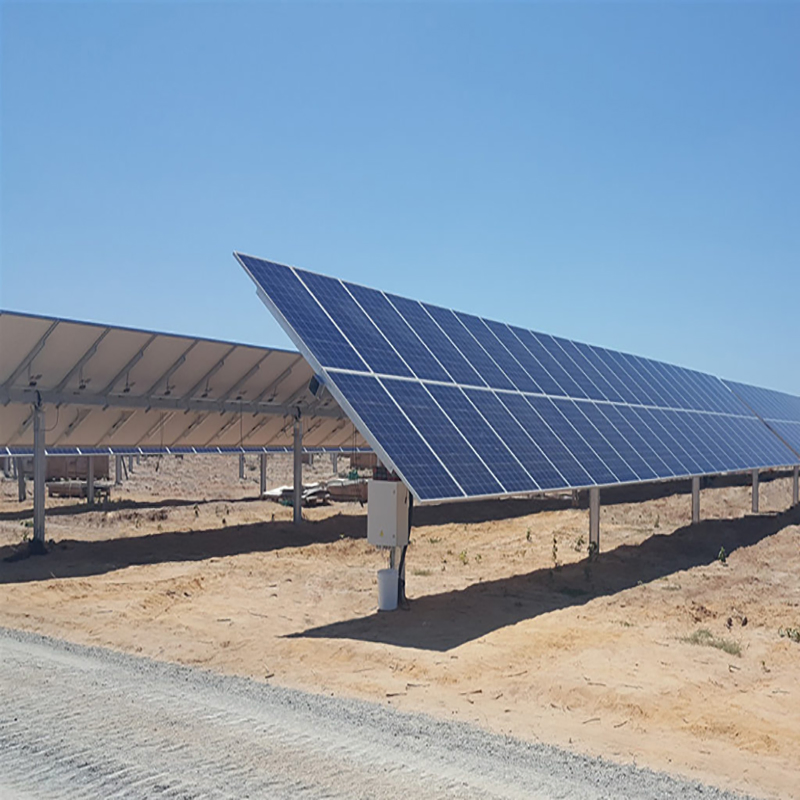

Power Efficiency Improved Horizontal Single Axis Solar Tracker Solar PV Tracking System
Power Efficiency Improved Horizontal Single Axis Solar Tracker Solar PV Tracking System
Power Efficiency Improved Horizontal Single Axis Solar Tracker Solar PV Tracking System
Power Efficiency Improved Horizontal Single Axis Solar Tracker Solar PV Tracking System
Power Efficiency Improved Horizontal Single Axis Solar Tracker Solar PV Tracking System
1 / 5
Power Efficiency Improved Horizontal Single Axis Solar Tracker Solar PV Tracking System
Power Efficiency Improved Horizontal Single Axis Solar Tracker Solar PV Tracking System
Power Efficiency Improved Horizontal Single Axis Solar Tracker Solar PV Tracking System
Power Efficiency Improved Horizontal Single Axis Solar Tracker Solar PV Tracking System
Power Efficiency Improved Horizontal Single Axis Solar Tracker Solar PV Tracking System

Power Efficiency Improved Horizontal Single Axis Solar Tracker Solar PV Tracking System

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

Overview & Basic Specifications
ModelSAST
Product NameSingle Axis Solar Tracker
CertificationISO, TUV, CE
ApplicationIndustrial
MaterialStainless Steel / Galvanized Steel
Module Size1650*992*40mm
Protection LevelIP65
Power Supply110V / 220V
Daily Consumption<0.25~1kwh
CommunicationRS485 / Bluetooth
Technical Parameters
Tracker Structure Tracking Controller
Solar Panel Type 1650*992*35mm (78 Cells) Controller Type MCU (32bit)
Number of Panels 60 PCS Control Algorithm Astronomical + Closed Loop
Ground Clearance 400 mm Tracking Accuracy ≤±2°
Safe Wind Speed 17 m/s Survival Wind Speed 37m/s (Customizable to 60m/s)
Snow Load 0.2~0.8KN/m2 Working Temp -30ºC to +70ºC
Azimuth Range (X) -45° to +45° Azimuth Range (Y) -60° to +60°
Drive Device Slewing + Linear Drive Drive Power 90~180W
Detailed Product Display

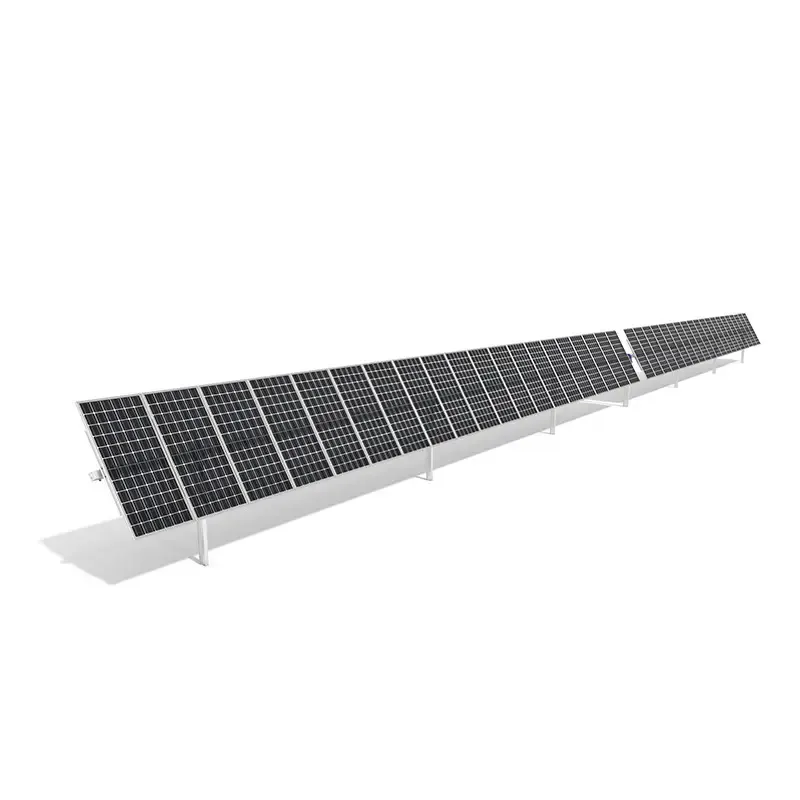

Solar Tracker Detail 1

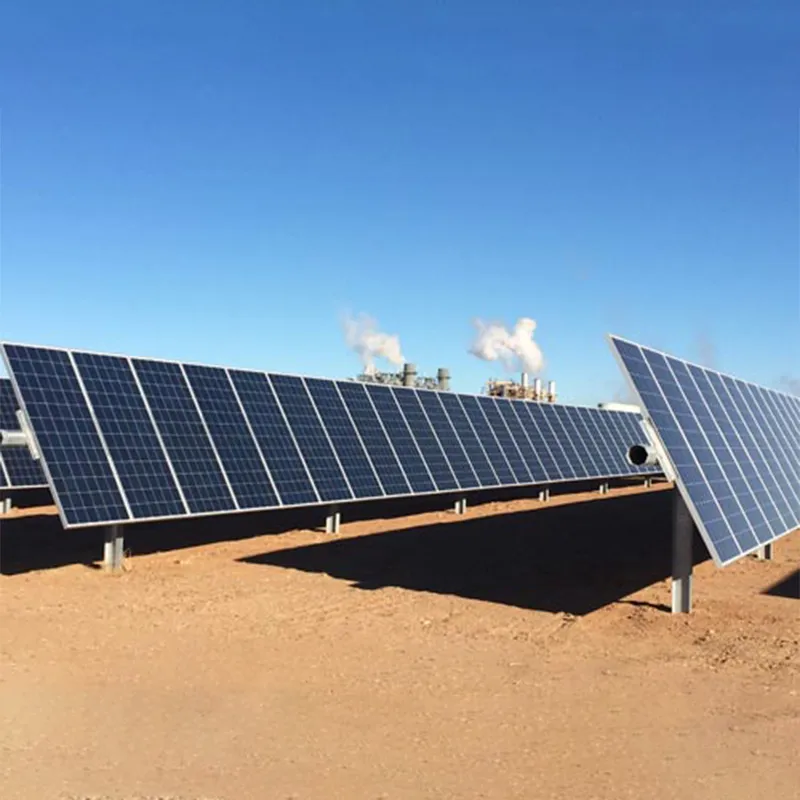

Solar Tracker Detail 2

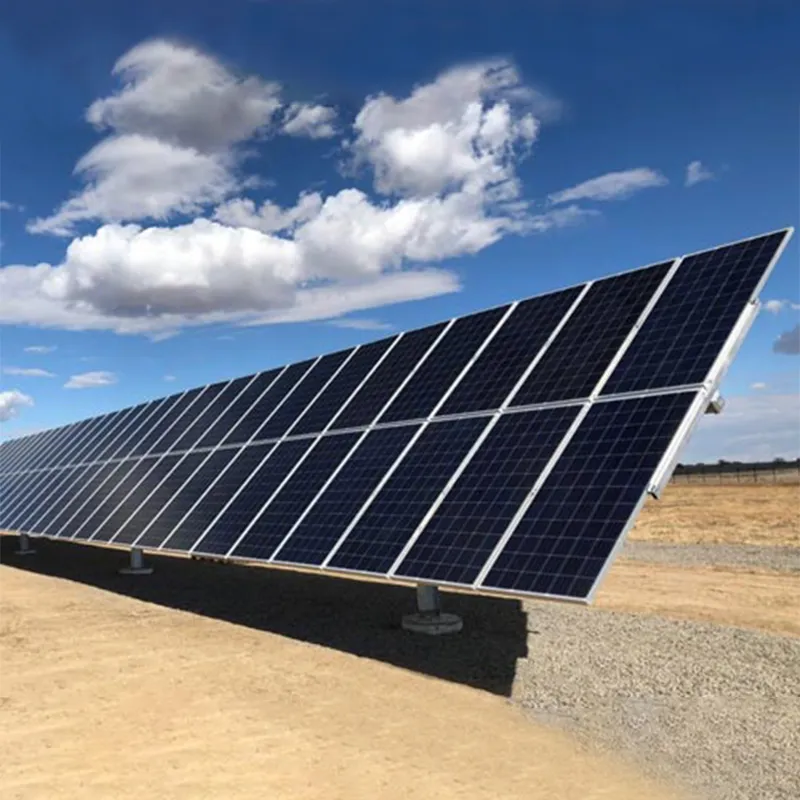

Solar Tracker Detail 3

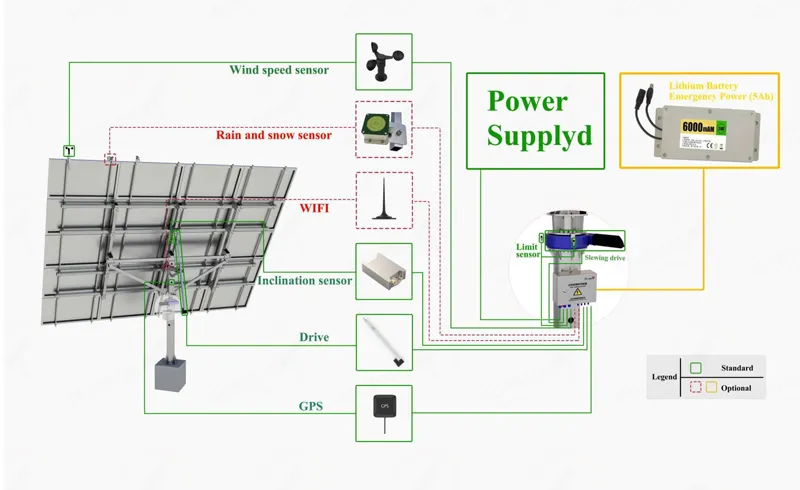

Tracker Mechanism
Application Areas

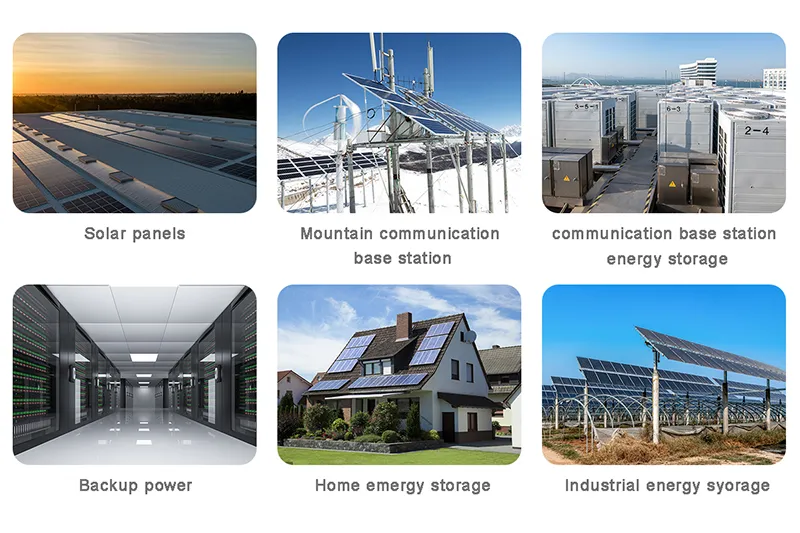

Application Area
Global Project Cases

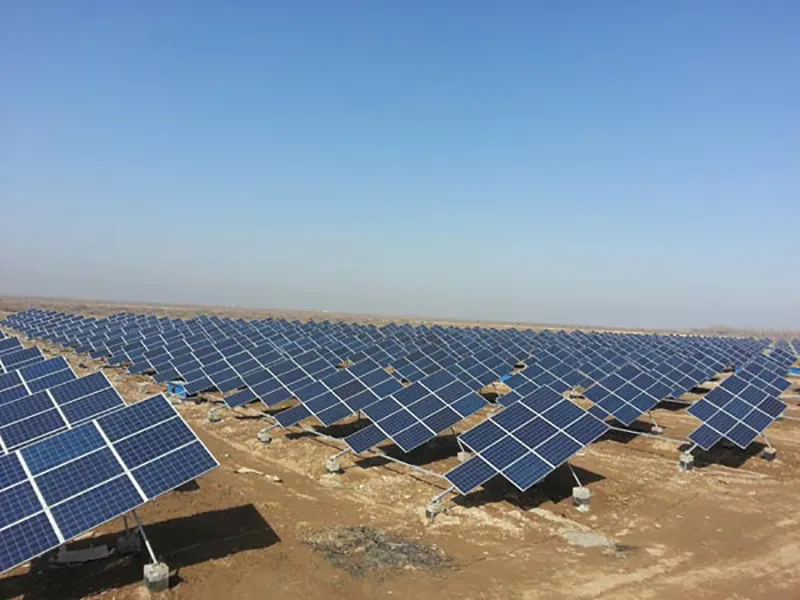

Project Case 1

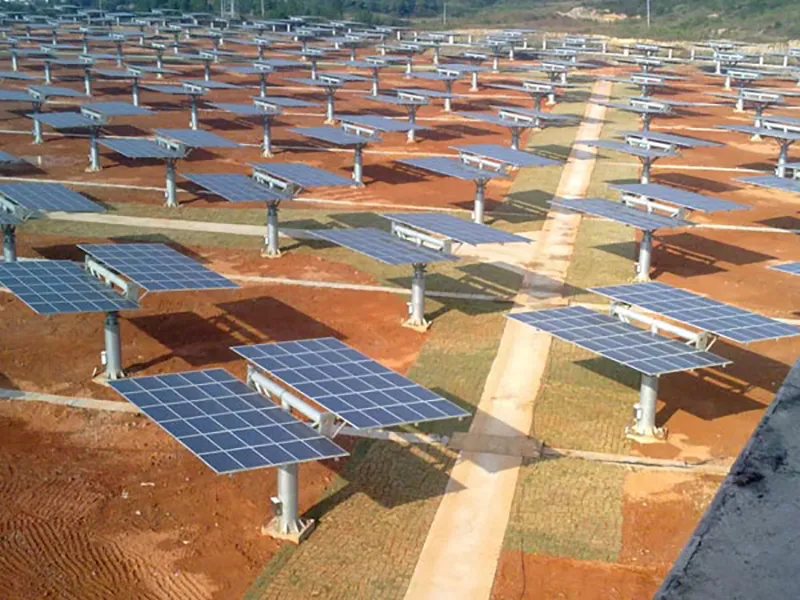

Project Case 2

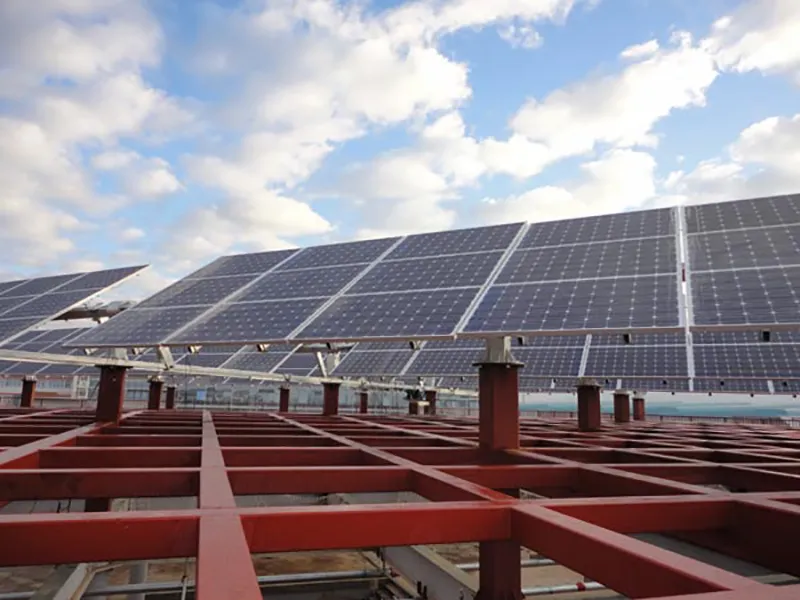

Project Case 3

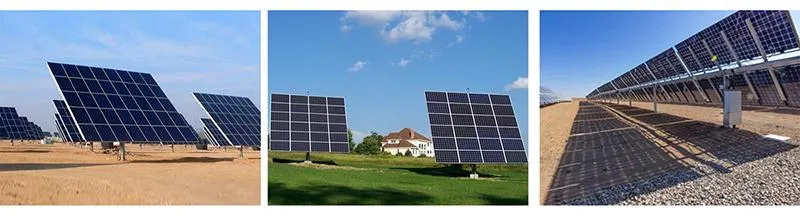

Project Overview
Production & Quality Assurance
Factory 1

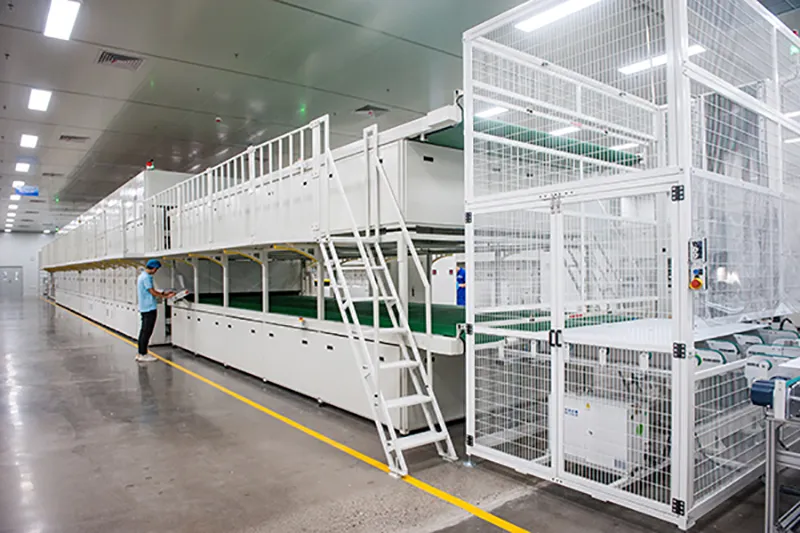

Factory 2

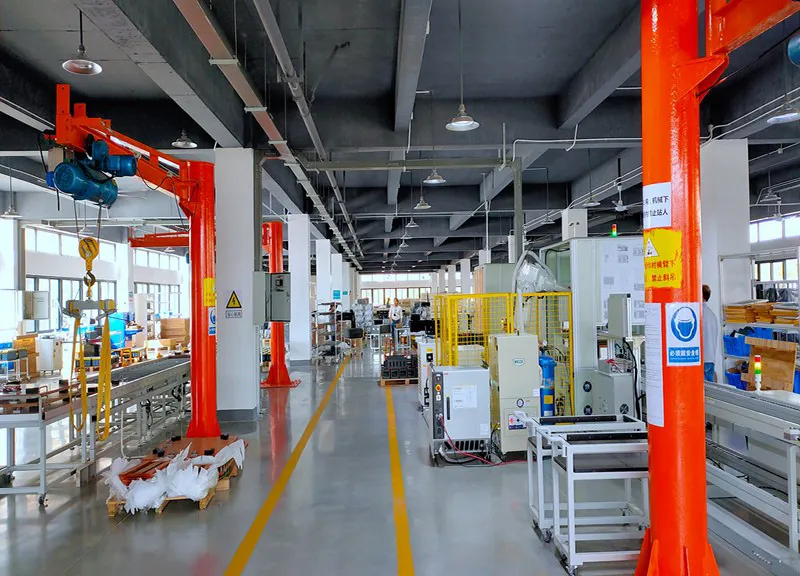

Factory 3

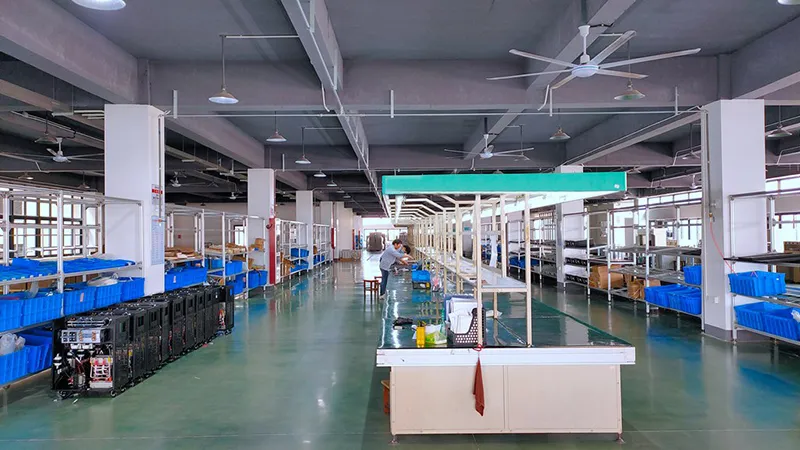

Manufacturing
Certifications
Frequently Asked Questions
1. What is the tracking accuracy of this solar tracker?
The system features a high-precision tracking accuracy of ≤±2° utilizing an Astronomical Algorithm and Position Sensor Closed Loop Control.
2. How does the system handle extreme weather like high winds?
The SAST model has a safe working wind speed of 17 m/s and a survival wind speed of 37 m/s, which can be customized up to 60 m/s for high-wind areas.
3. What are the material specifications for durability?
The bracket is made from Hot-Dip Galvanized Steel (Q235B / Q355B) with a galvanizing thickness of >85um, and fasteners are made of 304 Stainless Steel for a mechanical life of over 25 years.
4. Does the tracker include a night mode or snow removal?
Yes, the system includes a Night Return Mode and optional functions for Heavy Rain Self-Cleaning and Snow Removal Mode.
5. What communication protocols are supported for remote monitoring?
The system supports RS485 as standard, with local Bluetooth connectivity and optional 4G or WIFI modules for remote network management.
6. What is the power consumption of the tracking system?
The daily power consumption is very efficient, typically less than 0.25 to 1 kWh, with a driving power requirement between 90W and 180W.
