Single Axis Solar Tracker With Slew Drive
The solar tracking system is designed to optimize the use of sunlight during the process of solar thermal and photovoltaic power generation, significantly improving the efficiency of photoelectric conversion.

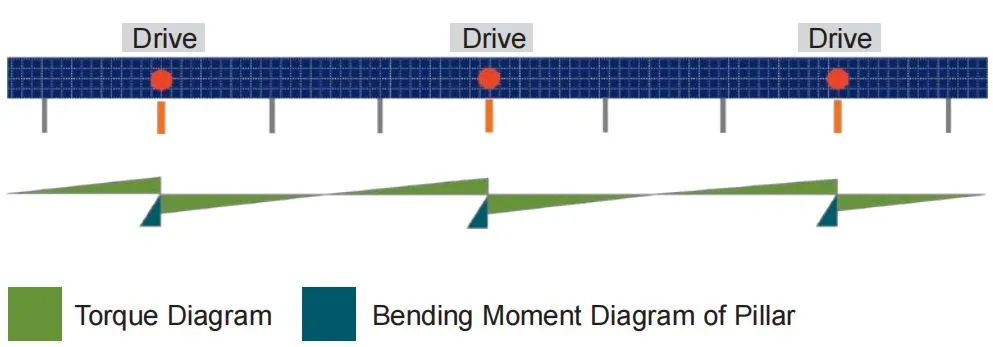

This multi-drive double portrait horizontal single-axis solar tracker adopts a multi-actuator drive mode. The system is quick and easy to install and operate, offering a stable and reliable solution suitable for a variety of large-scale solar power stations.
| PV-Modules | |
| PV- Modules supported | Fully fit for 210 module |
| Structure | |
| System type | One portrait horizontal single-axis tracker |
| Maximum capacity per row | 72kWp (Estimated with 600W PV-Modules) |
| Tracking Range | ±60° (Customized according to project) |
| Tracking accuracy | ±1° |
| Structural Materials | HDG Steel, Al-Mg-Zn Coating Steel |

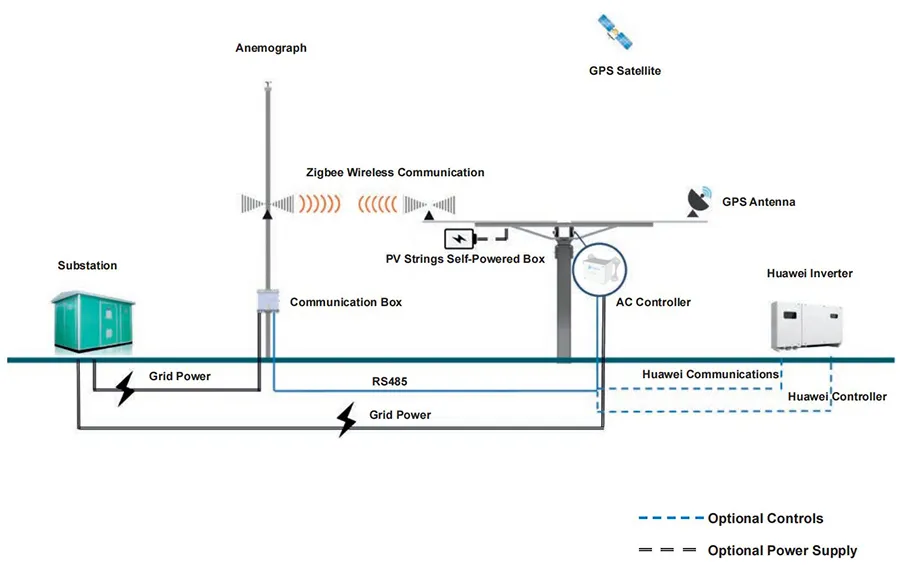

| Electrical & Control | |

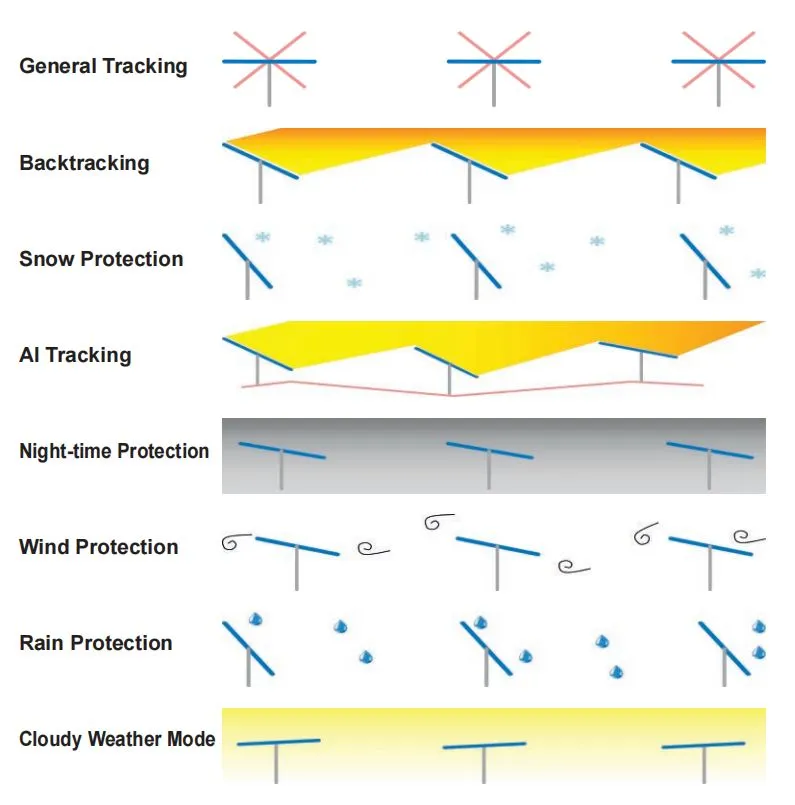

| Solar tracking method | Astronomical algorithm + closed-loop control (AI) |
| Control system | MCU |
| Drive method | Slew Drive |
| Motor Type | 24V DC Motor |
| Environment | |
| Wind load | Customized according to local condition |
| Operating temperature | -30°C ~ +60°C |

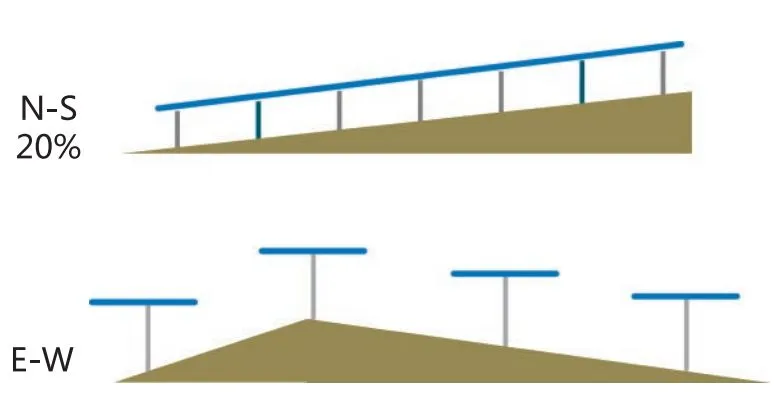

| Slope tolerance | North-south 10%~20%, East-west no limits |

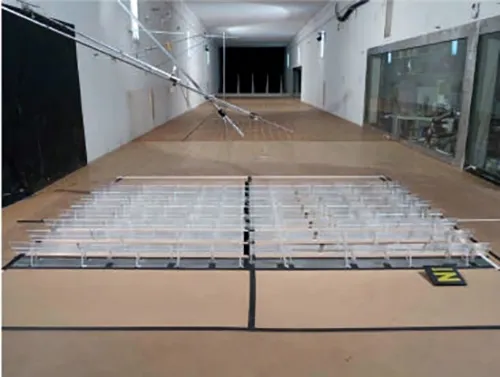

Partnering with leading wind engineering services, the system has undergone rigorous CPP Wind Tunnel Tests to study resonance, flutter, and torsional divergence caused by aerodynamics.
Established in 2016, we are a high-tech enterprise integrating R&D, production, and marketing of Solar Mounting Systems. We provide solutions for residential, commercial, and utility-scale customers globally.
