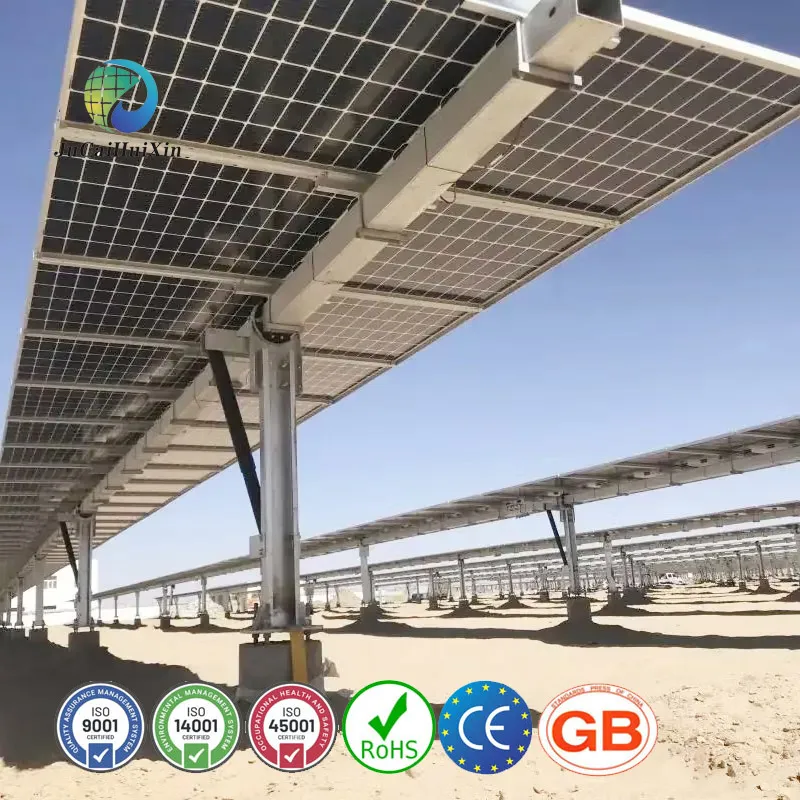

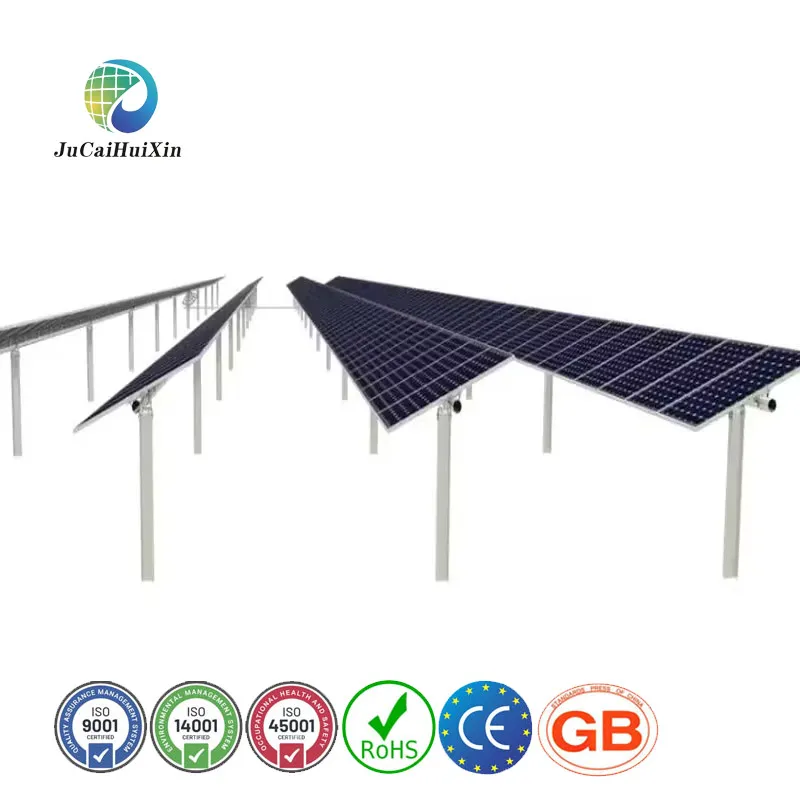

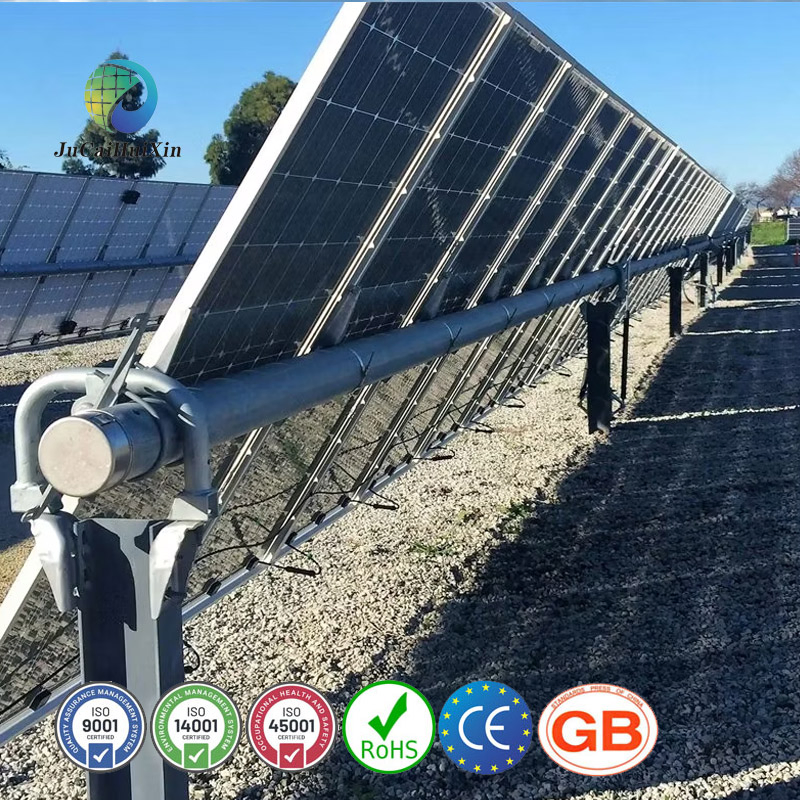

OEM HDG Steel Bracket Solar Tracking System with Single Axis Design

Basic Specifications

Model NO.	Tracking bracket-01	Certification	GB, ISO, CE, RoHS
Material	Steel	Type	Ground Bracket

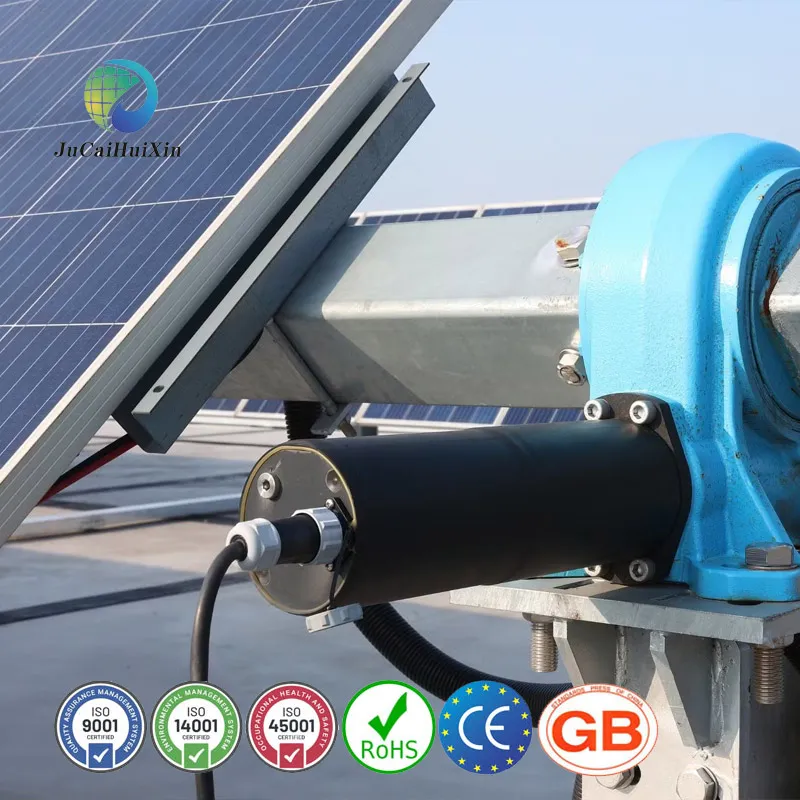

System Type	2~5rows Linked Type/Independent Type	Motor	DC24vgear Motor/1.5ax1
Max.Wind Speed (Operation)	24m/S	Max. Wind Speed (Horizontal)	37m/S
Rust Protection	Hot-Dipped Galvanized Steel	Operation Temperature	-40°℃ ~ +75℃
Control Model	Astronomical Algorithms + Tilt Sensor	Tracking Accuracy	≤2° (Configurable)
IP Protection	IP66	Production Capacity	100,000 Tons / Year

Product Description

💡

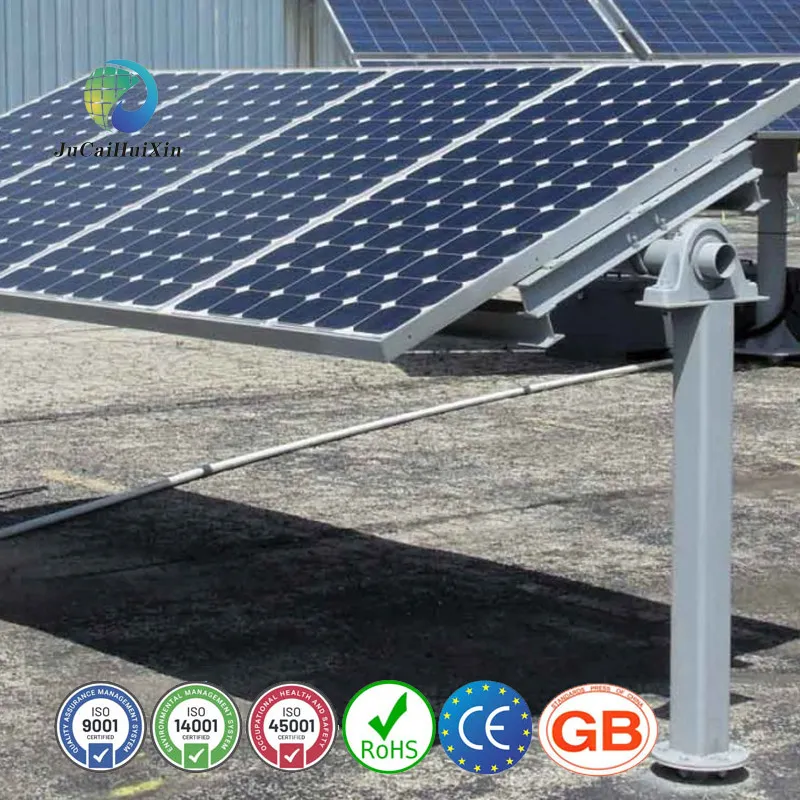

The OEM HDG Steel Bracket Solar Tracking System is a customizable, heavy-duty solar mounting solution engineered for high-efficiency energy generation and long-term durability. Featuring a hot-dip galvanized (HDG) steel frame and automated single-axis tracking technology, this system adjusts solar panels to follow the sun's trajectory, increasing energy output by 18%-30% compared to fixed mounts.

Parameter	Details
System type	Independent Drive
NO.of Panel	2-10 Piece(≤23 sq.m.)
Power Consumption	5.0Kwh/set/year
Max. wind speed in running	24 m/s
Rust protection	Hot-dipped galvanized/superdyma
Azimuth angle tracking range	±45ºC
Control model	Time + GPS Control

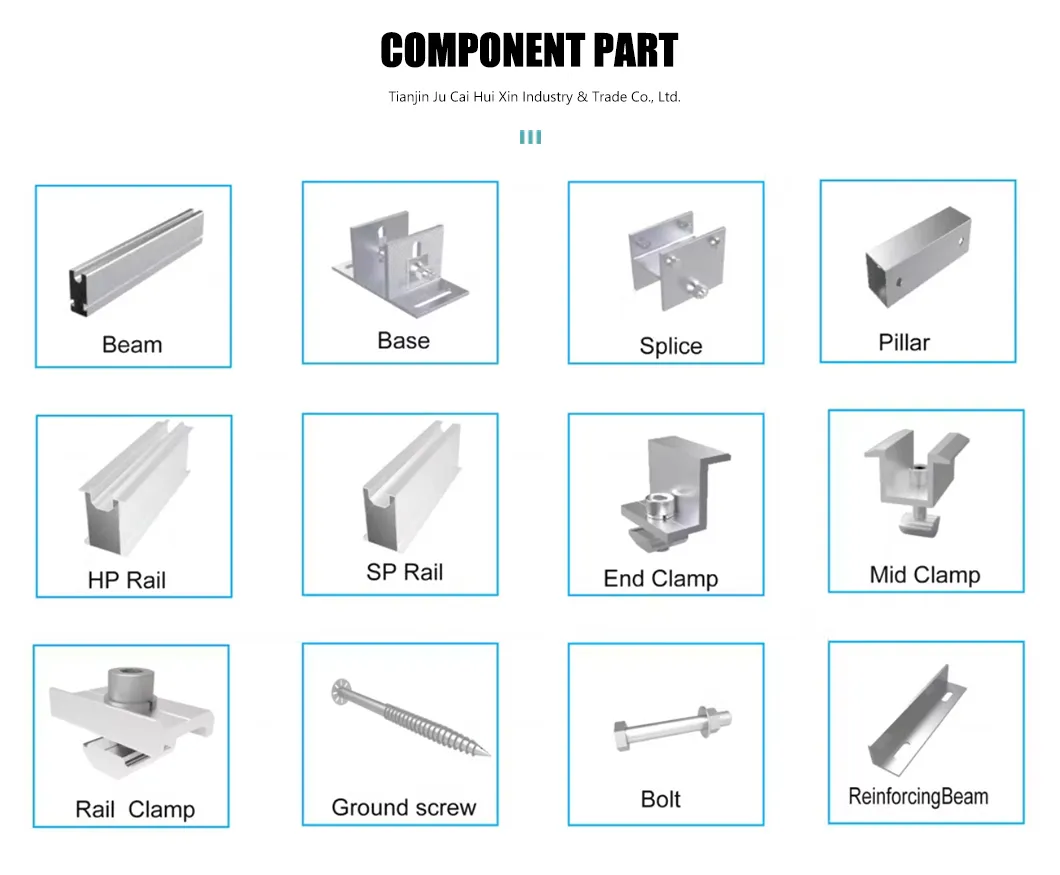

System Components & Features

Installation & Applications

🛠️

Key Benefits

OEM Customization: Tailor dimensions and load capacity up to 1,000kg.
HDG Steel Durability: Zinc layer ≥85μm resists corrosion for 25+ years.
Single-Axis Efficiency: Boosts daily energy yield by 20%-35%.
Low Maintenance: IP67-rated motors and self-lubricating bearings.

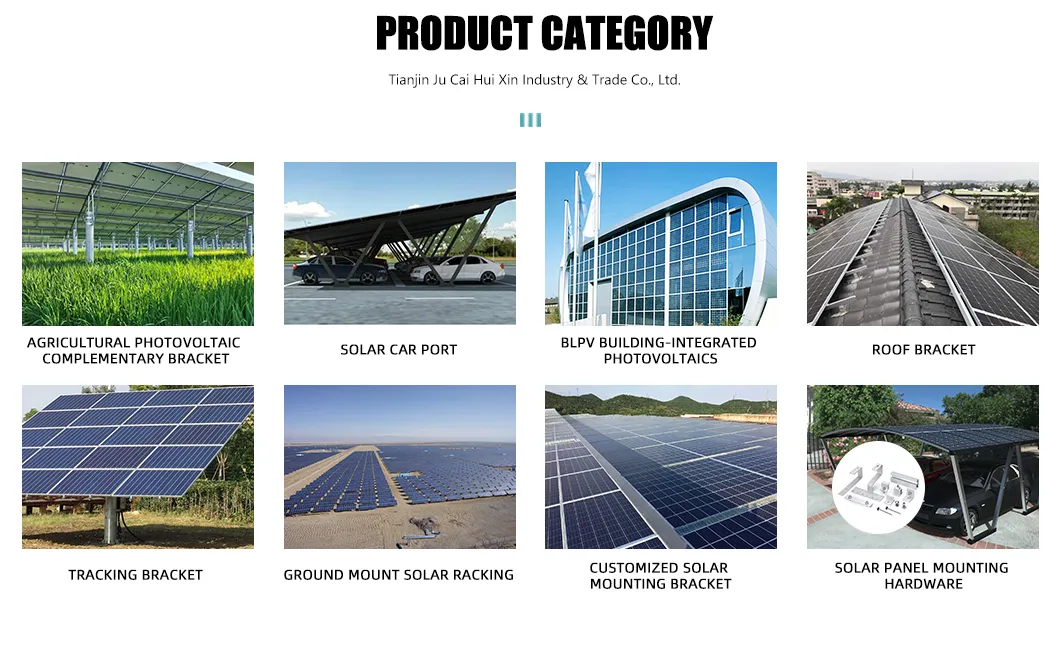

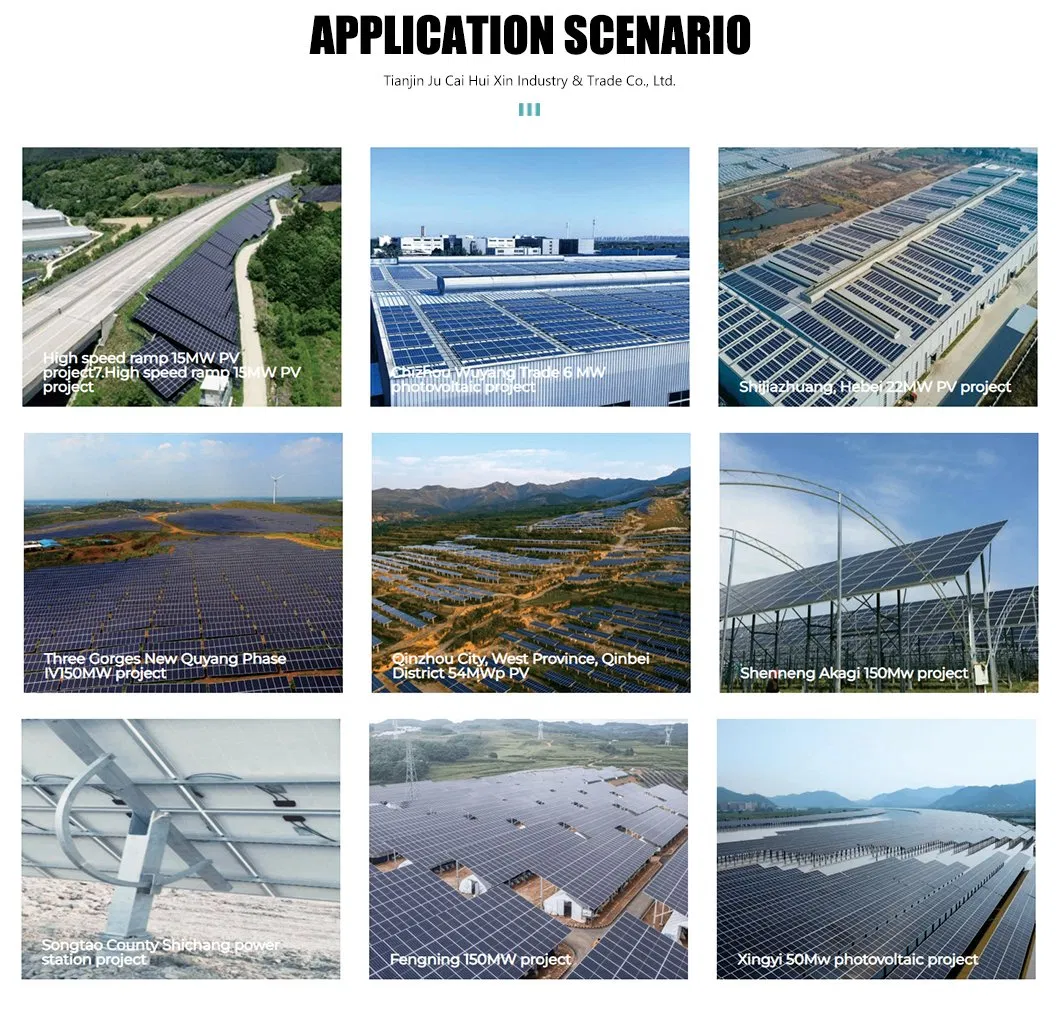

Main Applications

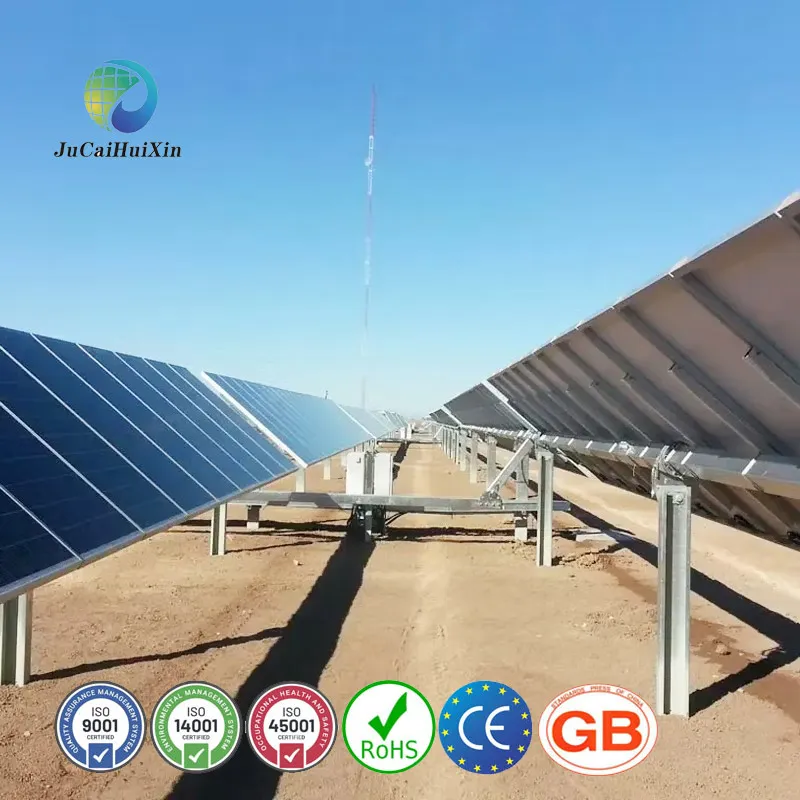

Utility-Scale Solar Farms: Maximize land use efficiency.
Agricultural Solar: Compatible with agrivoltaic setups.
Industrial Rooftops: Reinforced design for factories and warehouses.
Mining & Remote Sites: Reliable off-grid power for harsh environments.

Manufacturing & Logistics

Frequently Asked Questions

Q1: What customization options are available for OEM partners? A: We offer customization for dimensions, logos, colors, load capacity (500-1,500kg), and specialized packaging to meet project-specific requirements.

Q2: Why choose HDG steel over aluminum or stainless steel? A: Hot-Dip Galvanized (HDG) steel offers superior corrosion resistance at a more competitive cost, making it ideal for high-humidity, coastal, or industrial environments.

Q3: Can the system withstand extreme weather conditions? A: Yes. The system includes a storm-lock mode that can resist winds up to 100 mph (44.7m/s) by tilting panels to a 0° horizontal position automatically.

Q4: How long does the installation process typically take? A: For a 1MW system, a standard 10-person team can complete the assembly in approximately 2-3 weeks, assuming the foundations are already prepared.

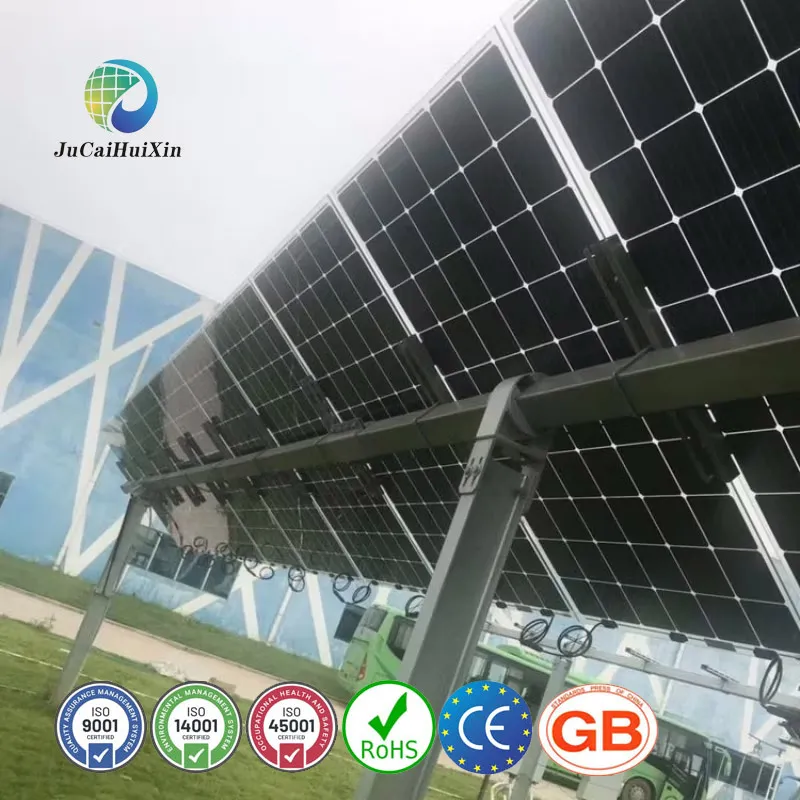

Q5: Is this tracking system compatible with bifacial solar panels? A: Absolutely. The adjustable height and optimized row spacing are specifically designed to enhance rear-side light absorption for bifacial modules.

Q6: What are the typical energy gains compared to fixed mounts? A: Depending on the location, our automated single-axis tracking system typically increases total daily energy yield by 20% to 35% over fixed-tilt systems.
