Overview & Basic Info.
Model NO.
Single-axis Bracket-005
Certification
GB, ISO, CE, RoHS
System Type
2~5rows Linked Type/Independent Type
Tracking Accuracy
≤2°(Configurable)
Protection
IP66 / Hot-Dipped Galvanized
Product Description

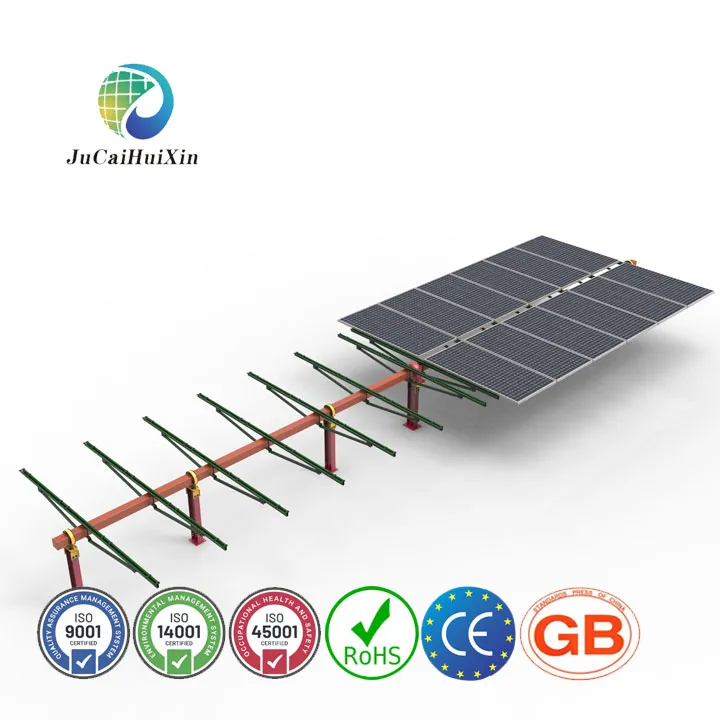

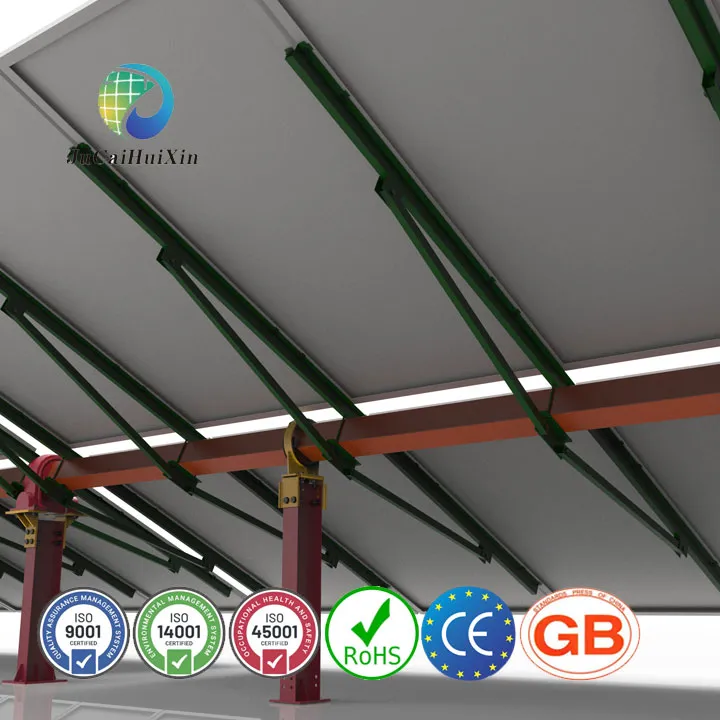

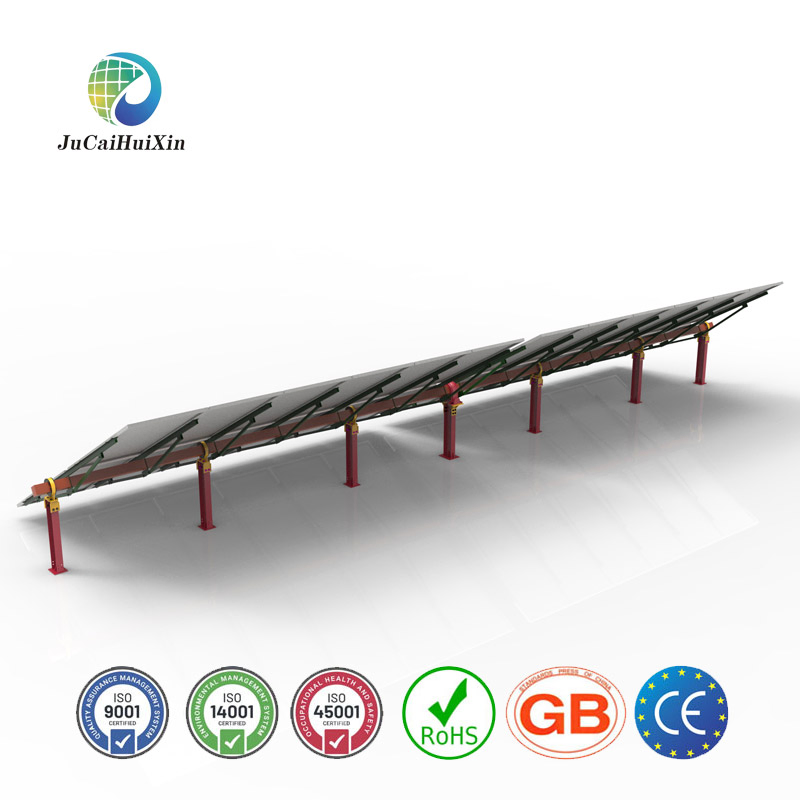

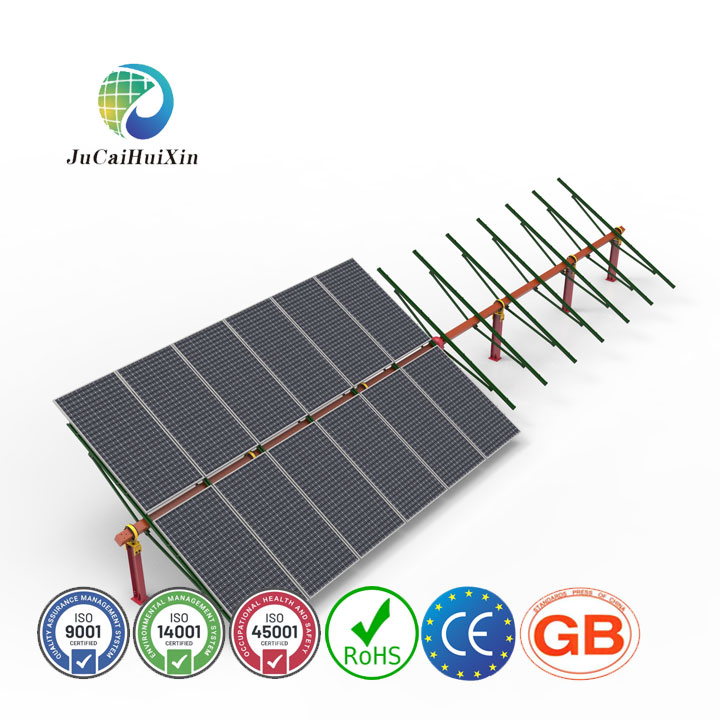

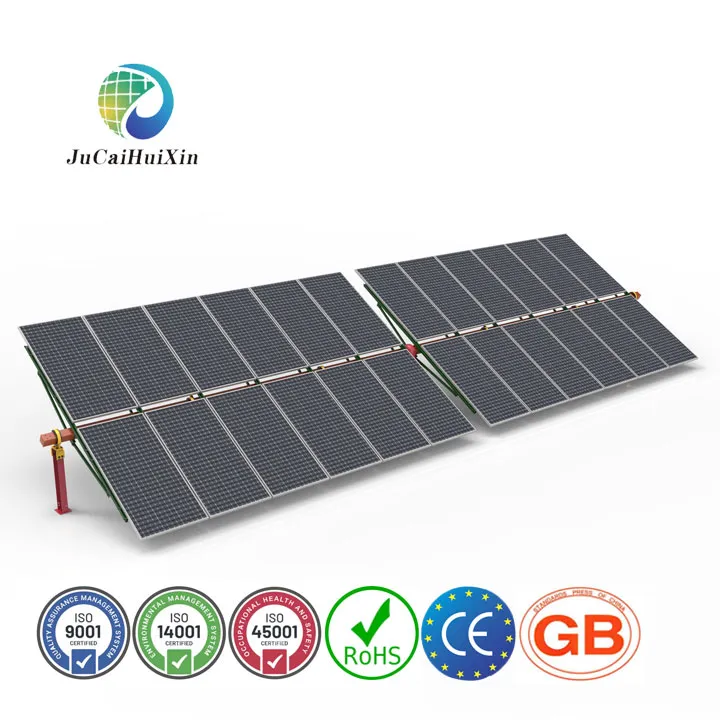

Professional Ground Painted Single Axis Design Support Solar Tracking System
Our Solar Tracking System with Single Axis Design is easy to install and ensures optimal performance for your solar panels. The sturdy construction of this Single-Axis PV Bracket guarantees durability and long-term reliability, making it a cost-effective choice for your solar energy needs.
| System type | Independent Drive |
| NO.of Panel | 2-10 Piece(≤23 sq.m.) |
| Power Consumption | 5.0Kwh/set/year |
| Max. wind speed in running | 24 m/s |
| Max. wind speed in flat | 40 m/s |
| Control model | Time + GPS Control |
| Tracking accuracy | 0.1°-2°(Adjustable) |
Core Advantages
1
Professional ground adaptation design: Heavy-duty Q345B high-strength steel, wind load 65m/s, complex terrain compatibility (helical/concrete pile).
2
Excellent anti-corrosion performance: C5M grade, hot-dip galvanized (≥65μm), UV aging resistant, life expectancy ≥ 35 years.
3
Intelligent single-axis tracking technology: AI light-sensing algorithm, ±45° adjustment, increases power generation by over 30%.
4
Efficient installation and maintenance: Modular design reduces on-site assembly time by 60%, self-lubricating bearings.
Installation and Maintenance Guide
Installation Steps:
- Foundation survey: Use laser level (error ≤ 2°).
- Modular assembly: Bolt fastening torque 75N-m±5%.
- System intermodulation: Connect PLC controller, test high wind reset response.
Maintenance Recommendations:
- Monthly inspection: Clean debris, check coating scratches.
- Annual maintenance: Replace drive bearings, update control software.
Typical Application Scenarios
- Large-scale ground power stations: Desert, Gobi, and mudflats.
- Industrial area distributed generation: Chemical plants and refineries.
- Agricultural PV systems: Adjustable height (2m-4m) for crop compatibility.
- Coastal/Island PV: Salt spray corrosion resistant design.
Packaging & Shipping
Package Size
25.00cm * 20.00cm * 27.00cm
Frequently Asked Questions
Q1: How does the coating process cope with extreme climate?
A: Hot-dip galvanised layer combined with polyurethane topcoat, temperature resistance range -40ºC~85ºC, UV aging resistance passed ASTM G154 test.
Q2: Does the system support PERC/HJT/Calcitonite modules?
A: Fully compatible! The maximum module size is 2384×1303mm, and the rail spacing can be adjusted to 30-60mm.
Q3: How long is the anti-corrosion life in acid rain areas (pH 4)?
A: Fluorocarbon topcoat is acid and alkali resistant. Lab tests show coating life is ≥25 years in pH 4 environments without red rust.
Q4: What is the delivery cycle of a 100MW project?
A: Standardised production + regional warehousing, 100MW projects take approximately 10-14 weeks from order to grid connection.
Q5: What are the warranty and after-sales service terms?
A: We offer a 20-year warranty on the main structure, a 10-year warranty on the drive system, and 72-hour global emergency response.
Q6: Is maintenance difficult for large scale installations?
A: No, the system features modular pre-assembly and self-lubricating bearings, keeping O&M costs below 0.3% of the power generation gain.
