The solar tracking system is an advanced solution that optimizes the use of sunlight during the process of solar thermal and photovoltaic power generation to improve the efficiency of photoelectric conversion significantly.

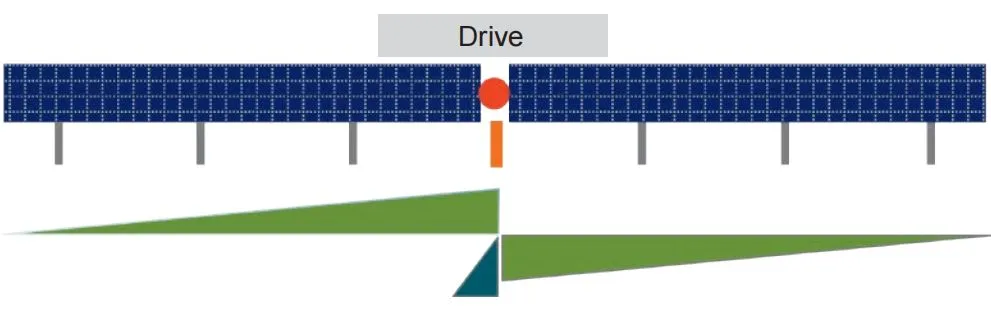

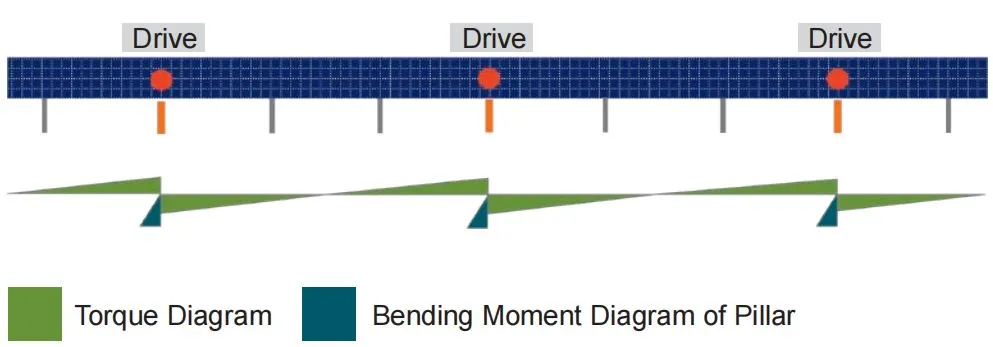

The Multi-drive double portrait horizontal single-axis solar tracker adopts a multi-actuator drive mode. This tracker system is quick and easy to install and operate, offering a stable and reliable system suitable for various large-scale solar power stations.
| Structure & Performance | |
|---|---|
| System Type | One portrait horizontal single-axis tracker |
| Maximum Capacity per Row | 72kWp (Estimated with 600W PV-Modules) |
| Tracking Range | ±60° (Customized) |
| Tracking Accuracy | ±1° |
| Structural Materials | HDG Steel, Al-Mg-Zn Coating Steel |

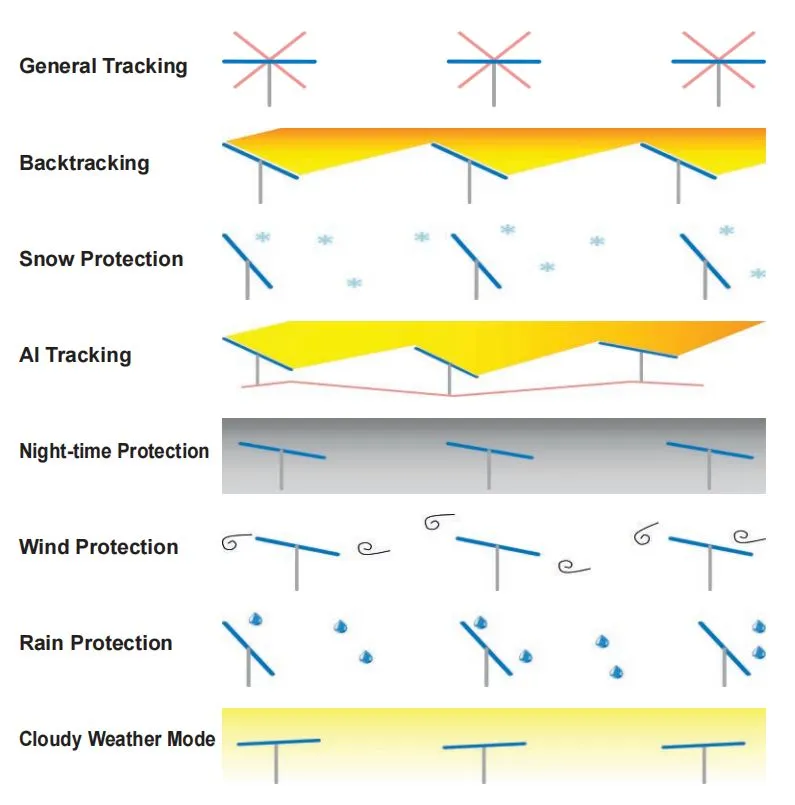

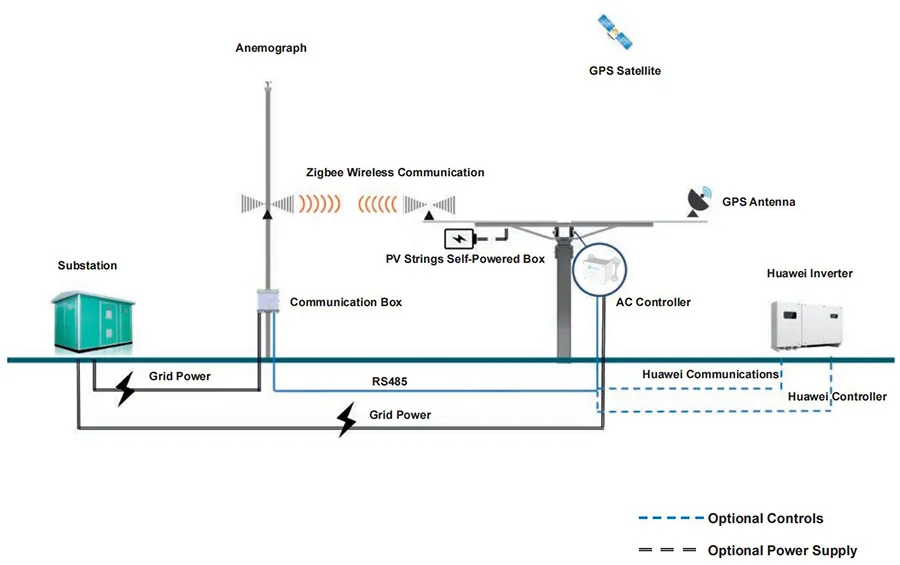

| Solar Tracking Method | Astronomical algorithm + closed-loop control (AI) |
| Drive Method | Slew Drive |
| Wind Protection | ≥18m/s |
| Operating Temperature | -30°C ~ +60°C |

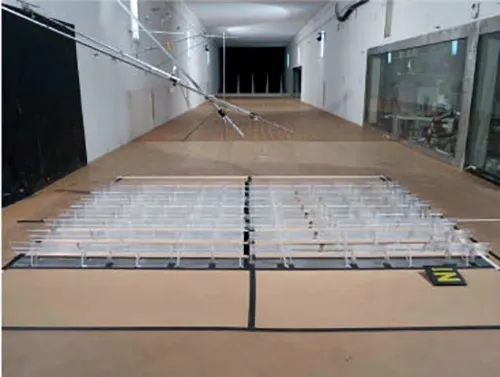

Our tracking systems undergo rigorous wind engineering analysis. By studying resonance, flutter, gallop, and torsional divergence caused by aerodynamics, we ensure the stability and safety of the system under extreme conditions.

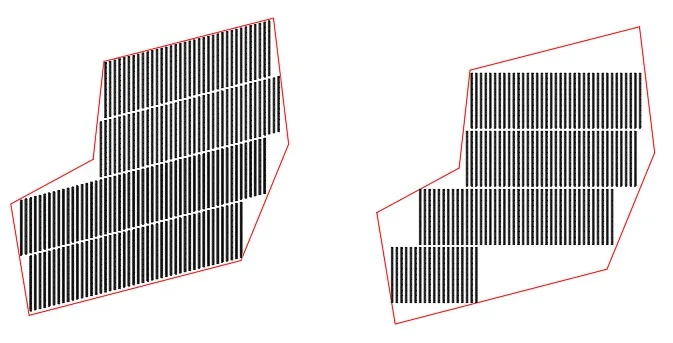

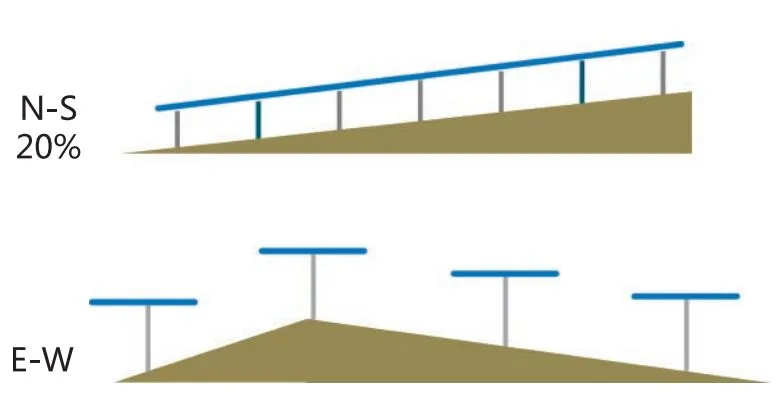

Flexible layout capabilities allow for full use of irregular land, significantly improving land utilization rates.

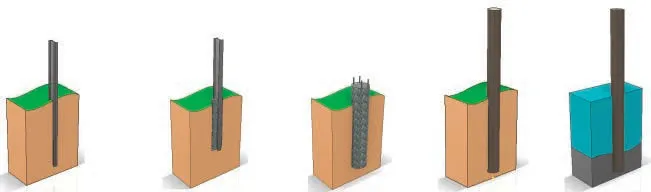

| Foundation Type | Application | Connection |
|---|---|---|
| Steel Piles | Soft Ground | Direct Ramming |
| Concrete + Steel | Soft Ground | Ramming + Concrete |
| Poured Concrete | Gravel Ground | Anchor Bolt |
| PHC Piles | Agriculture / Fishery PV | Pile-Top Welding |
The manufacturer is a high-tech enterprise that integrates R&D, production, and marketing of Solar Mounting Systems for residential, commercial, and utility-scale customers worldwide.
