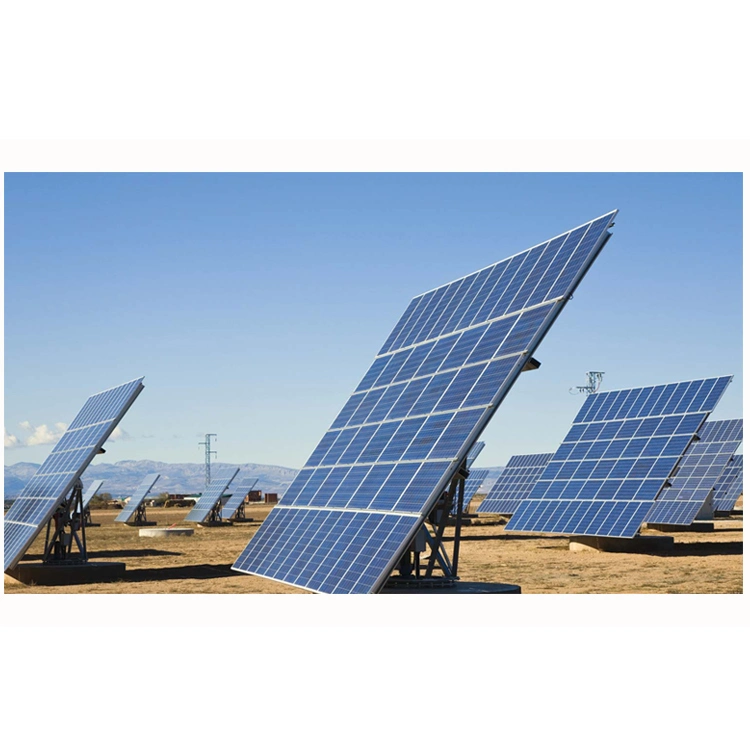

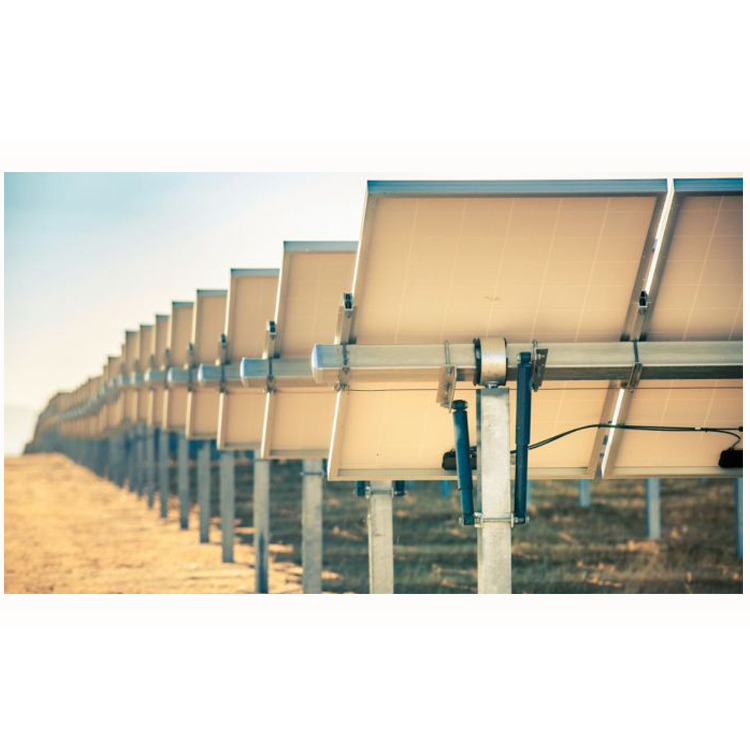

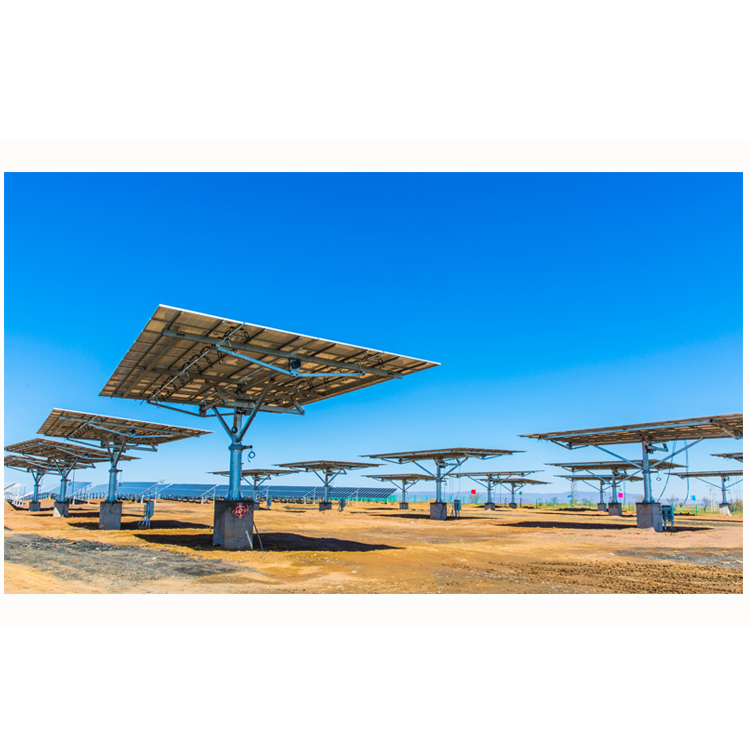

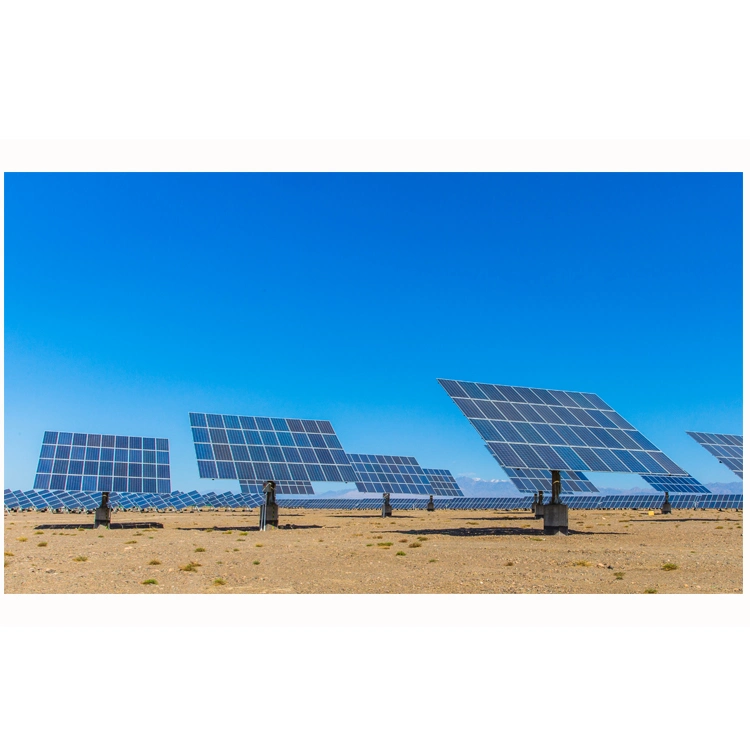

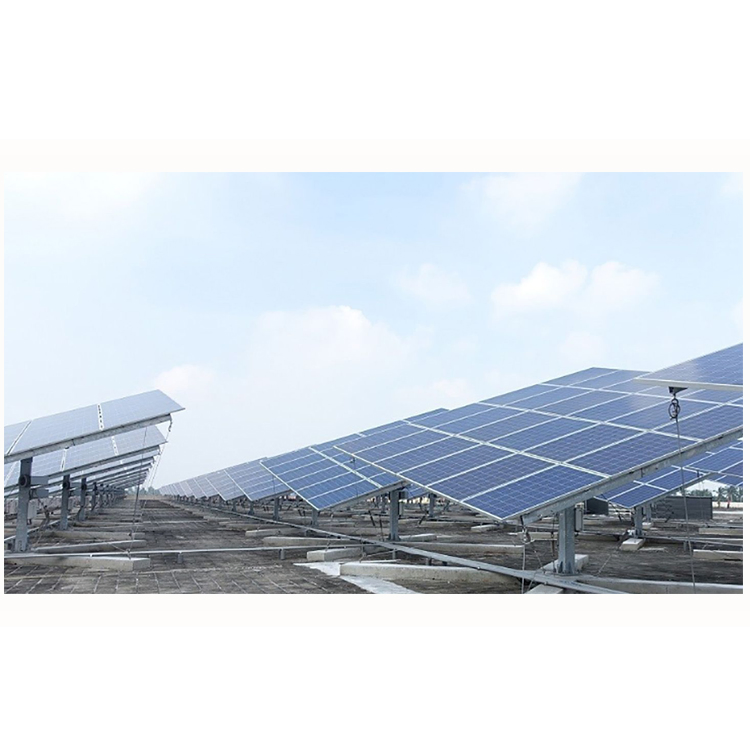

Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
1 / 5
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis

Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis

Customization: Available
Certification: ISO9001
Wind Load: up to 60m/S, up to 60m/S
Send Inquiry

Product Description

i

Basic Information

Model NO.
SF-ST001
Working Temp
-30°C~65°C
Snow Load
1.4kn/M2
Type
PV System Tracking Structure
Warranty
10 Years (25 Years Service Life)
Material
Anodized Aluminum
Tracking Range
X-Axis ±120°, Y-Axis 0-60°
Drive System
Slewing Drive
Foundation
Concrete Foundation
Capacity
3,000,000 Sets Per Month
P

Product Description

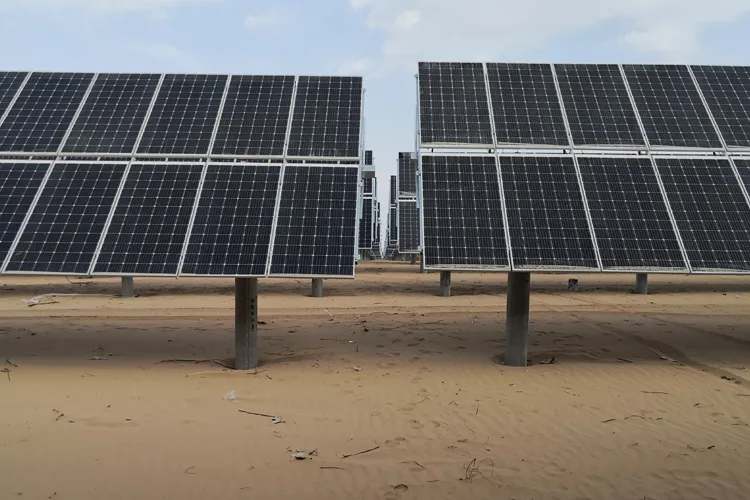

Dual Axis Solar Tracker
Dual Single Axis Tracker
Solar tracking system is one of the most promising product technology trends in solar today, which help users get more power generated. It can boost solar power system production by continuously optimizing the tracking algorithm of each individual row in response to site features and changing weather conditions.
F

Key Features

  • Weight-lifting structure with 5 supporting points, shaped table design combined with a four-link age structure, driven by slewing drive.
  • Eliminates the water wave effect to prevent the impact of wind to the structure, eliminate the quiver and ensure the output efficiency of solar modules.
  • More reasonable stable distribution, lower steel structure cost, and avoid the deformation of structure.
  • Independent design, various landform adaptability, zero land levelling cost.
  • Suitable for solar agriculture, solar-fishery projects and other applications; easy to install and maintain.

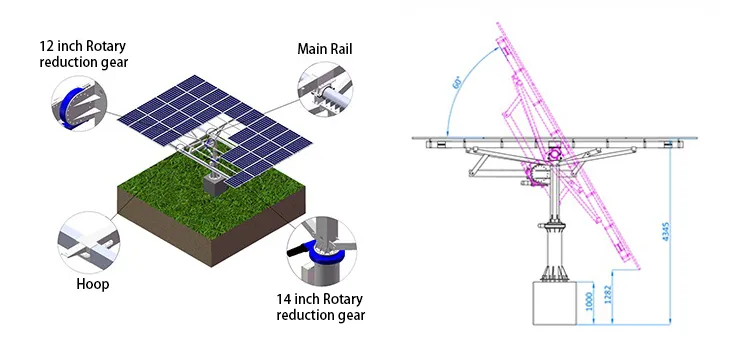

Tracking System Structure
S

Technical Specifications

Tracking Structure Control System
Technology Dual Single Axis Tracker Control Type MCU
Tracking Range X ±120°, Y 0-60° Accuracy <1°
Wind Speed (Work) 18m/s Mode Closed Loop Time + GPS
Max Wind Speed 35m/s (Stow) Communication Zigbee / Modbus RTU
Material HDG Q235B / ZAM Protection IP65
Drive System Slewing Drive Auto Stow Yes (Night & High Wind)
C

Components & Details

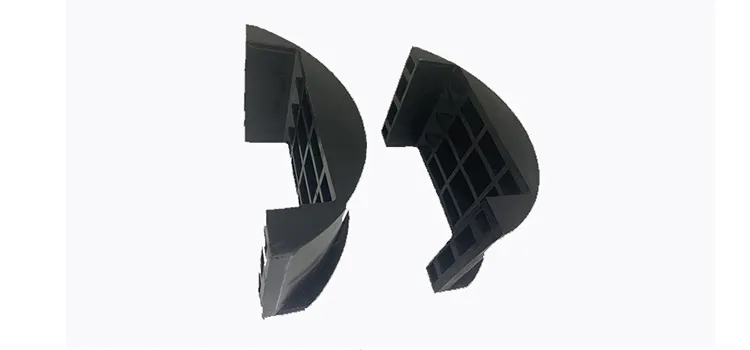

Photovoltaic Bearing

Photovoltaic Bearing: Ultra high molecular weight polyethylene, wear and impact resistant.

Auxiliary tube

Auxiliary Tube: High-strength support components for system stability.

L

Logistics & Projects

Packing

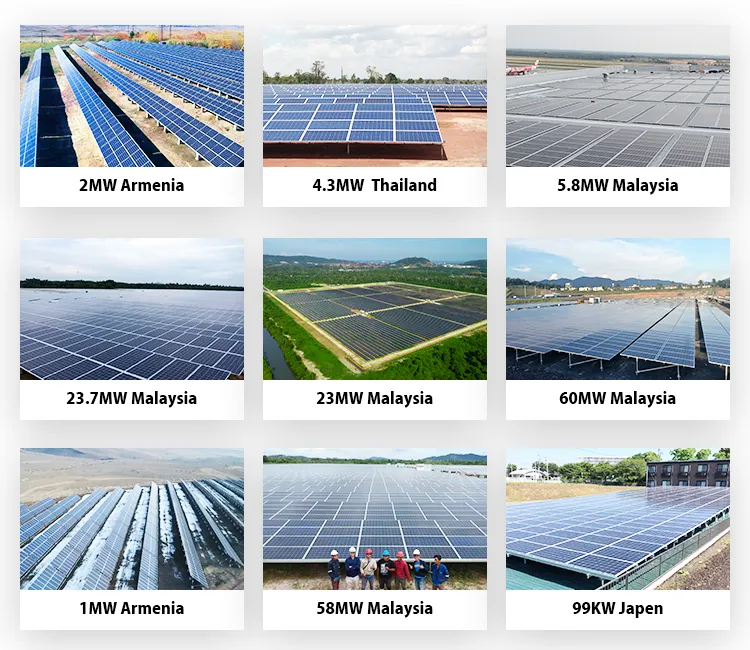

Solar Project
B

Exhibition & Certification

Global Exhibition Certifications
?

Frequently Asked Questions

Are you a professional manufacturer?
Yes, we specialize in producing solar mounting structures and are a top-level verified manufacturer in the industry.
Can we request samples before placing a bulk order?
Yes, we welcome sample orders to test and verify the quality of our tracking systems.
What is the typical delivery lead time?
Delivery depends on the order quantity, but it usually takes approximately 10 working days for standard orders.
Do you offer customized solutions?
Yes, customization is available based on detailed drawings and specific project requirements you provide.
What is the warranty period for the solar tracking system?
We provide a 10-year warranty on our structures with a design service life of up to 25 years.
What materials are used for the structure?
The primary materials used are Anodized Aluminum and High-Degree Galvanized Steel (HDG Q235B/Q355B) for maximum durability.
