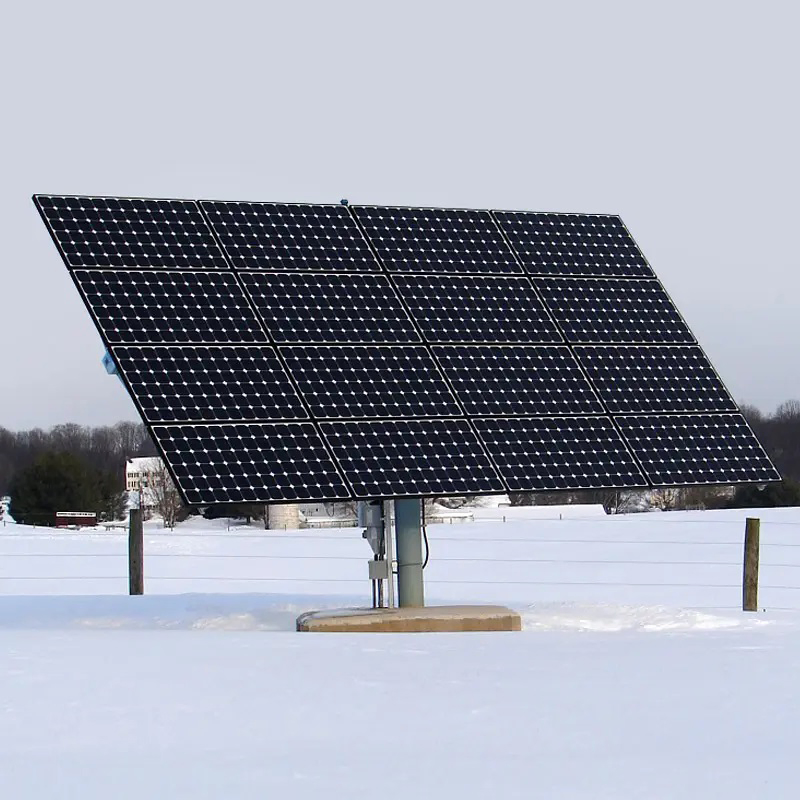

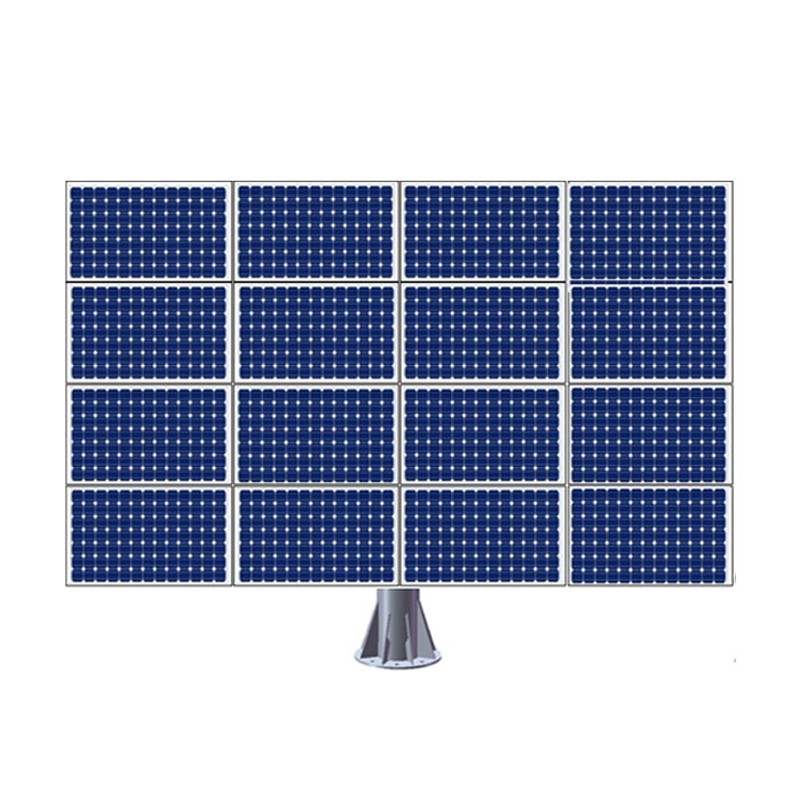

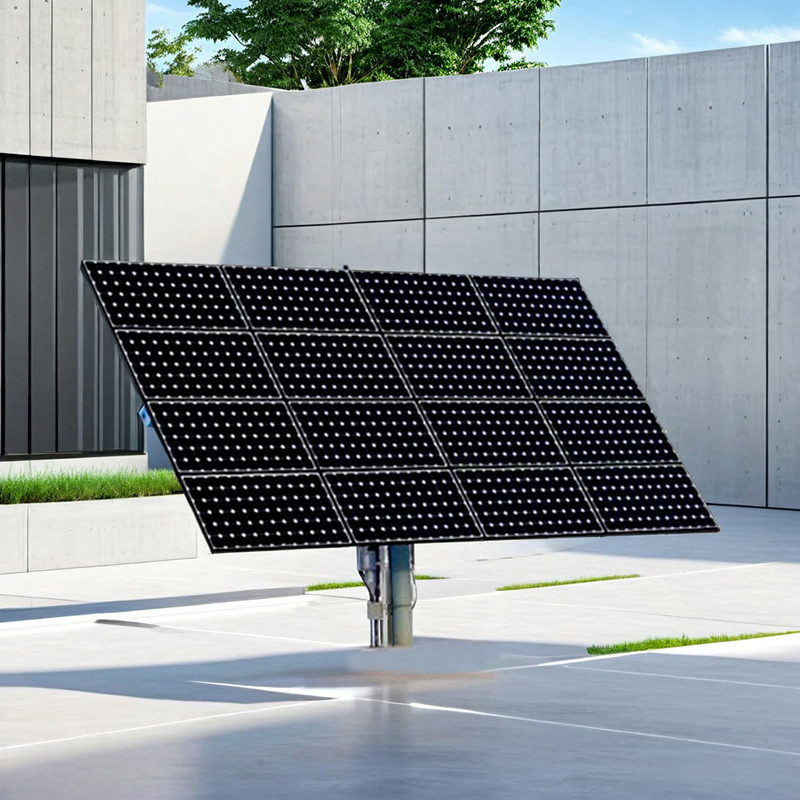

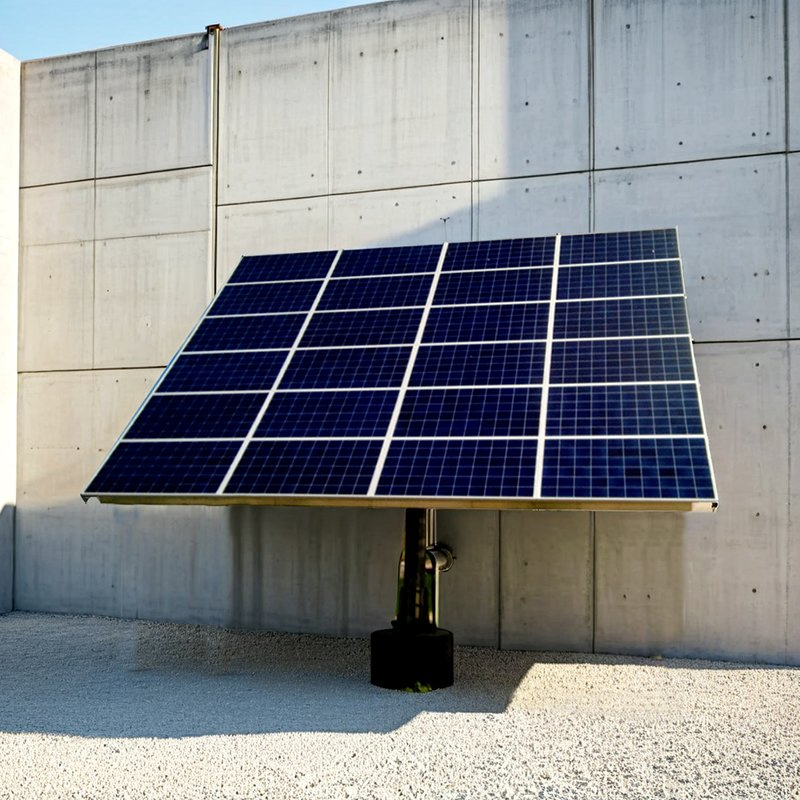

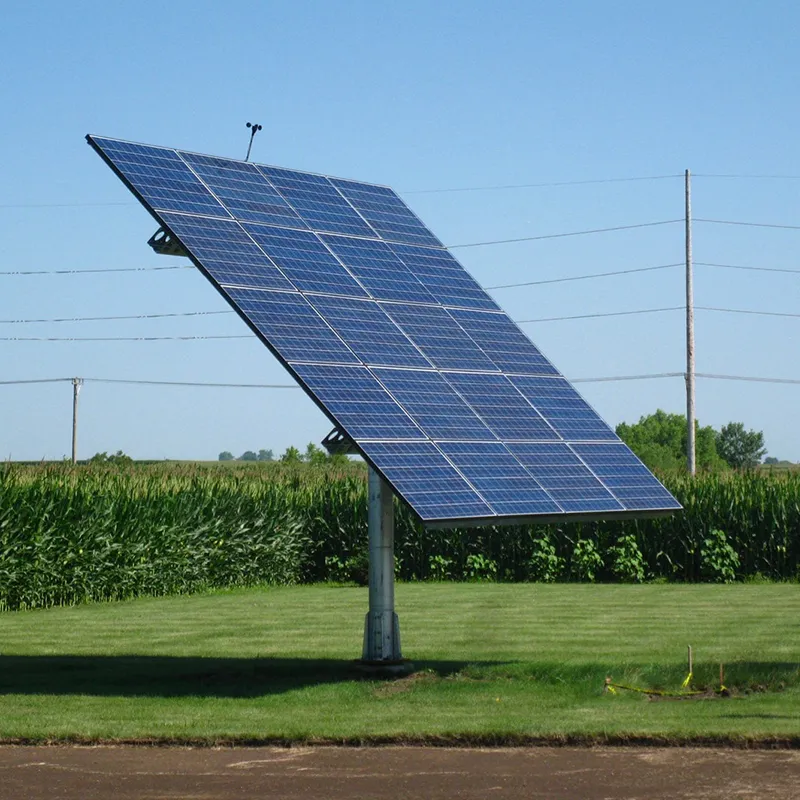

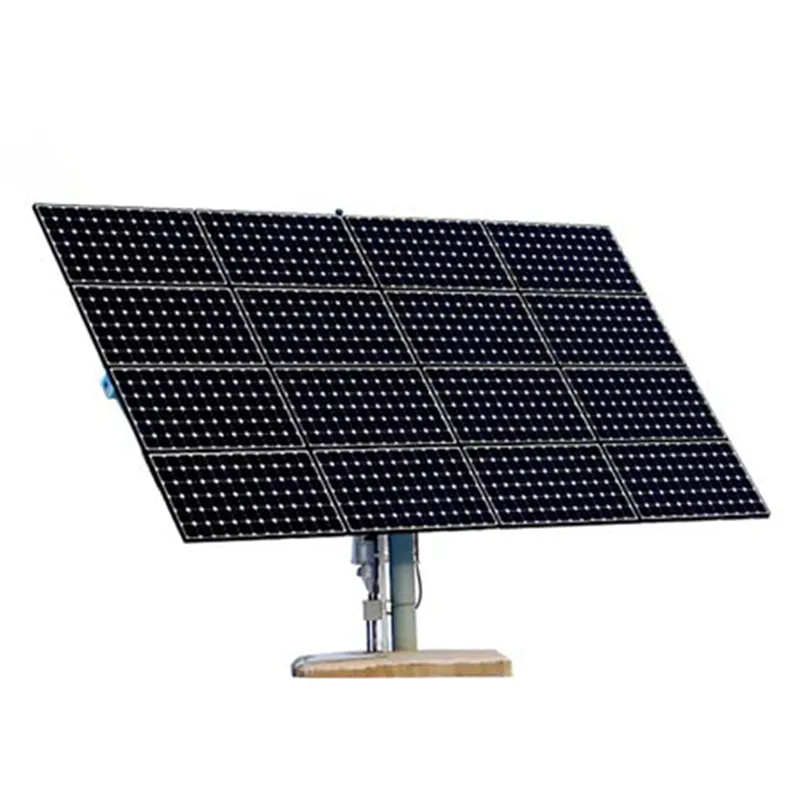

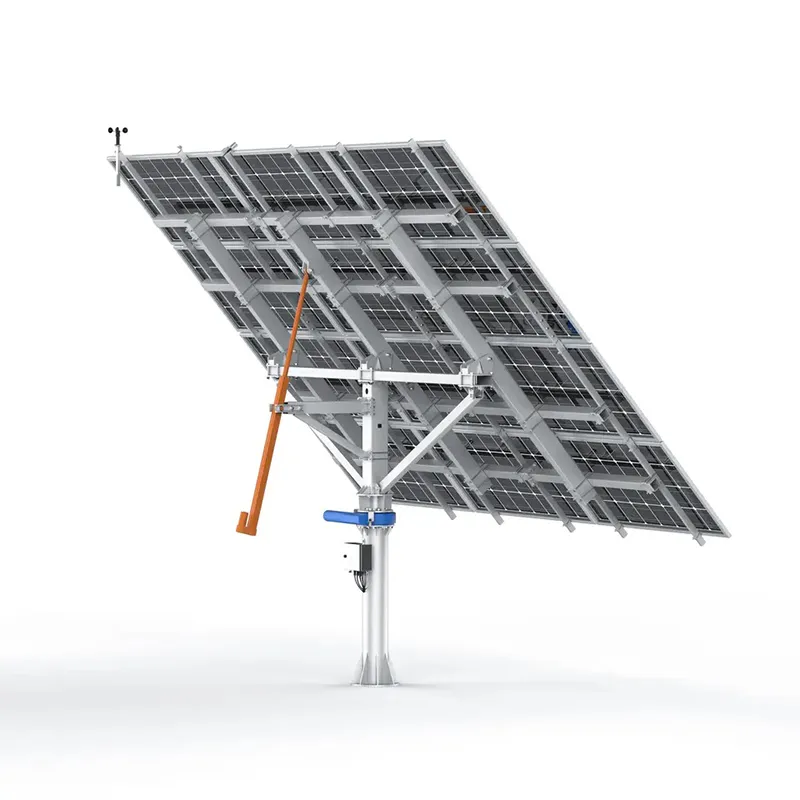

Efficient 5KW Solar Panels Tracking System with Slewing Drive for Industrial Applications.

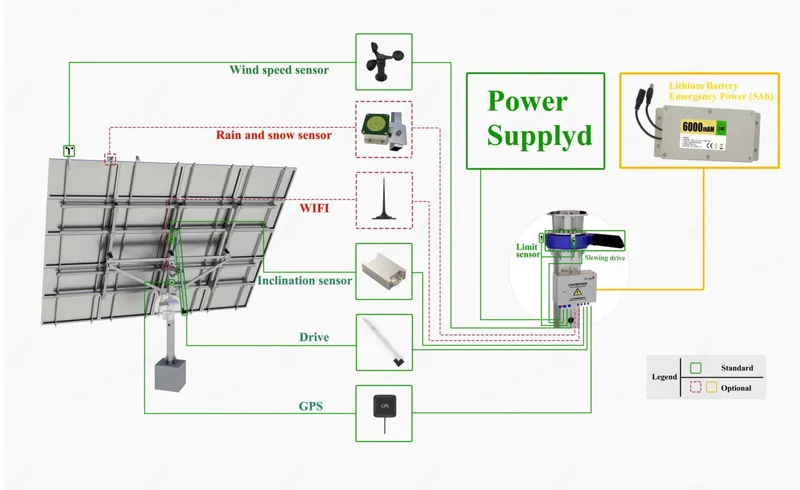

The control unit adopts inclination sensor feedback and a closed-loop control system, ensuring high tracking accuracy and reliability. Compared to stationary mounting systems, this dual-axis tracker can increase power generation by approximately 35-50%.
This 5KW dual-axis tracking bracket is compatible with 98% of solar panel specifications available on the market. The system is designed for low energy consumption, with a daily self-use power requirement of less than 0.85 kWh.
| Solar Panel Type | 1650*992*35mm (78 Cells) |
| Number of Panels | 10 PCS |
| Grid Area | ≈25 m² |
| Safe Working Wind Speed | 17 m/s |
| Survival Wind Speed | 37 m/s (Customizable up to 60m/s) |
| Snow Load | 0.8-1.6KN/m² |
| Control Algorithm | Astronomical Algorithm + Position Sensor Closed Loop |
| Working Temperature | -30ºC to +70ºC |
| X Axis Tracking Range | -135° to +135° (Customizable within ±175°) |
| Y Axis Tracking Range | 0° to 60° (Customizable) |
| Driving Power | 350W |
