Single Axis and Dual Axis Solar Panel Bracket Independent Tracking System
Single Axis and Dual Axis Solar Panel Bracket Independent Tracking System
Single Axis and Dual Axis Solar Panel Bracket Independent Tracking System
Single Axis and Dual Axis Solar Panel Bracket Independent Tracking System
1 / 4
Single Axis and Dual Axis Solar Panel Bracket Independent Tracking System
Single Axis and Dual Axis Solar Panel Bracket Independent Tracking System
Single Axis and Dual Axis Solar Panel Bracket Independent Tracking System
Single Axis and Dual Axis Solar Panel Bracket Independent Tracking System

Single Axis and Dual Axis Solar Panel Bracket Independent Tracking System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
WTT-SPH
Condition
New
Certification
ISO, CE
Application
Commercial
Install Site
Open Terrain
Module Orientation
Horizontal
Motor Type
24V DC Motor
Tracking Range
±60° (Customized)

Product Description

Arduino Single Post Solar Tracking System for Small Projects

The single post solar tracking system is fully compatible with 210 silicon wafer modules. It is a single-axis double-row small solar tracker designed for high efficiency. This automatic solar tracker adopts a linear electric actuator drive type and features a manual control mode. With the capacity to hold 10 photovoltaic panels, this system can increase power generation by 10-25%.

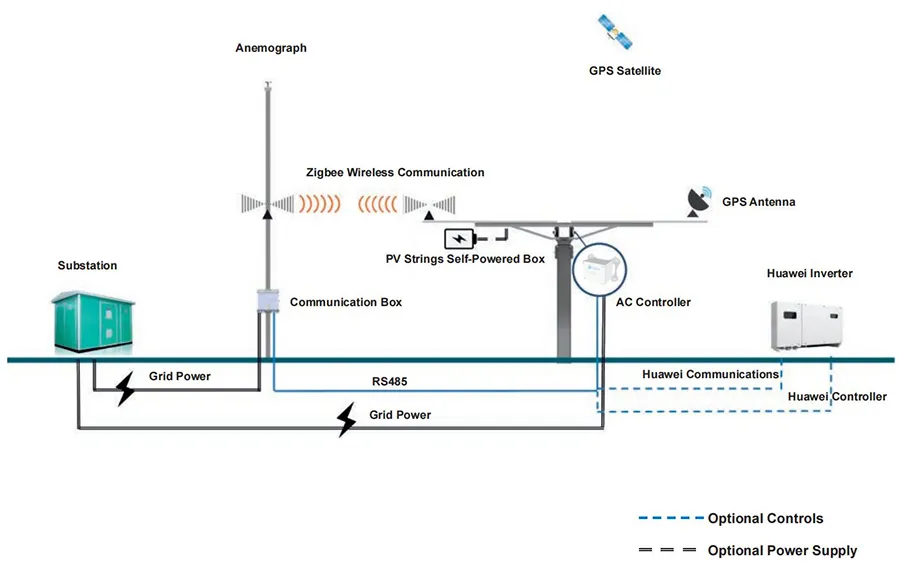

Electrical Principle

Product Parameters

PV-Modules
PV-Modules SupportedFully fit for 210 module
Structure
System TypeSingle post tracking system
Maximum Capacity Per Set6.0kWp (Estimated with 600W PV-Modules)
PV-Module Quantity Per Set10 PCS
Tracking Range±45° (E-W)
Tracking Accuracy±0.5°
Electrical
Solar Tracking MethodAstronomical algorithm + closed-loop control (AI)
Control SystemMCU
Drive MethodLinear Drive
Motor Type24V DC Motor
Power SupplyAC-powered or self-powered
Protection Function
Wind Protection≥18m/s (Windy area)
Night Stow ModeYes
System Fault Self-diagnosisYes
Environment
Operating Temperature-30°C ~ +60°C

Features & Benefits

Fully fit for 210 module
Intelligent AI algorithm for optimized power
Built-in inclination sensor
Easy installation and maintenance
Stable and reliable operation
Smart wind protection mode
Power generation increase of 10-25%
Optional AC or self-power supply

Project Showcase

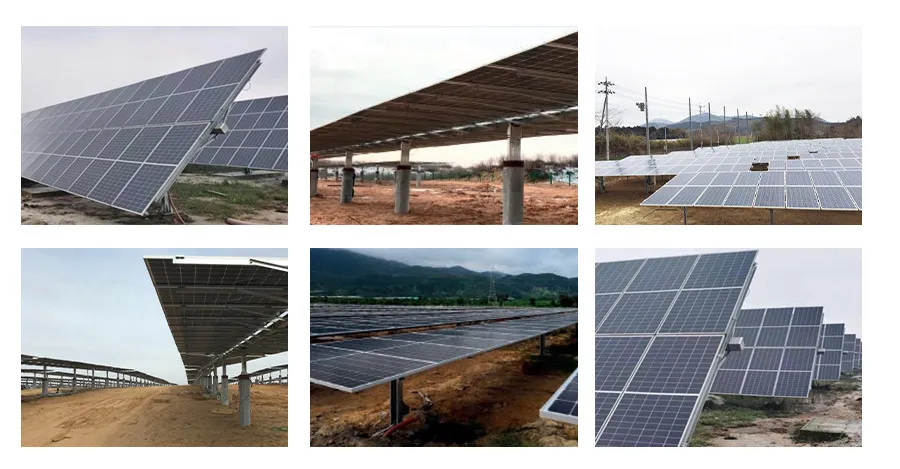

Project Site 1 Project Site 2

Frequently Asked Questions

Can the solar tracker be adjusted manually?
Yes, our solar tracker is designed with dual functionality. It operates on an automatic AI-driven control system but can also be switched to manual adjustment mode for specific project needs.
What is the warranty period for this tracking system?
The system is designed to be maintenance-free for 25 years. We provide a 10-year warranty for the bracket structure and a 5-year warranty for the drive system, electrical components, and dampers.
How much extra power can a tracker generate compared to fixed structures?
Generally, power generation increases by 10%-15% compared to fixed supports. When using bifacial modules, the increase can reach 20-25%, and even exceed 30% in high-albedo environments like snow.
What international standards does the system follow?
Our design standards are compliant with global requirements including GB, ASCE, BS EN, and AS, depending on the specific location and project needs.
How long does it take for the system to rotate to a horizontal position?
The system is efficient and can rotate the entire array to a horizontal position (for stow or maintenance) within approximately 5-6 minutes.
Is the system compatible with high-wind areas?
Yes, the system features an intelligent smart wind protection mode. It is designed to withstand wind speeds of ≥18m/s by automatically moving to a safe stow position.
