| Specifications | HT30KW-HY | HT50KW-HY | HT100KW-HY | HT250KW-HY | HT500KW-HY |
|---|---|---|---|---|---|
| AC Rated Power | 30KW | 50KW | 100KW | 250KW | 500KW |
| Solar Panel Qty | 68 PCS | 102 PCS | 204 PCS | 510 PCS | 1020 PCS |
| Inverter Model | HTMPS30 | HTMPS50 | HTMPS100 | HTMPS250 | HTMPS500 |
| Battery Capacity | 40.96KWH | 100.352KWH | 200.704KWH | 473.088KWH | 946.176KWH |
| Grid Voltage | 380/400VAC, 50/60HZ | ||||
Mono Solar Panel (560Wp)
High efficiency monocrystalline modules with durable dimensions (2279*1134*35mm).

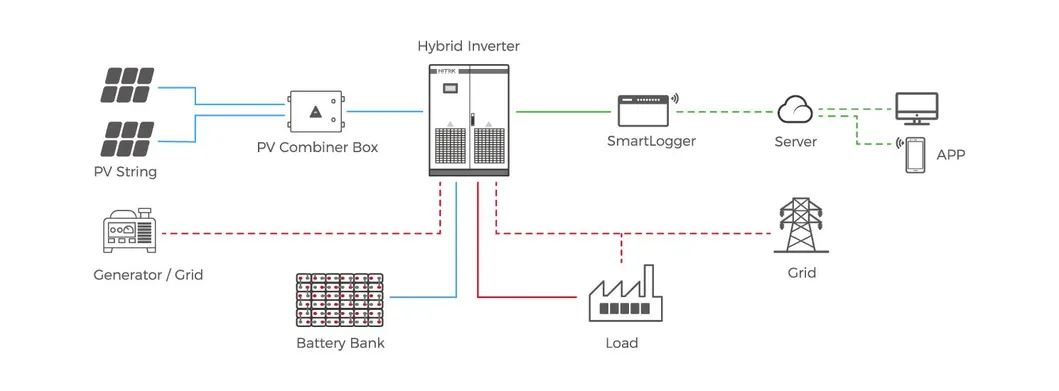

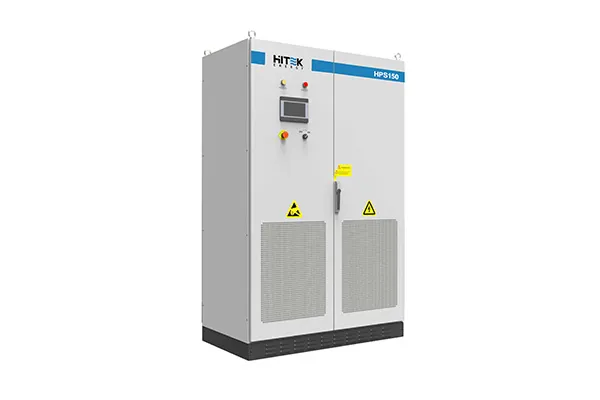

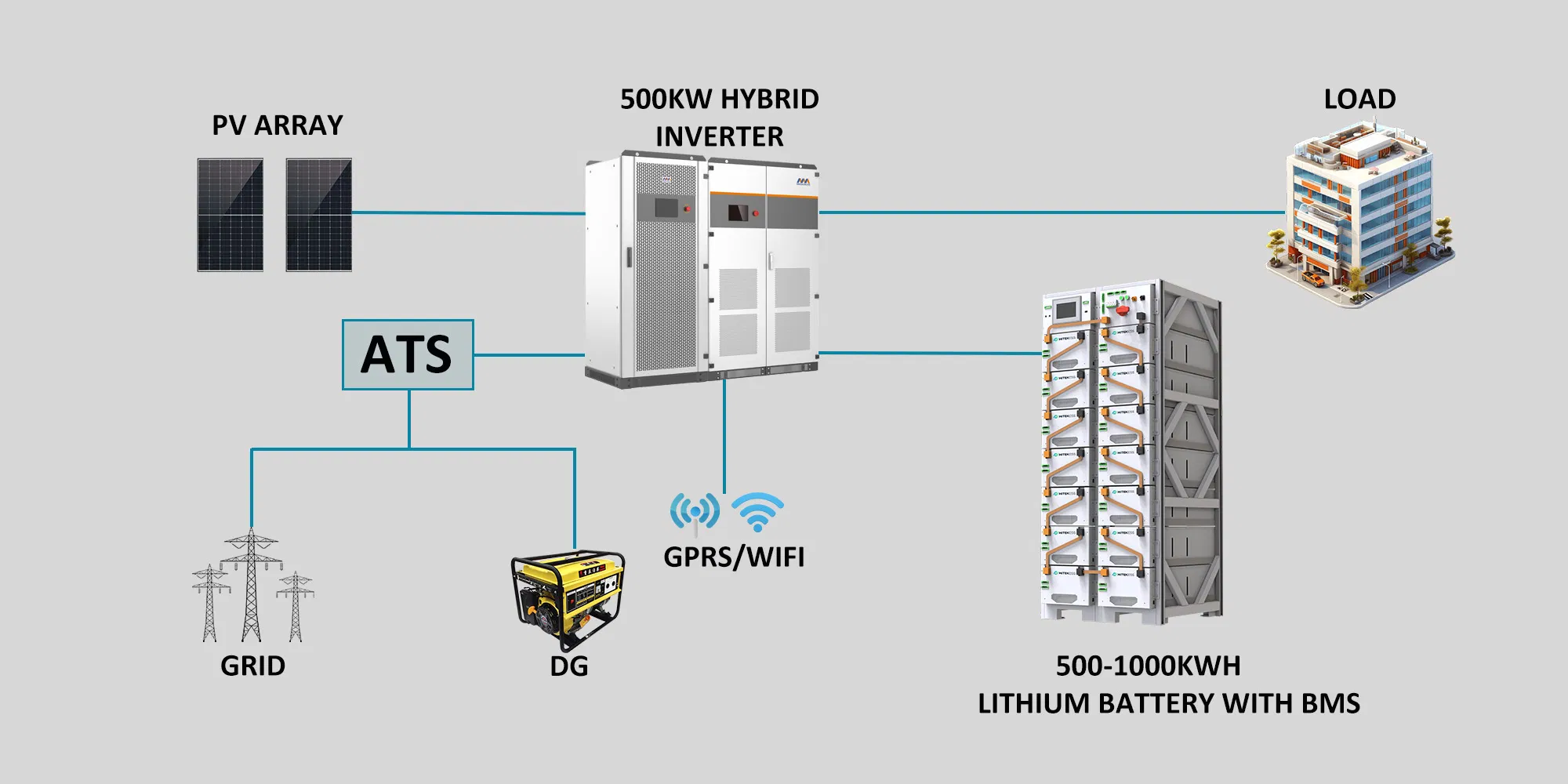

All-in-one Hybrid Inverter
Programmable working modes, touchscreen LCD, and scalable design for parallel operation.

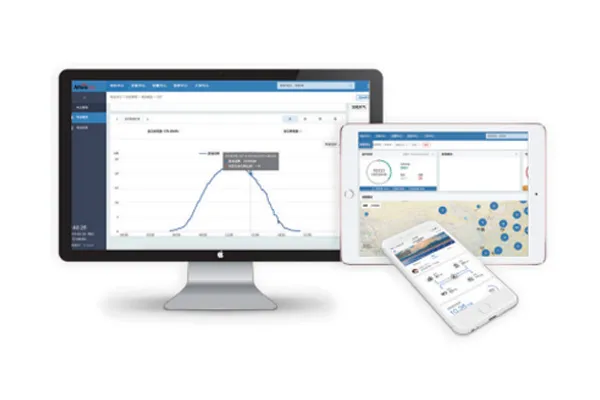

Online Monitoring System
Safe operation tracking with full lifecycle data storage and remote navigation.

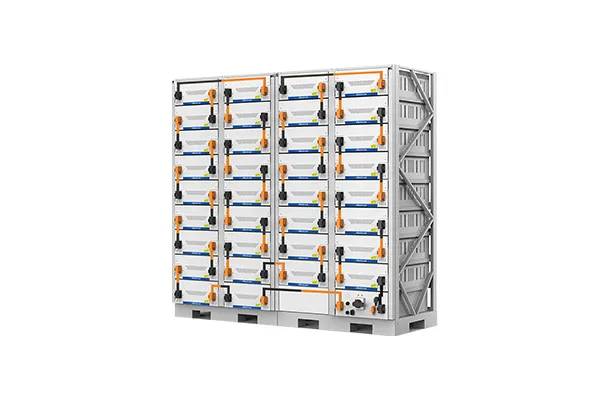

Solar Battery Packs
LiFePO4 Lithium Ion options, up to 6000 cycles at 90% DOD, maintenance-free.

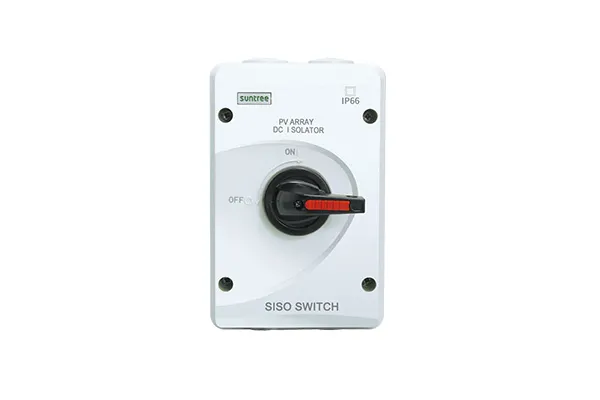

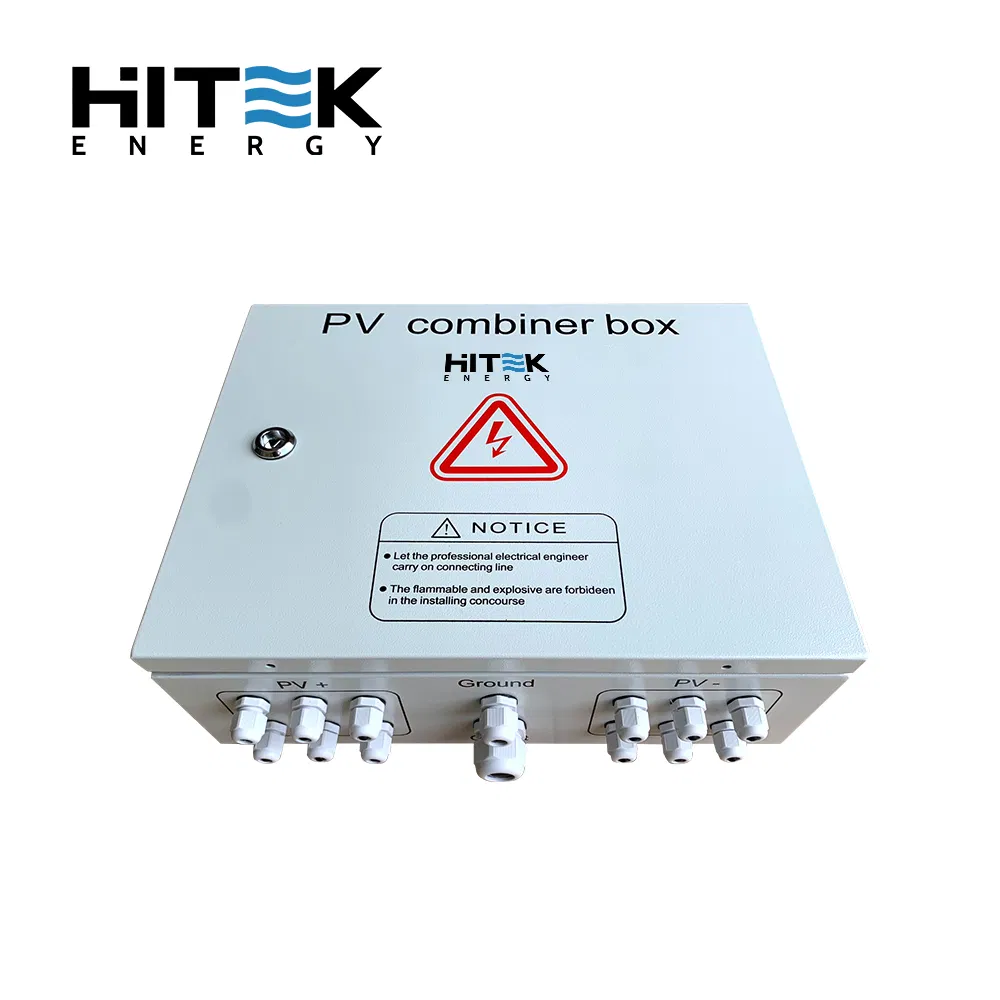

DC & AC Disconnects
Rated at 1000VDC for maximum safety and quick system isolation.

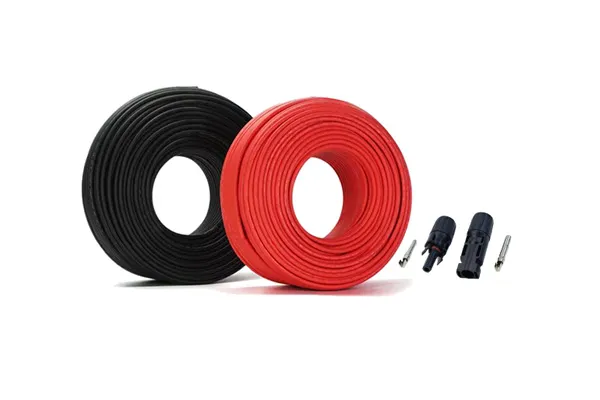

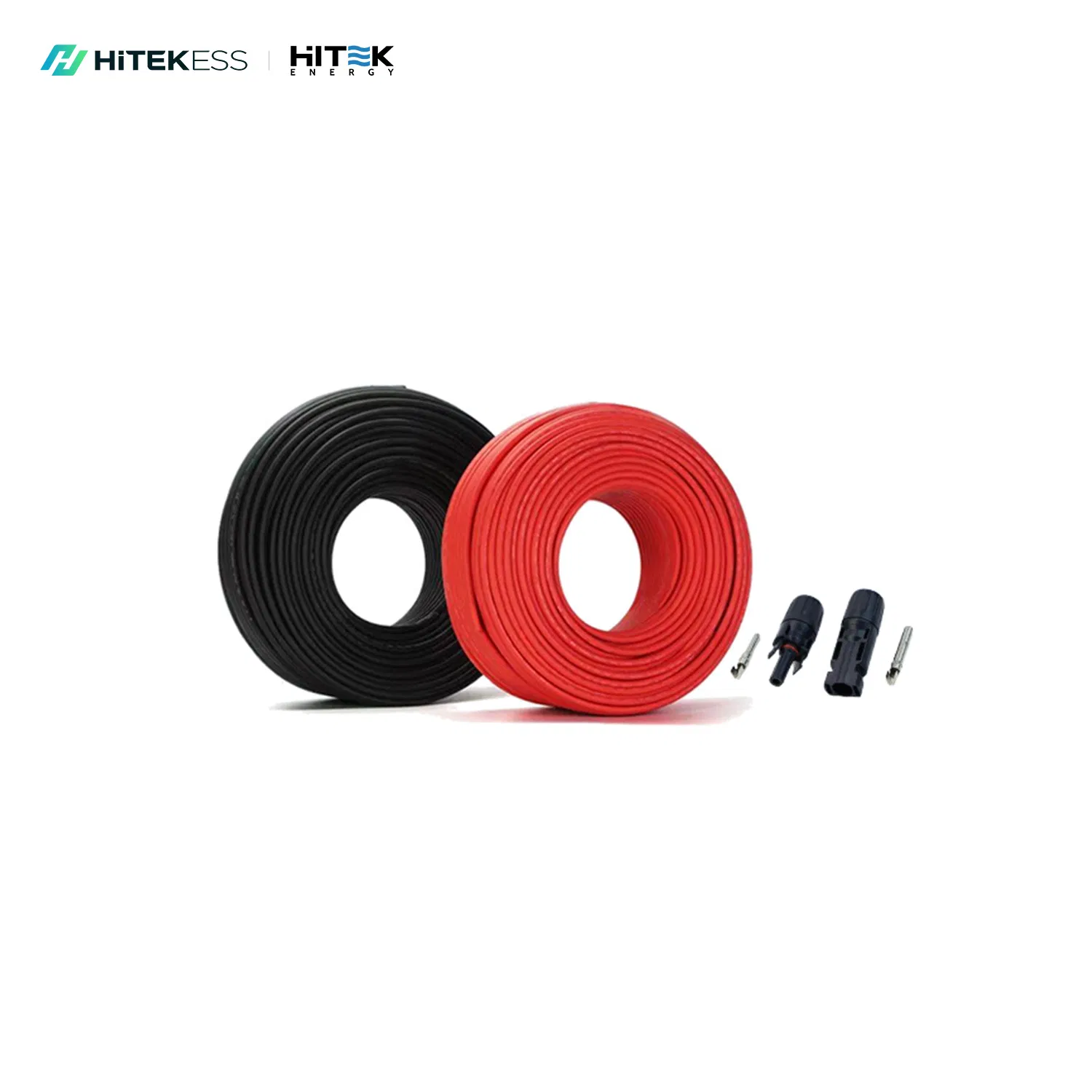

DC Cable & MC4
TUV certified 4mm2/6mm2 cables with 25-year designed lifetime.

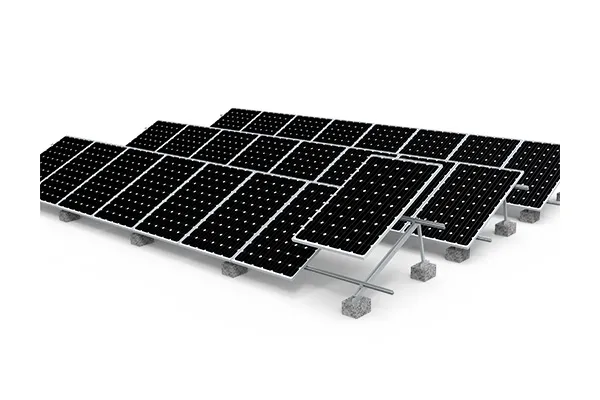

PV Mounting System: AI6005 & SUS304 components, suitable for various roof and ground types.
Founded in 2018, we are a superior photovoltaic manufacturer dedicated to providing sustainable energy solutions for homes, businesses, and factories. We provide tailored solar solutions for backup, residential, and commercial needs using only reliable, approved equipment.
Our Advantages: Professional guidance, reliable component selection, and a commitment to helping you lower electric costs while building a greener future.
