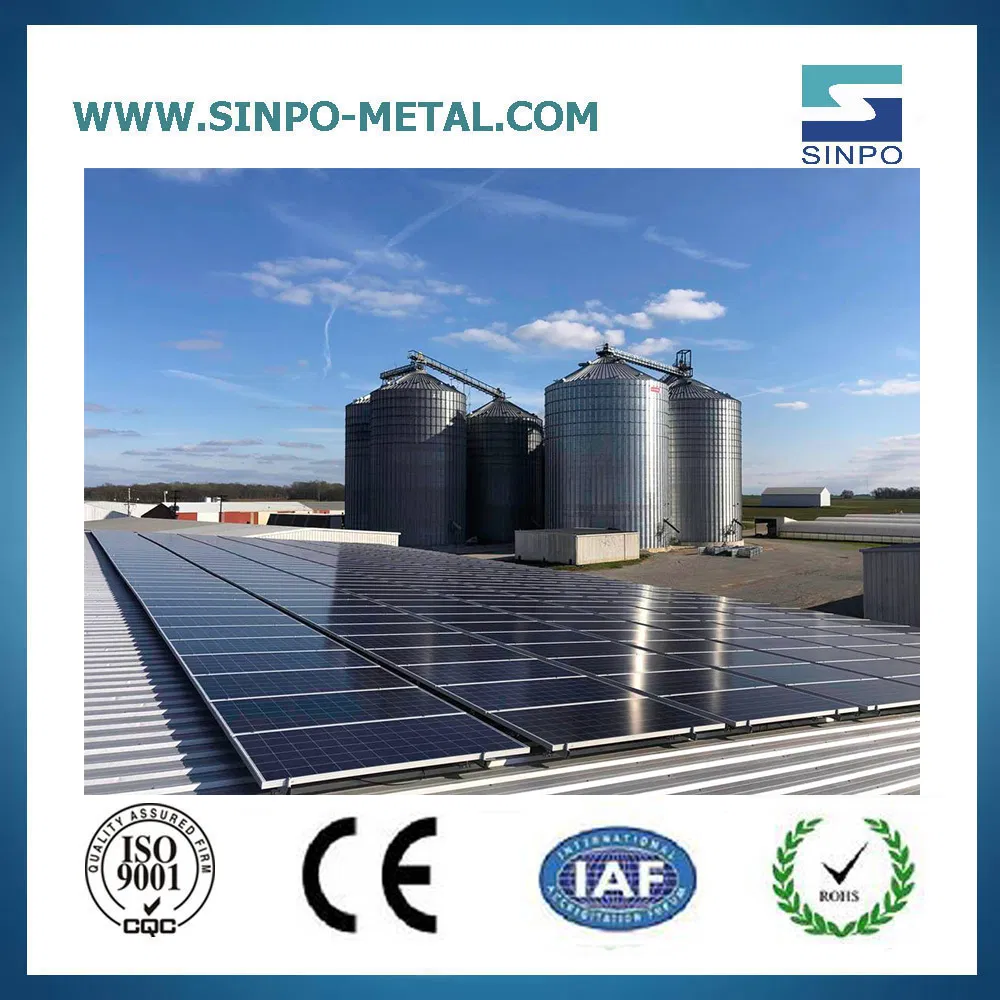

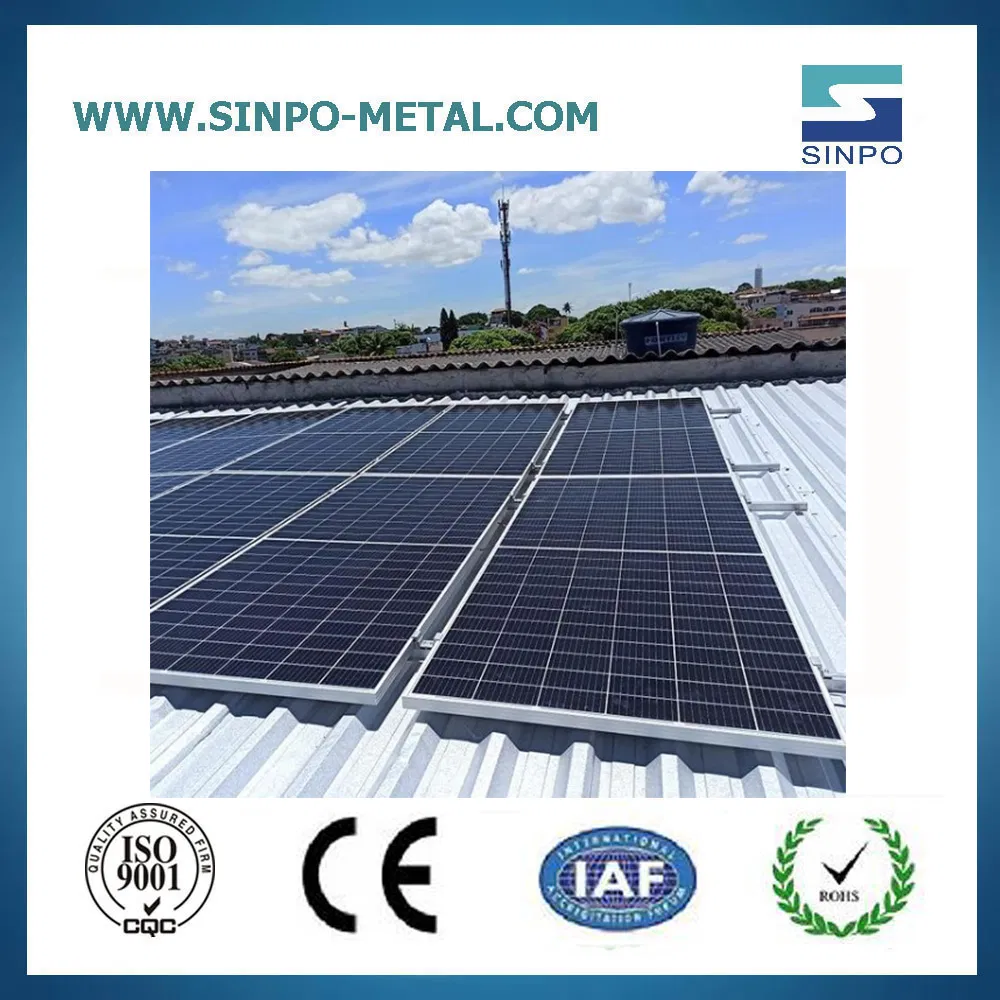

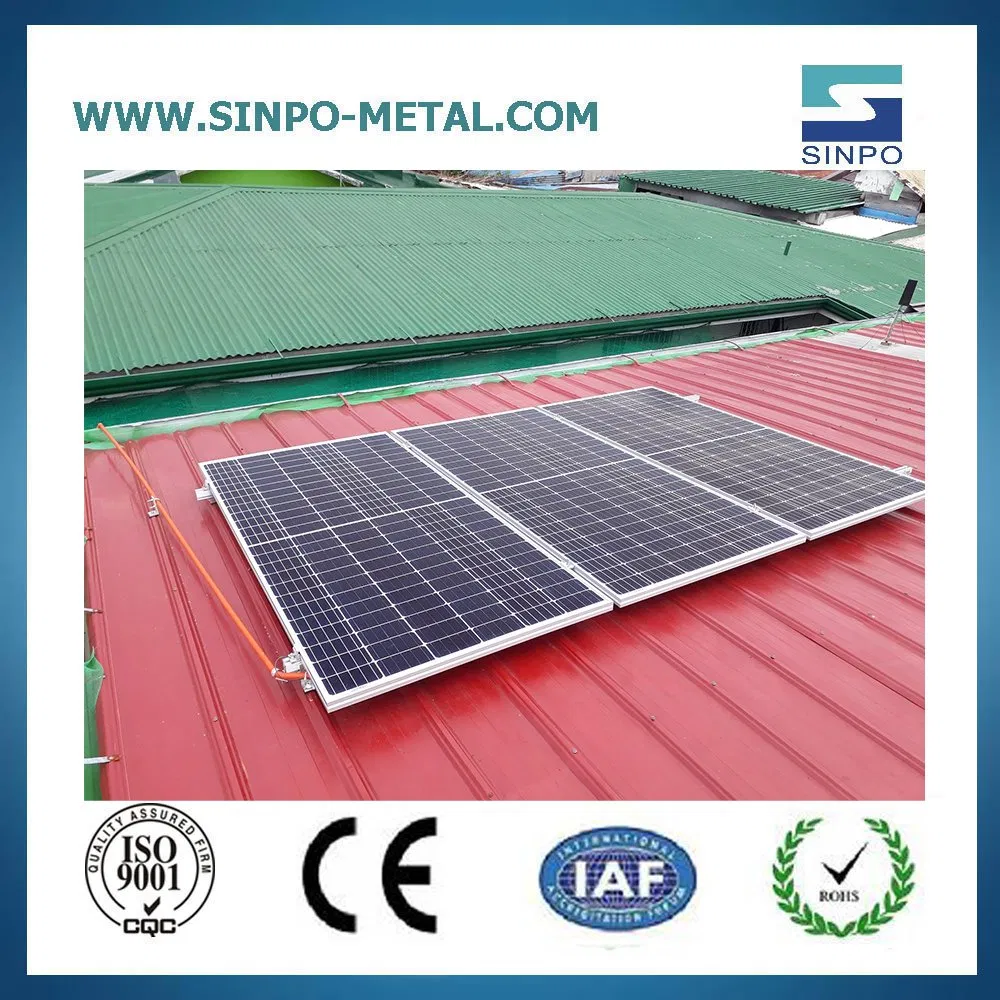

Economical Tin Roof Photovoltaic Installation Kit with Enhanced Durability

Basic Information

Model NO.

Metal Roof Solar Panel Structure

Certification

ISO, CE

Application

Commercial

Material

Aluminum Alloy

Type

Roof Bracket

Wind Load

60m/S

Snow Load

1.4kn/M2

Origin

China

HS Code

76109000

Capacity

50000ton/Year

Packaging & Delivery

Package Size

45.50cm * 26.50cm * 37.50cm

Gross Weight

23.600kg

Transport

Shrinking Film, Carton, Wooden Pallet

Product Description

✓Enables easy, fast and cost-effective installation.

✓Flexible post spacing withstands different wind & snow loads.

✓High quality material in Aluminum and SUS 304.

✓Highly corrosion resistant surface treatment.

✓Screws and nuts go with every components needed.

✓Mechanical calculation and reliability tested to ensure highest product quality.

✓12-25 years system and structural guarantee.

System Specifications
Installation site	According to your requirements
Material	Aluminum 6000 series
Fasten material	Stainless Steel / Aluminum
Survival Wind Speed	< 60m/s
Design Snow load	Up to 1.4KN/ Square meters
Solar panel type	Framed or Frameless
Panel Orientation	Transverse or vertical
Design Standard	CE; ISO9001; SGS
Quality warranty	12-25 years
Duration	More than 20 years

Materials List For 1kw

NO.	Name	Size (mm)	QTY	Material
1	Clamp	-	12	AL6063-T5
2	Rail	4040/3040	4	AL6063-T5
3	Rail Joiner	4 set screw	2	AL6063-T5
4	Mid Clamp	30-47-60	6	AL6063-T5
5	End Clamp	W40-60-16	4	AL6063-T5
6	Hexagon Socket Screw	M8*25	24	SS304
7	T Bolt	M8*25	12	SS304
8	T Bolt	M8*35	10	SS304

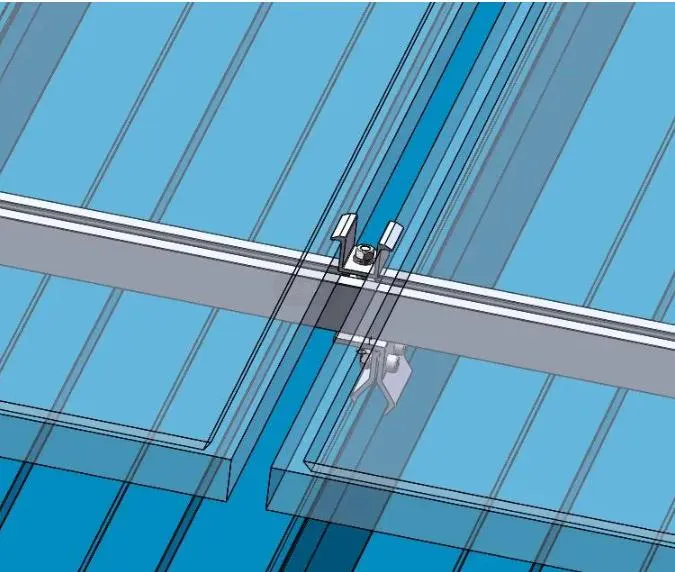

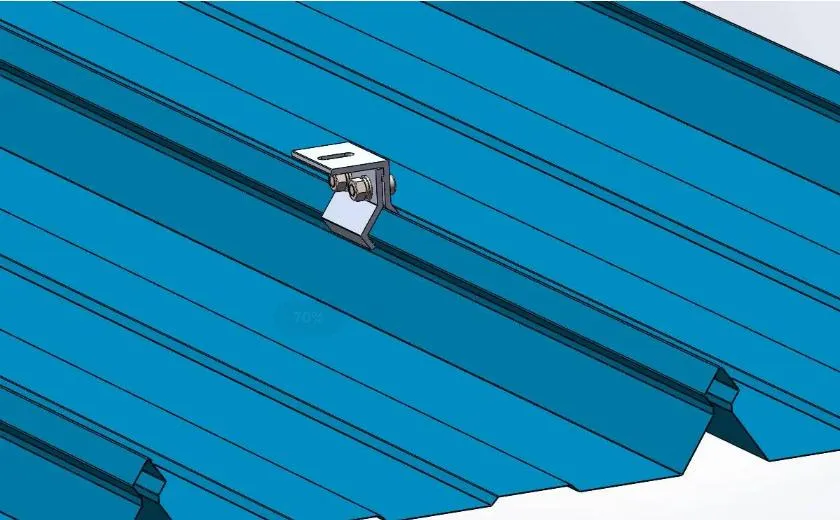

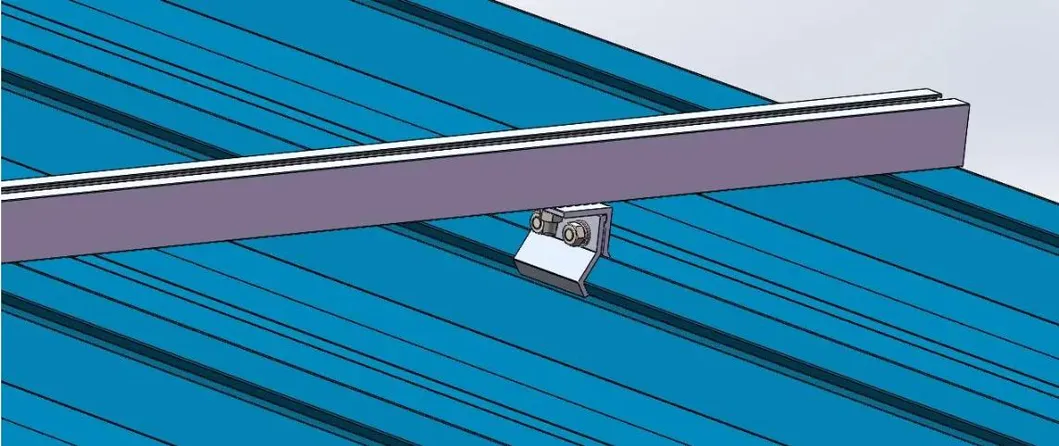

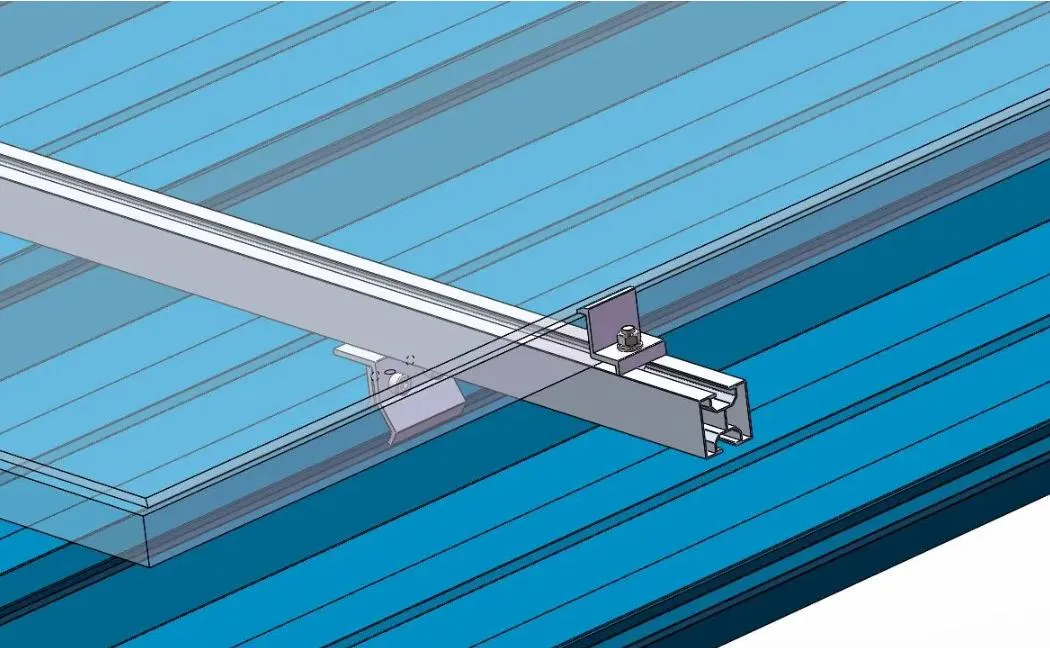

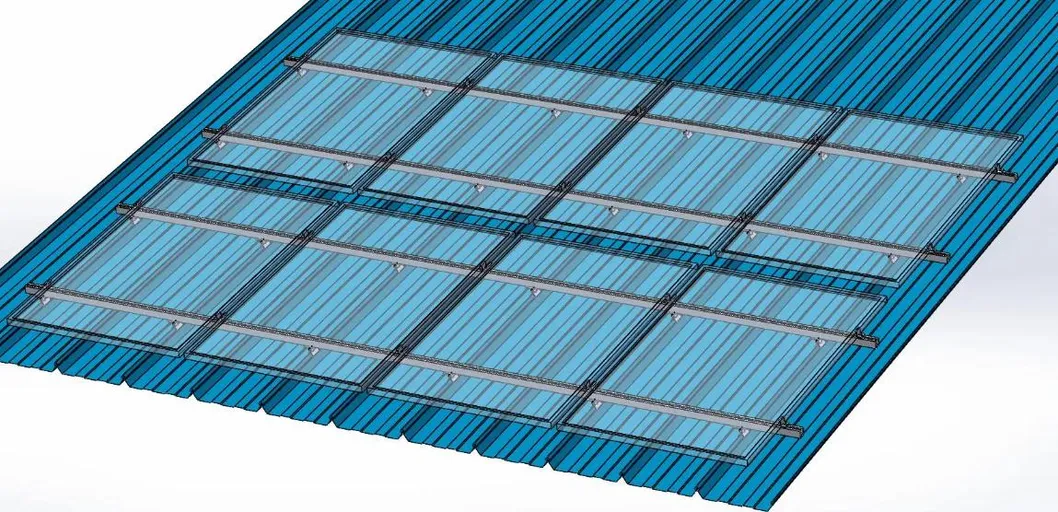

Mounting Steps

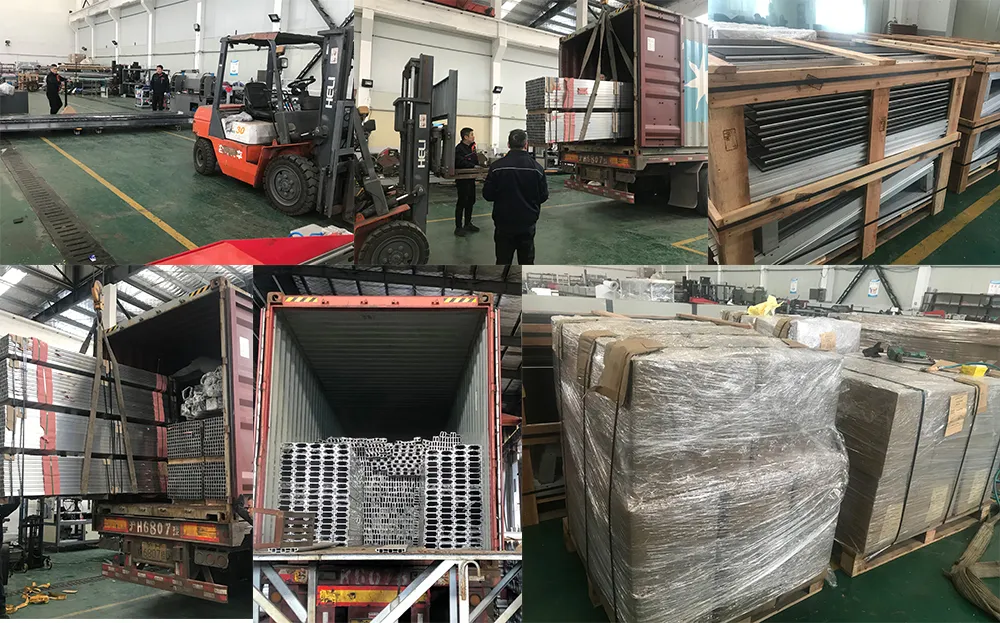

Packaging & Shipping

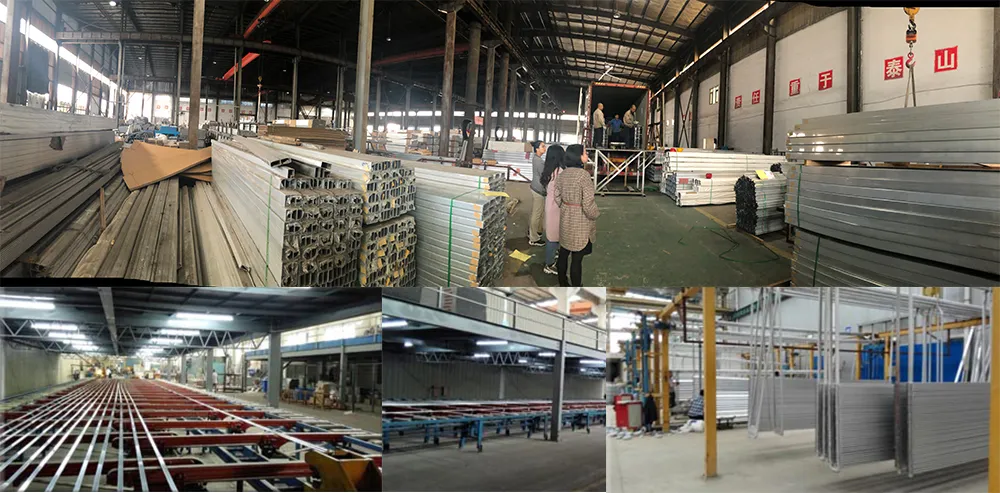

Factory & Quality Control

About Our Capability

We are a professional manufacturer for Aluminum products with 20 years of experience, supplying over 15 countries worldwide. We specialize in custom designs and provide a variety of ready-made solar mounting solutions. Our products are researched and designed to meet specific market trends and national standards, ensuring high quality and durability.

To provide the right system, please offer:
1. Dimension of solar panels (L*W*H)?
2. Solar panels array layout?
3. Installation site type (Rooftop or ground)?
4. Tilt angle requirements?
5. Wind and snow load requirements?

Frequently Asked Questions

Q1: What is your Minimum Order Quantity (MOQ)? A: 500kg for general products and more than 5 tons for new specialized products.

Q2: Can you produce aluminum profiles based on custom drawings? A: Yes, we have professional engineers to design CAD drawings and establish molds according to customer requirements.

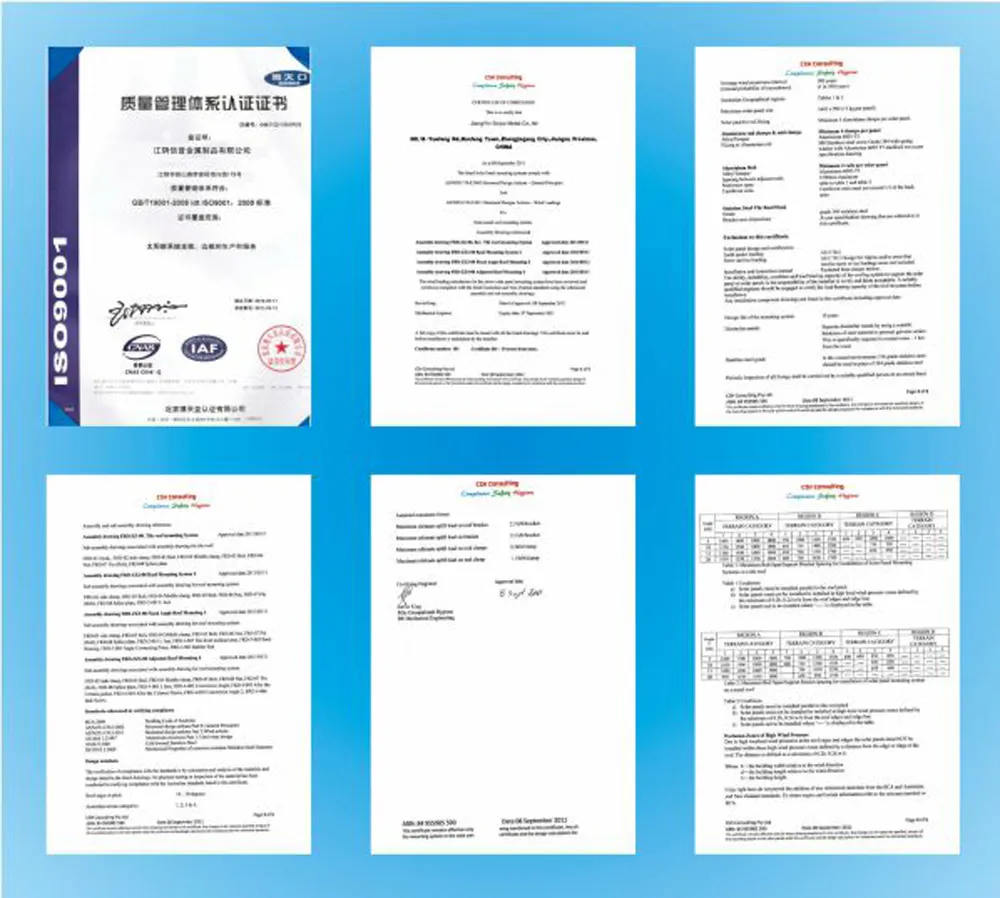

Q3: What certifications and standards do you follow? A: We hold ISO certification. Our products comply with DIN, AAMA, AS/NZS, and China GB standards.

Q4: What is the delivery time for samples and production? A: 2-3 weeks to open new molds and provide samples; 3-4 weeks for mass production after deposit and order confirmation.

Q5: What are your standard packing methods? A: Commonly we use shrink films or kraft paper. Custom packaging is available upon request.

Q6: What are the accepted payment terms? A: Usually T/T (30% deposit, balance before shipment). L/C is also acceptable.
