🟦 Basic Specifications
Model NO.Metal Roof Solar Panel Structure
CertificationISO, CE
MaterialAluminum Alloy
Wind Load60m/S
Snow Load1.4kn/M2
ApplicationCommercial
TypeRoof Bracket
Production Capacity50000ton/Year
Package Size45.5*26.5*37.5cm
Package Weight23.60kg
🟦 Product Features
✔Easy, fast and cost-effective installation.
✔Flexible post spacing for wind & snow loads.
✔High quality Aluminum and SUS 304 material.
✔Highly corrosion resistant surface treatment.
✔Fully configured fasteners and rail nuts.
✔Mechanical calculation and reliability tested.
✔12-25 years system and structural guarantee.
✔More than 20 years service life duration.
| Technical Specifications |
| Installation site | According to requirements |
| Material | Aluminum 6000 series |
| Fasten material | Stainless Steel / Aluminum |
| Survival Wind Speed | < 60m/s |
| Design Snow load | Up to 1.4KN/㎡ |
| Solar panel type | Framed or Frameless |
| Panel Orientation | Transverse or vertical |
| Design Standard | CE; ISO9001; SGS |
🟦 Materials List For 1kw System
| NO. |
Name |
Size(mm) |
QTY |
Material |
| 1 | Clamp | - | 12 | AL6063-T5 |
| 2 | Rail | 40*40/30*40 | 4 | AL6063-T5 |
| 3 | Rail Joiner | 4 set screw | 2 | AL6063-T5 |
| 4 | Mid Clamp | 30-47-60 | 6 | AL6063-T5 |
| 5 | End Clamp | W40-60-16 | 4 | AL6063-T5 |
| 6 | Hexagon Socket Screw | M8*25 | 24 | SS304 |
| 7 | T Bolt | M8*25 | 12 | SS304 |
| 8 | T Bolt | M8*35 | 10 | SS304 |

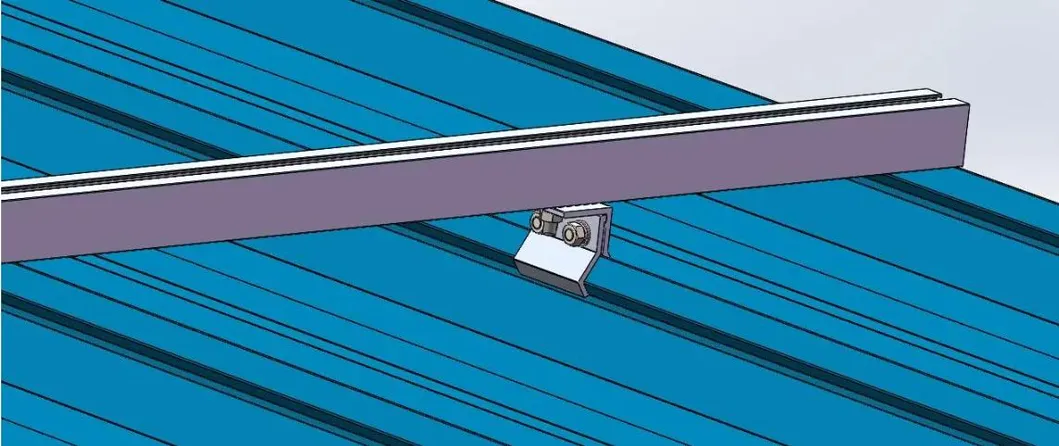

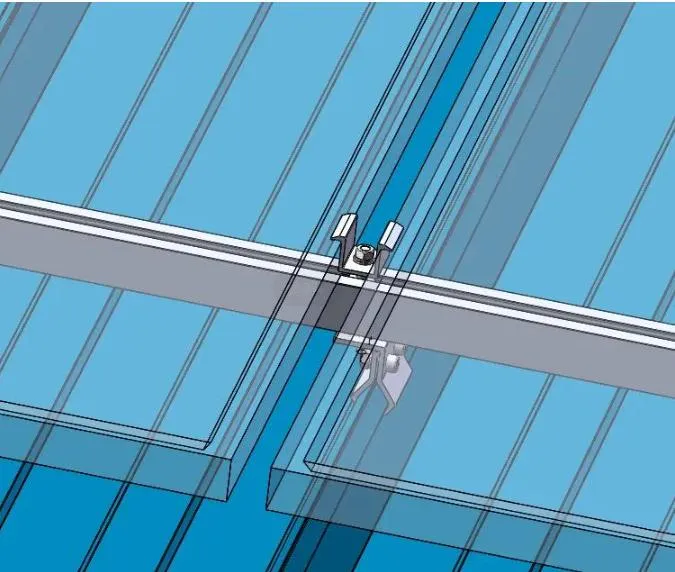

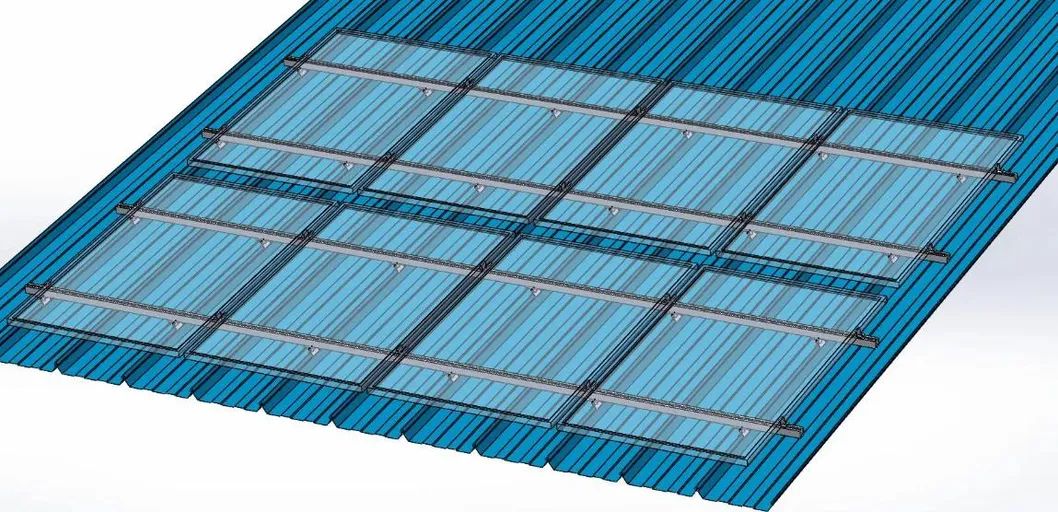

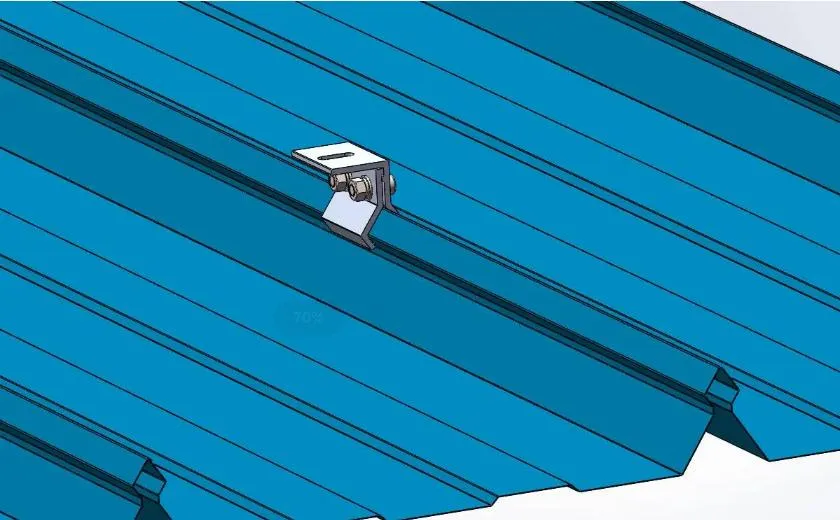

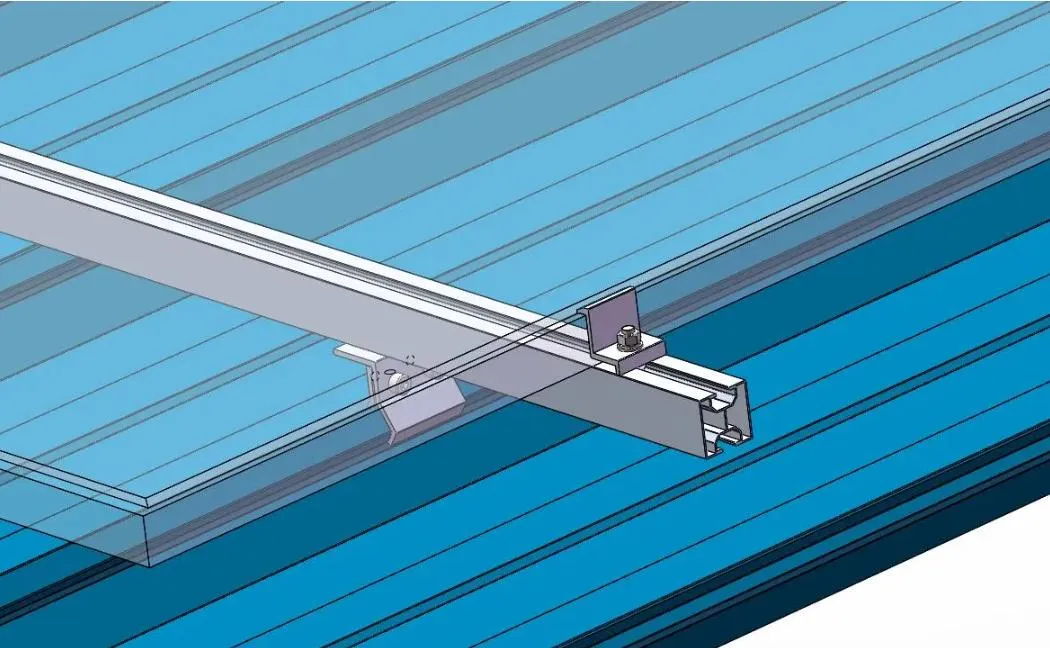

🟦 Installation Steps

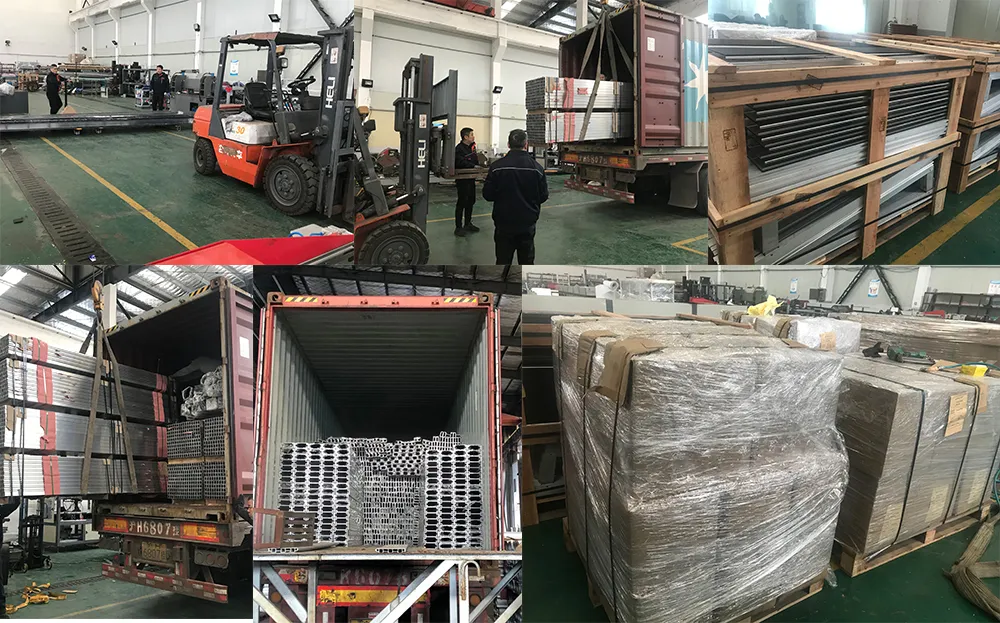

🟦 Packaging & Shipping

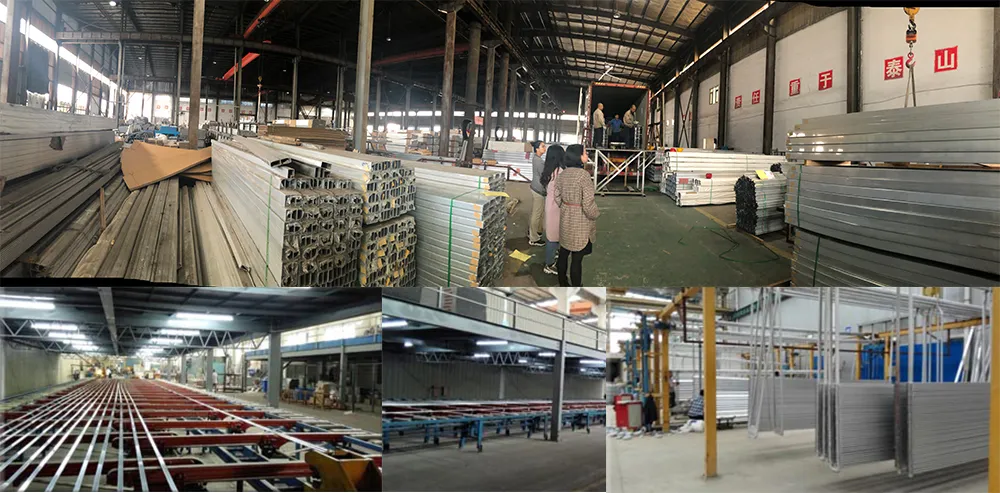

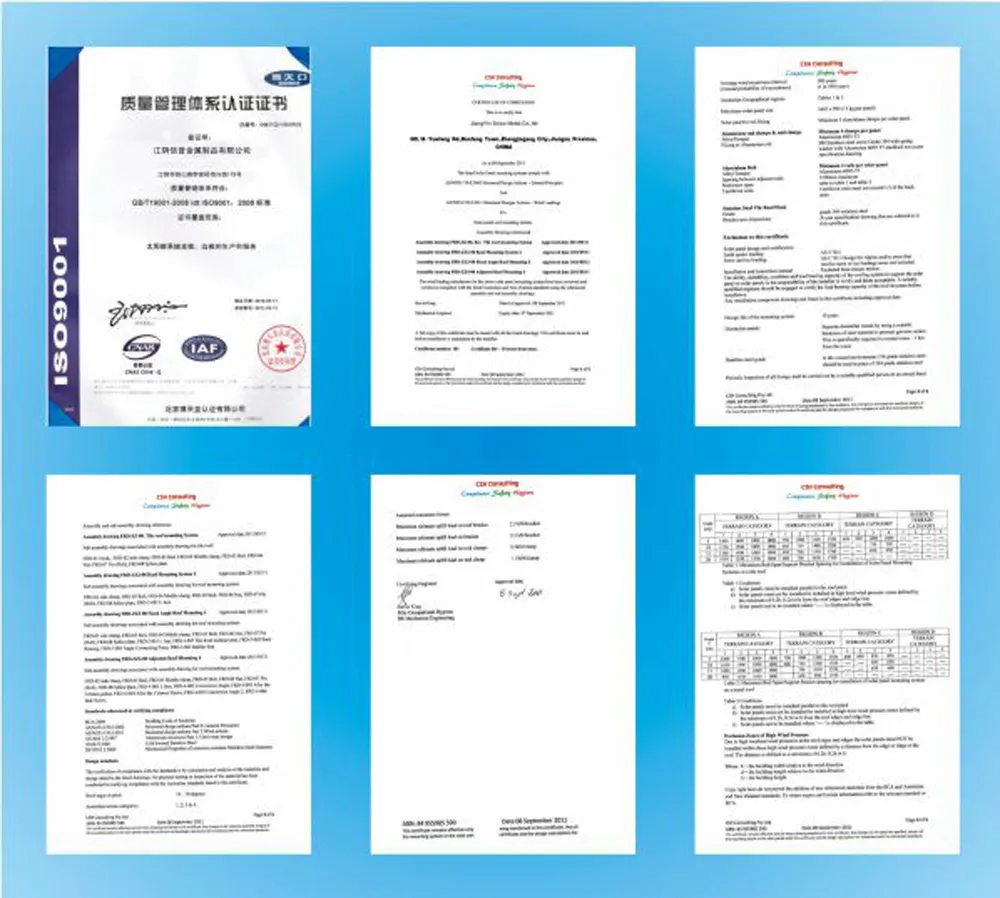

🟦 Factory & Certifications
📋 System Customization Requirements
In order to provide the most suitable system, please offer the following information:
- Dimensions of solar panels (Length * Width * Thickness)?
- Solar panels array layout?
- Installation site (Type of rooftop or ground)?
- Required tilt angle?
- Local wind load and snow load requirements?
🟦 Frequently Asked Questions
What is the minimum order quantity (MOQ)?
The MOQ is 500kg for general aluminum profiles. For new custom products, the MOQ is 5 tons.
Can you produce profiles based on custom drawings?
Yes, we have professional engineers who can design CAD drawings and create molds according to your specific requirements.
What certifications and standards do you follow?
We are ISO certified. Our production follows international standards including DIN, AAMA, AS/NZS, and China GB.
How long is the delivery time?
Molds and samples usually take 2-3 weeks. Mass production is typically completed within 3-4 weeks after deposit and order confirmation.
What are your standard packaging options?
Commonly we use shrink films or kraft paper. We can also provide customized packaging based on your specific needs.
What are the accepted payment terms?
We usually accept T/T (30% deposit and balance before shipment) and L/C.
