| Model NO. | PD-AD-FRL-01 |
| Certification | CE |
| Application | Commercial |
| Material | Aluminum Alloy |
| Type | Roof Bracket |
| Color | Silver |
| Snow Load | 1.4 Kn/M2 |
| Wind Speed | 60 M/S |
| Surface Treatment | Anodized |
| Specification | Component: AL6005-T5; Parts: AL6005-T5/SUS304 |
| Production Capacity | 10000 Set/Month |

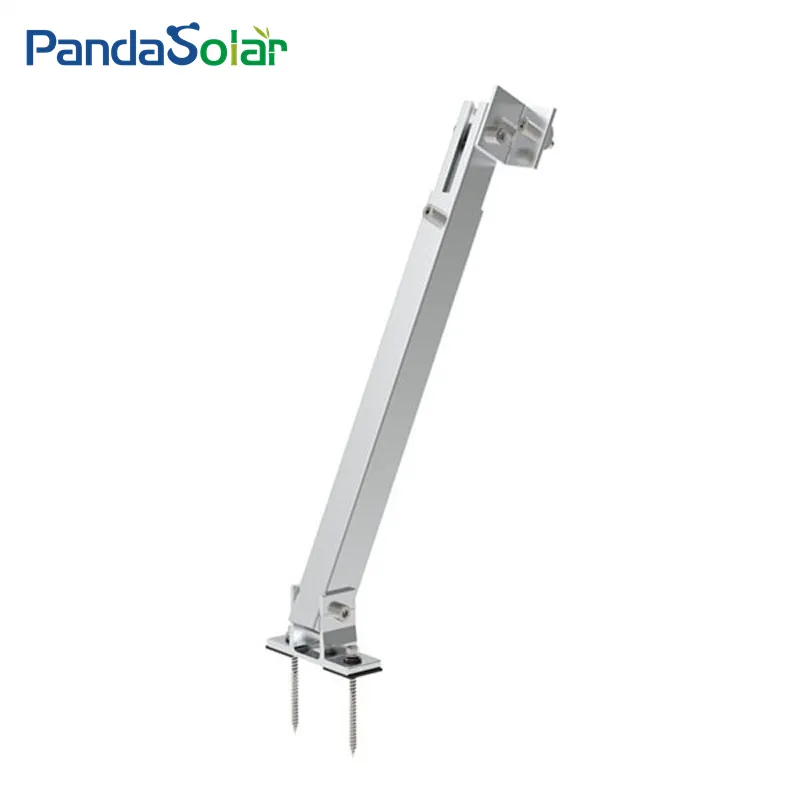

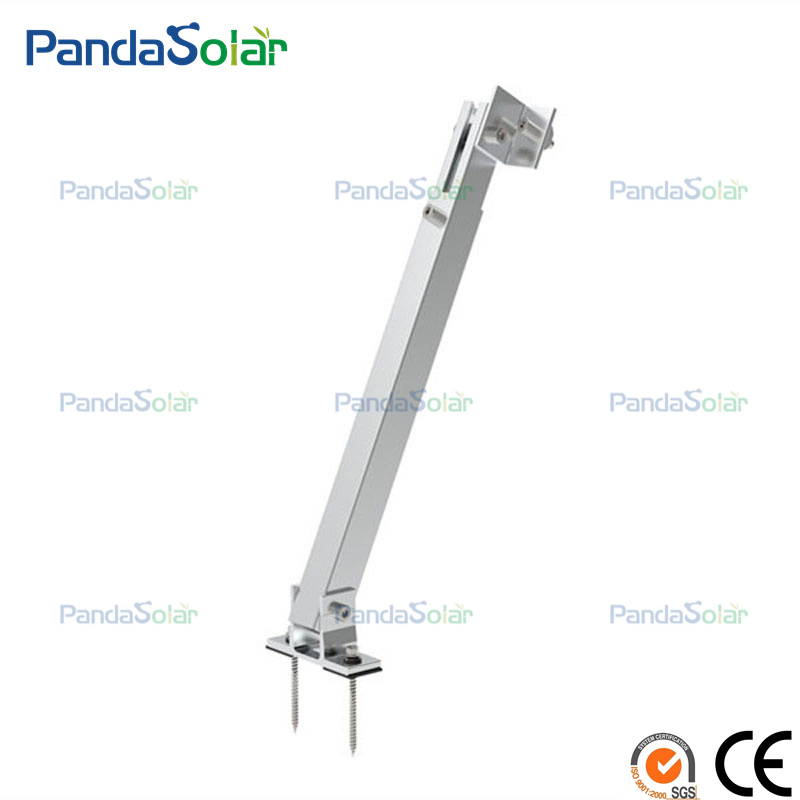

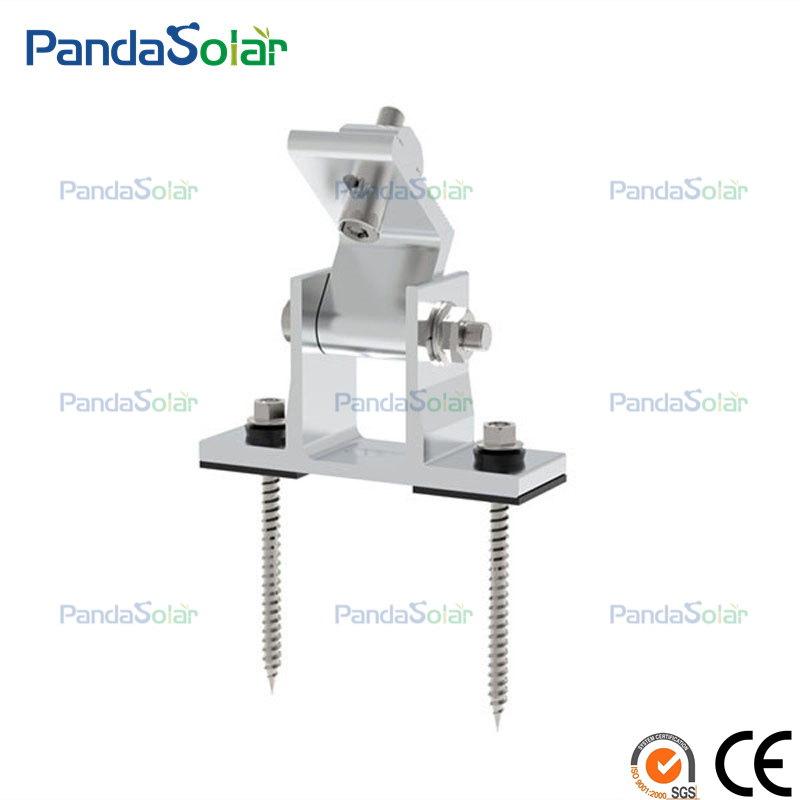

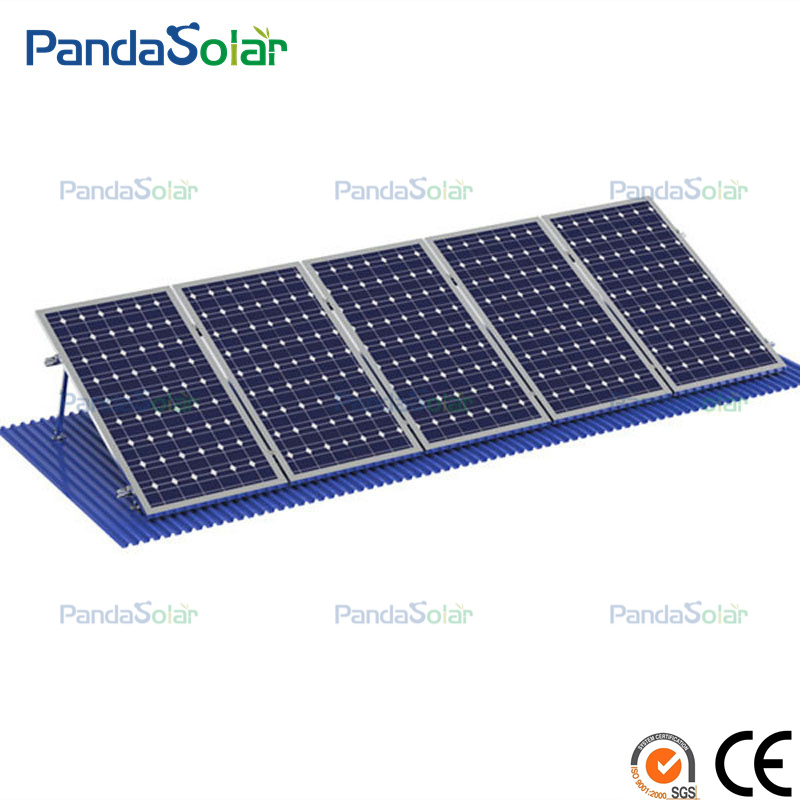

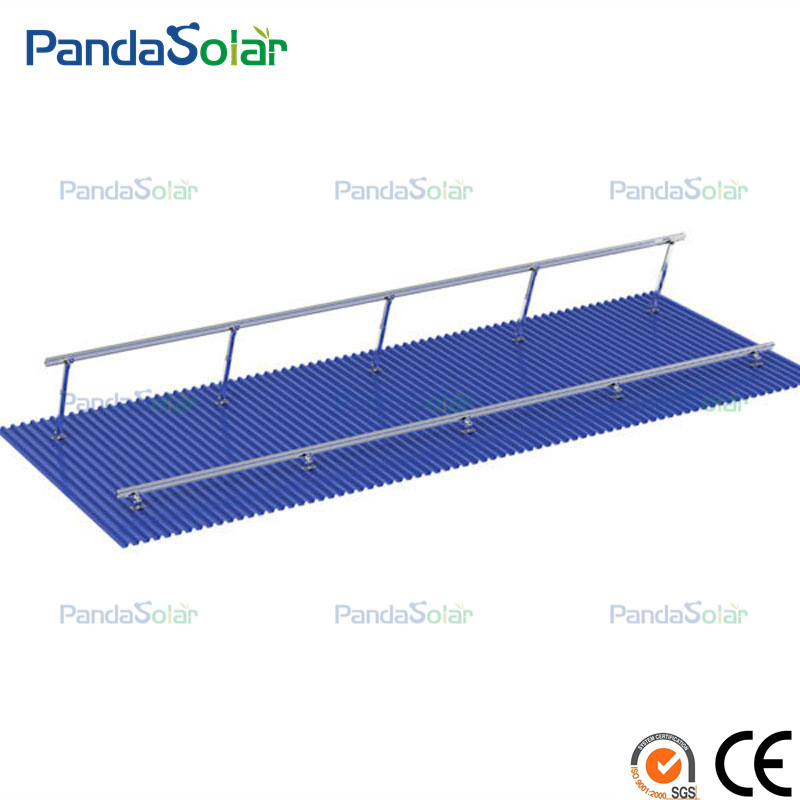

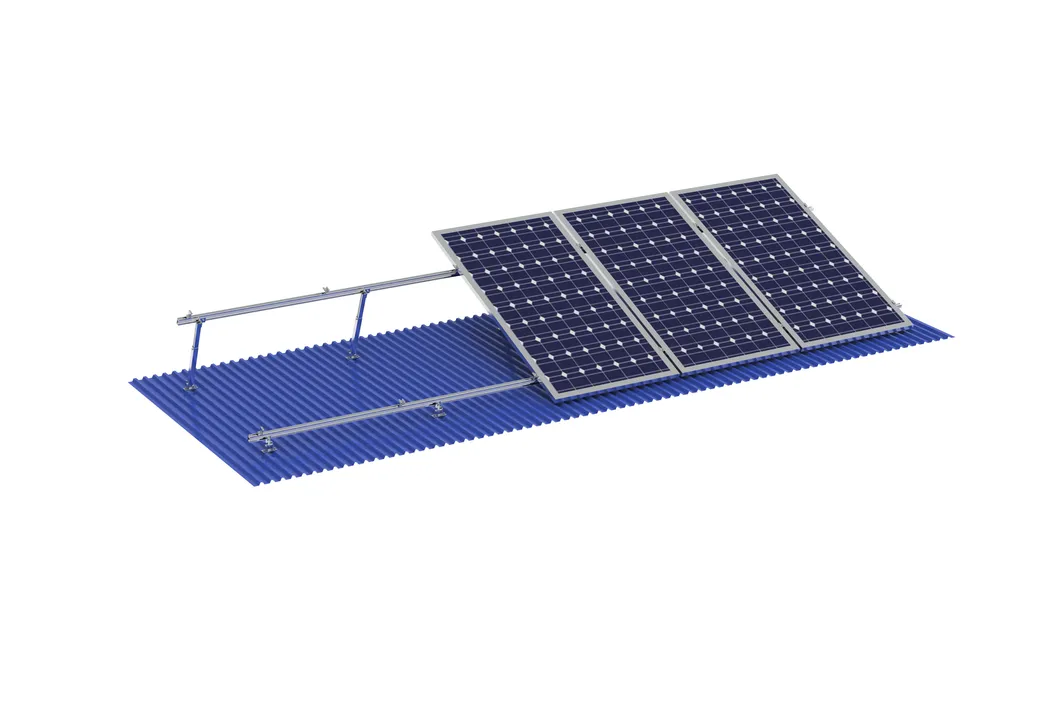

The adjustable front/rear leg is designed for PV modules on Metal Roof Mounting Systems. The classic adjustable range is available at 10-15 degrees, 15-30 degrees, or 30-60 degrees. Made of high-strength AL6005-T5, the structure is simple and easy to assemble, making it suitable for almost all trapezoidal metal roof solar panel installations.

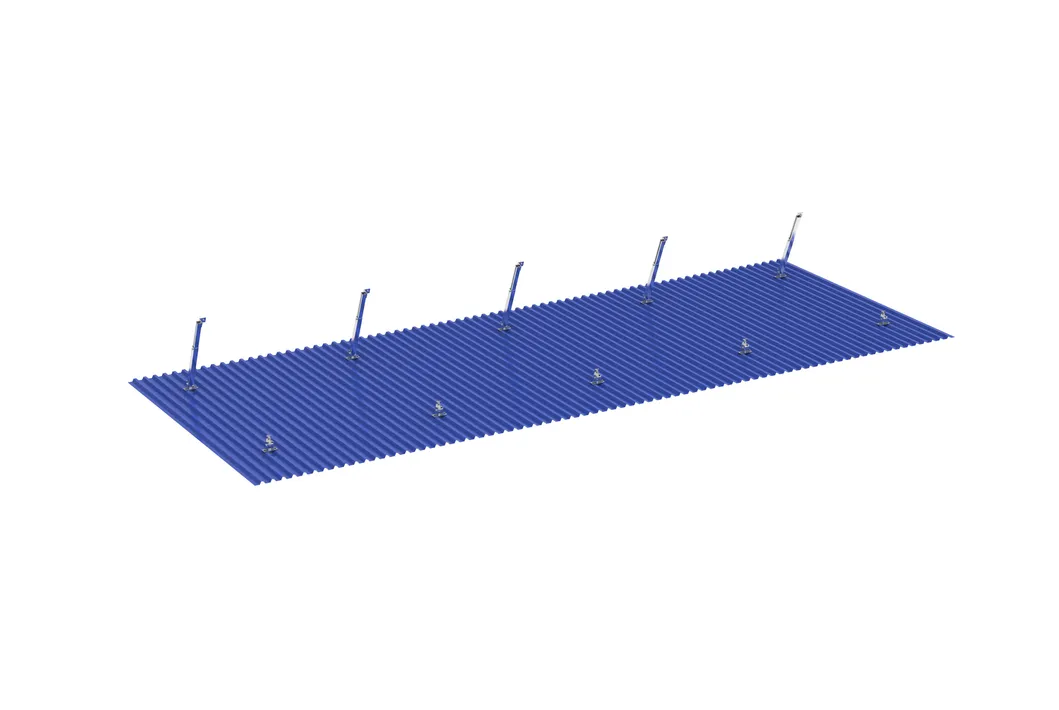

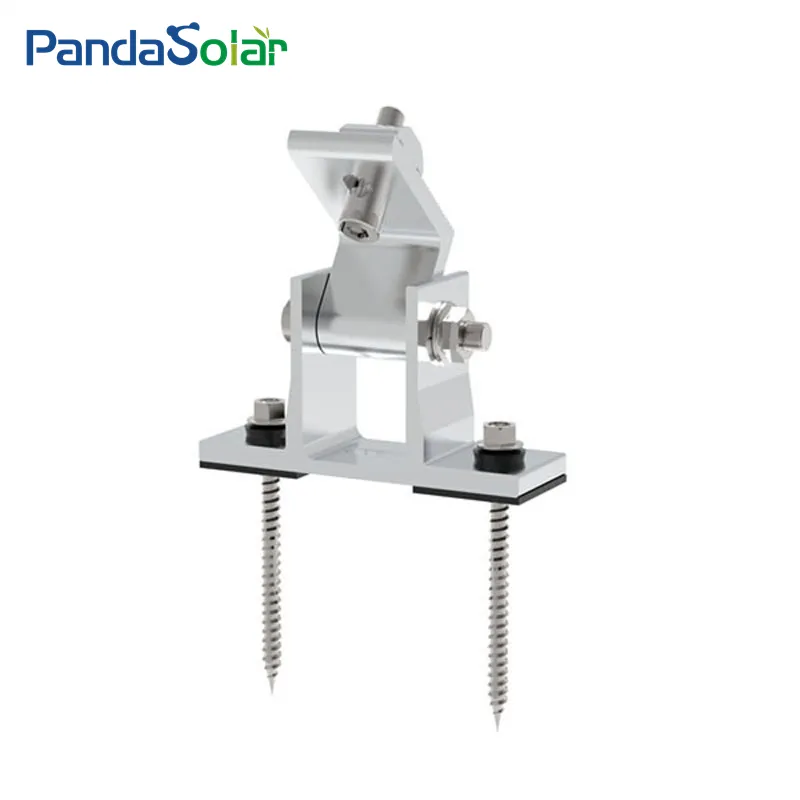

Attach the rear leg and front leg to the roof with self-drilling screws. Confirm the angle required and fasten the hexagon bolt on the adjustable rear leg.

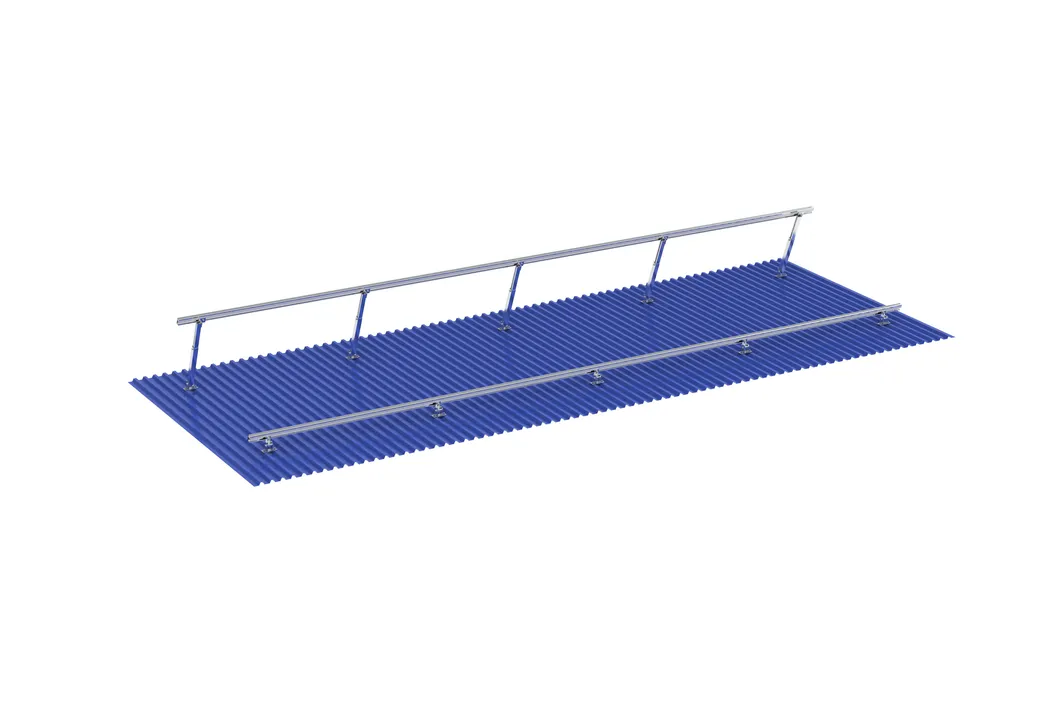

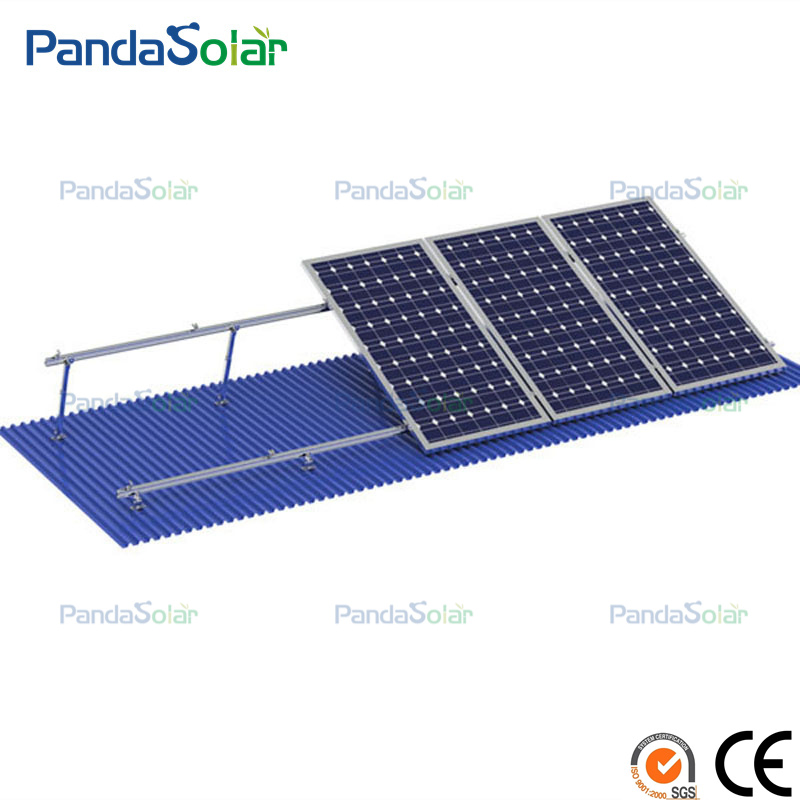

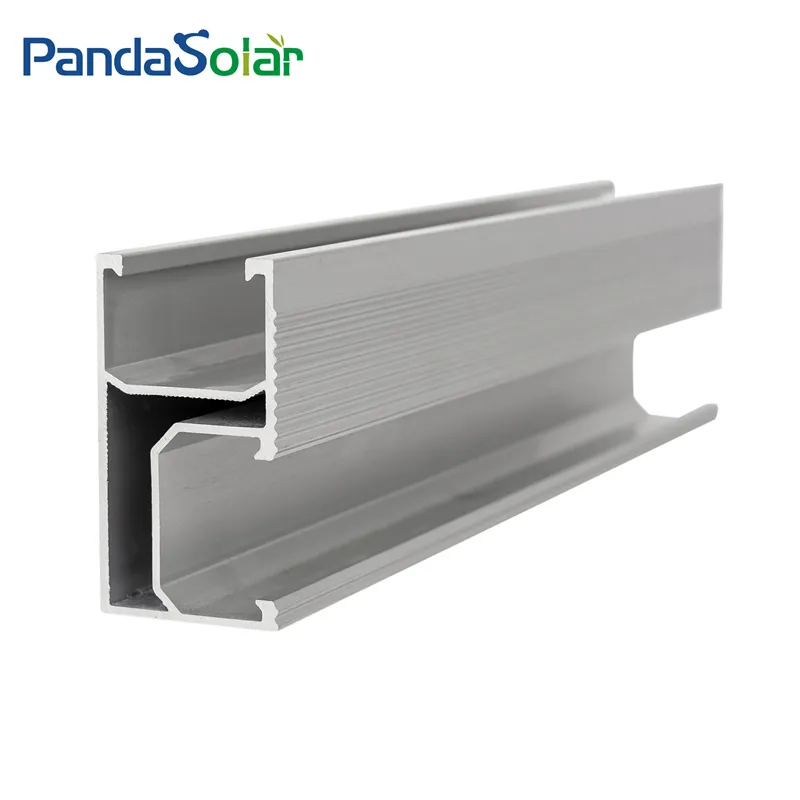

Install the solar rail (R50 rail) to the front leg and rear leg securely.

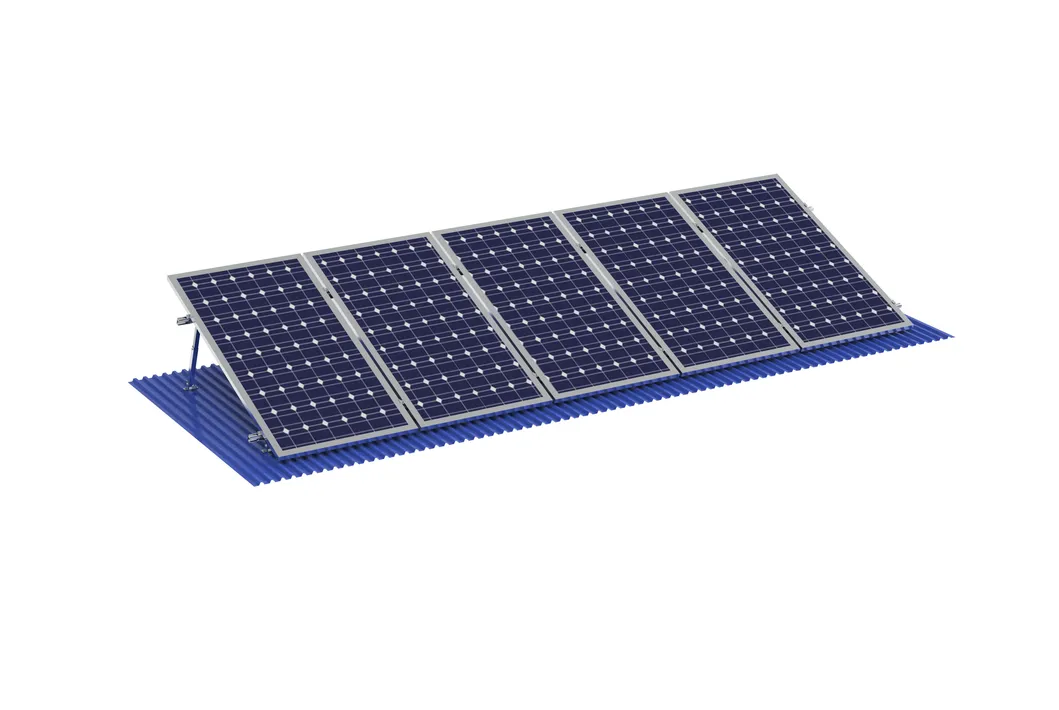

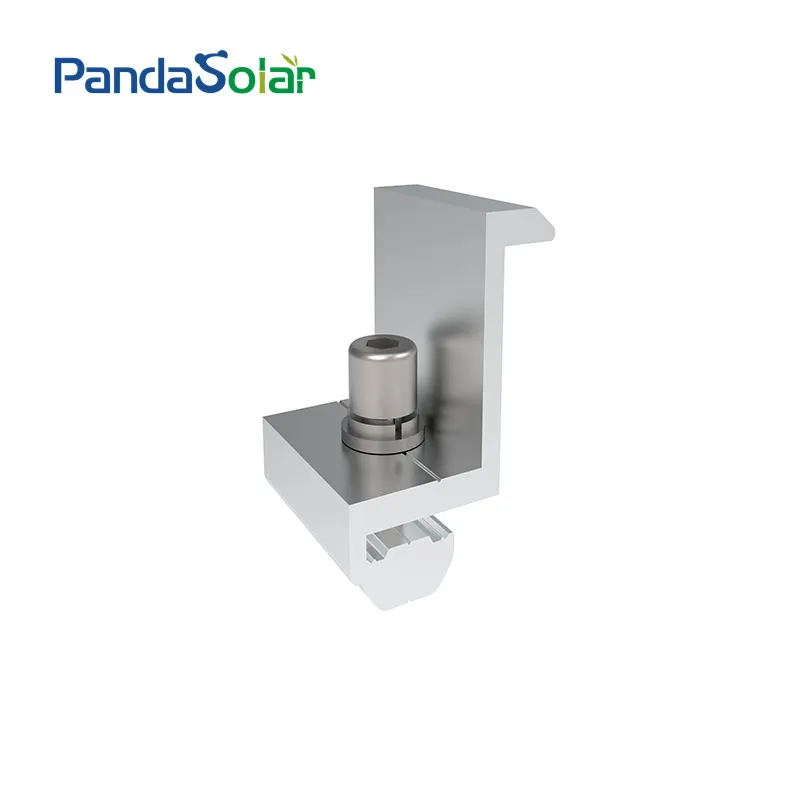

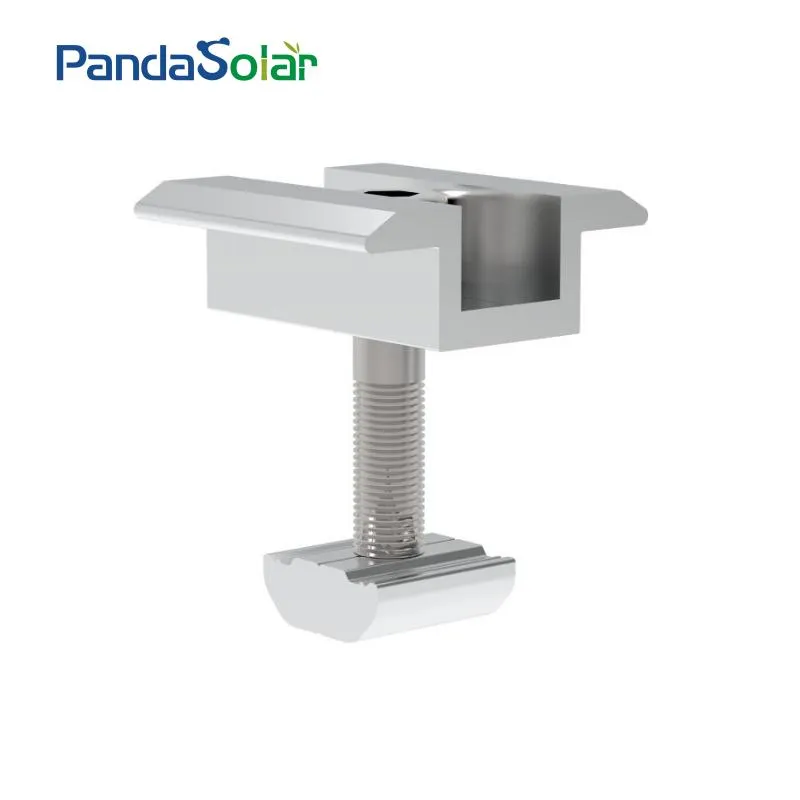

The solar panel is fixed to the adjustable mounting structure using solar end clamps and middle clamps.
| Structure Material | AL6005-T5 (Anodized) |
| Components | AL6005-T5 & SUS304 |
| Wind Speed Range | 0-45 M/S |
| Snow Load Range | 0-1.4 KN/M2 |
| Design Standards | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 Years |

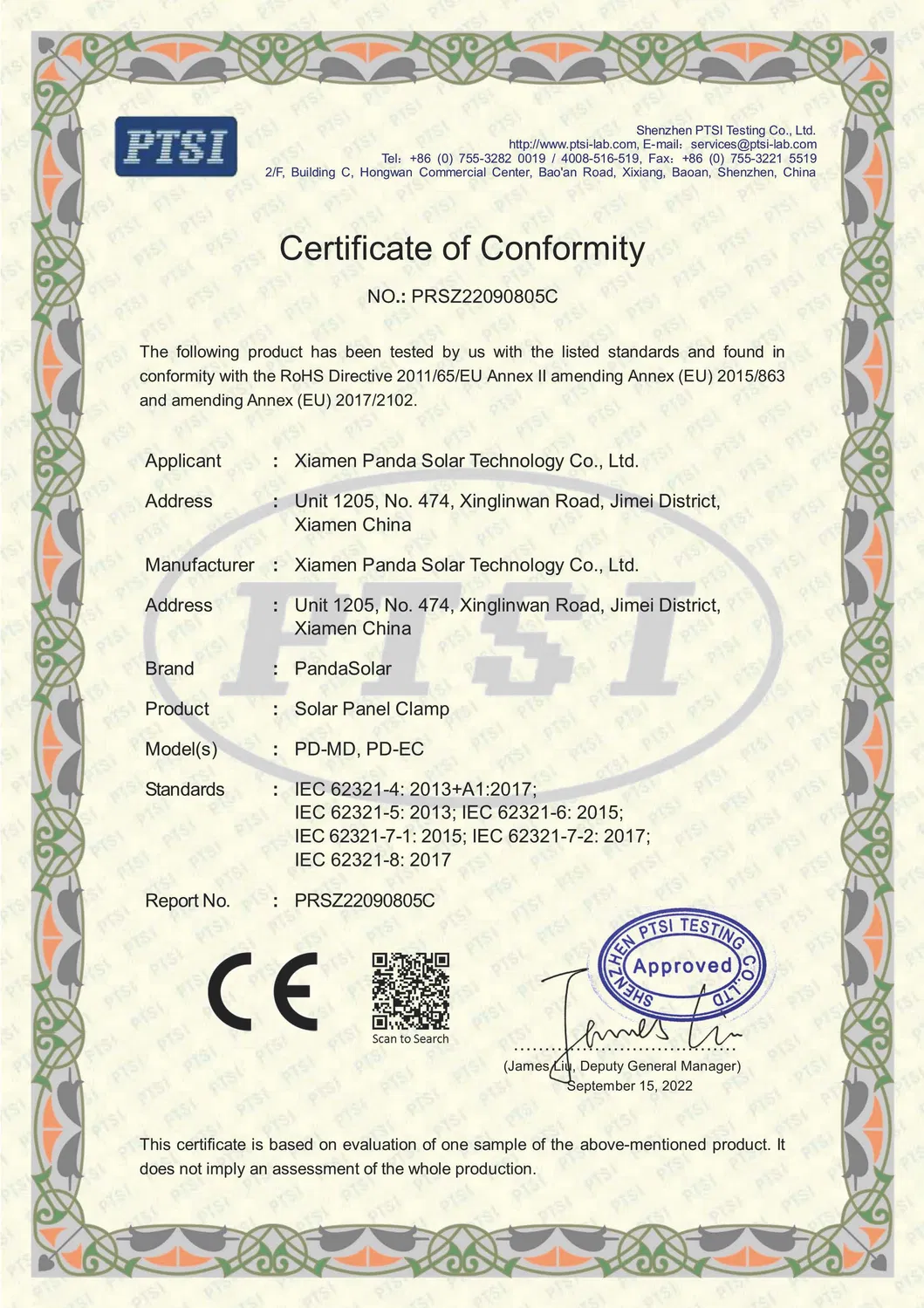

Our systems including solar roof mounting brackets, ground mounting brackets, solar carports, and aluminum profiles are fully certified.

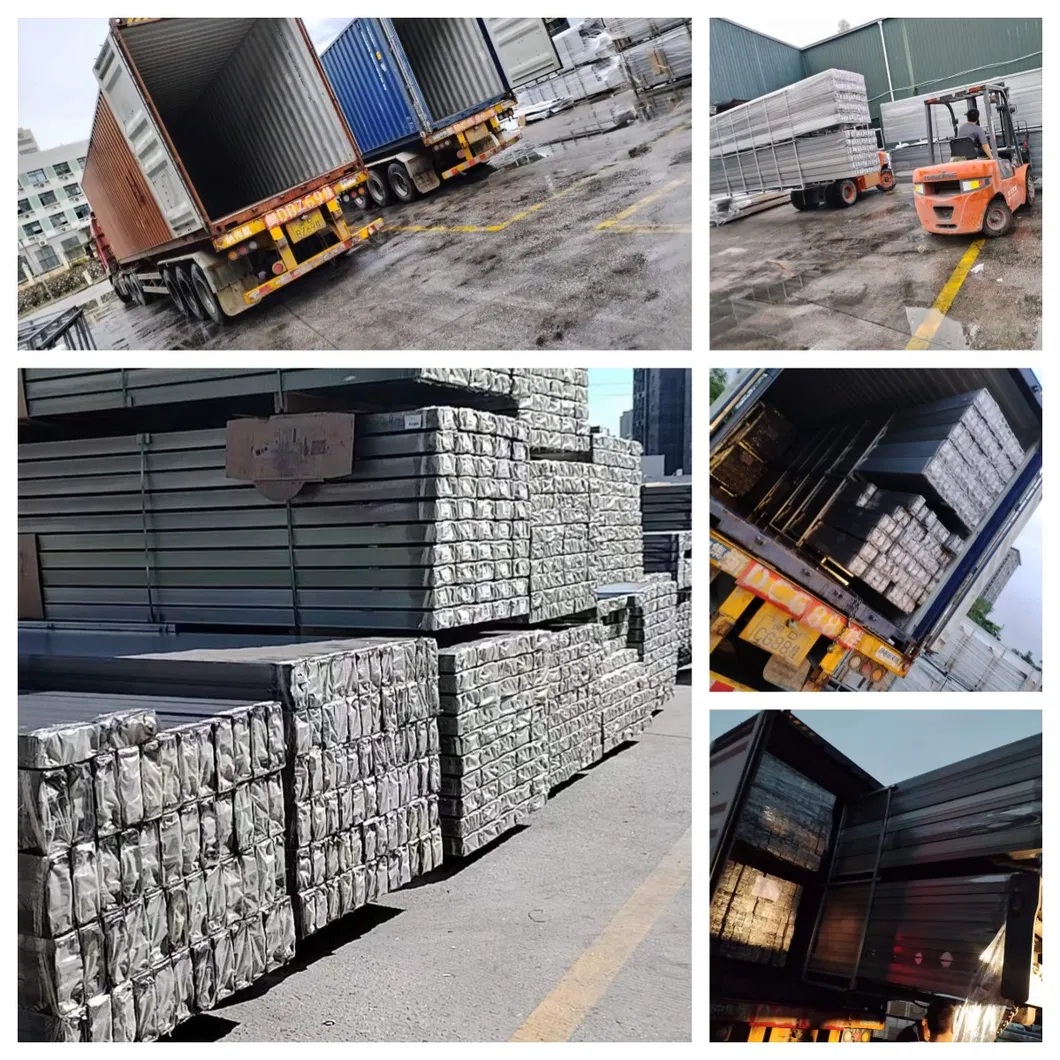

Each item is packed in cartons, and several cartons are packed onto plates. Our packaging meets international shipping standards to ensure adequate protection against damage during transit.

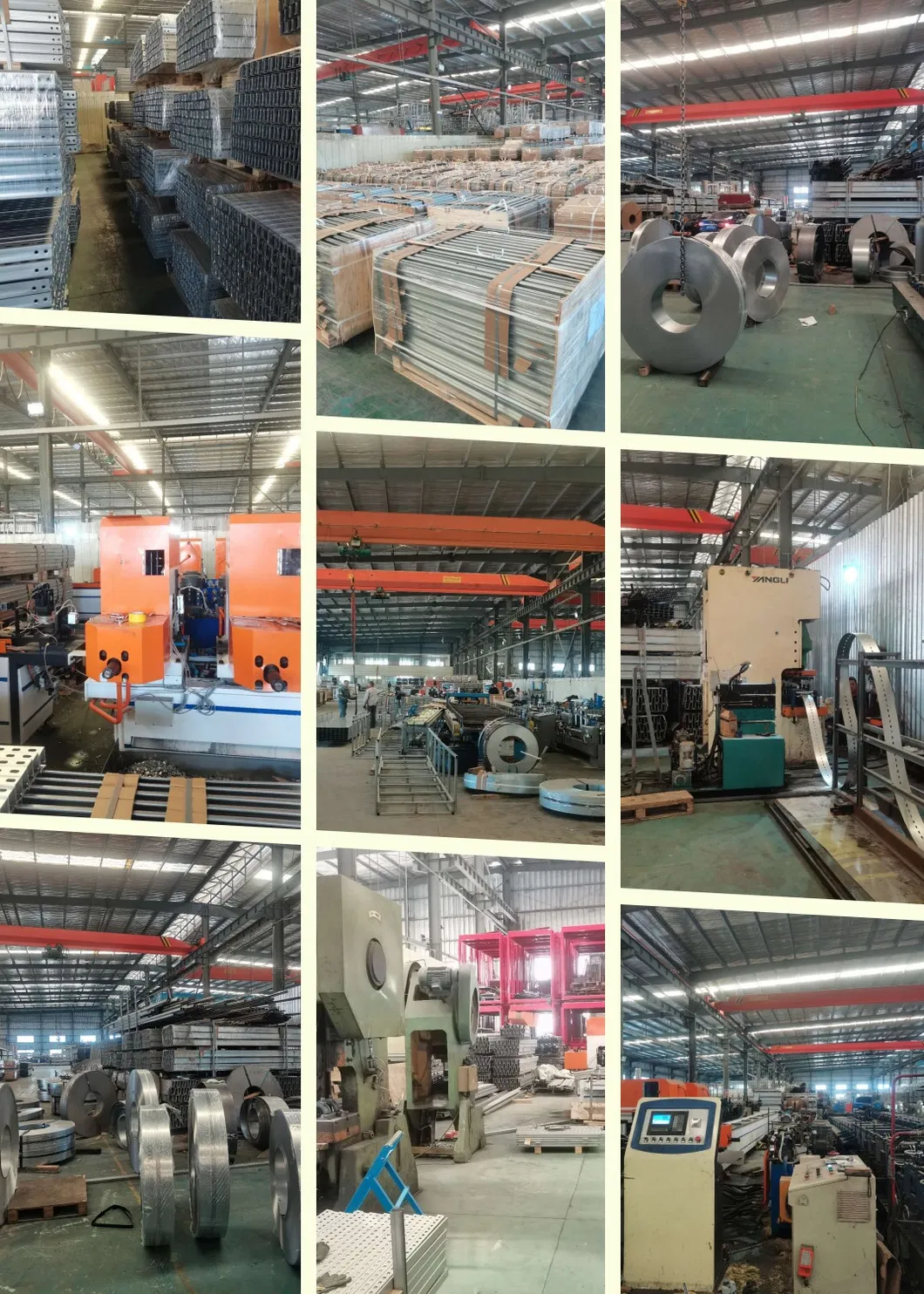

We operate specialized workshops for aluminum and steel processing. Our facilities handle independent cutting, drilling, stamping, and forging to maintain high precision and monthly productivity of 40-50MW.
