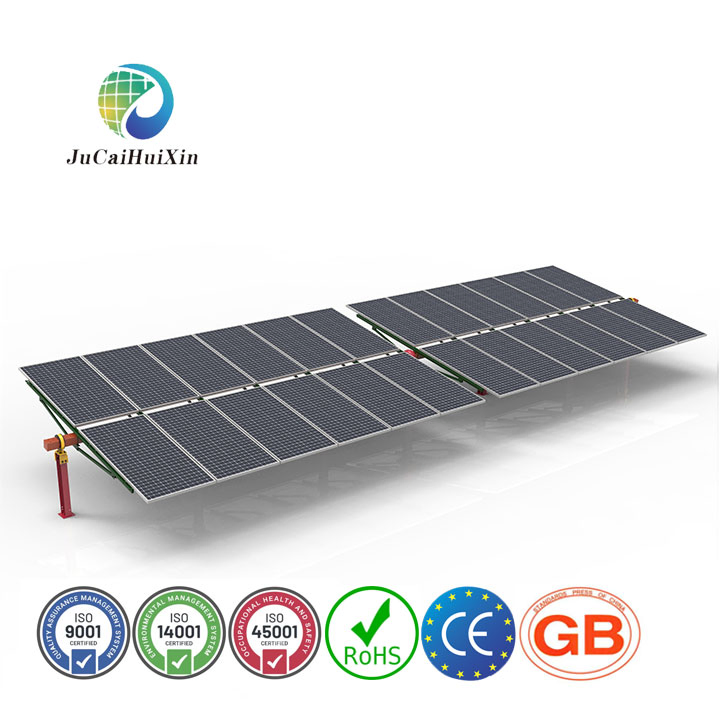

Adjustable Single Axis Solar Racking for Enhanced Energy Efficiency

1 / 5

Adjustable Single Axis Solar Racking for Enhanced Energy Efficiency

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.

Single-axis Bracket-005

Certification

GB, ISO, CE, RoHS

Application

Commercial

Material

Steel

Type

Ground Bracket

System Type

2~5rows Linked Type/Independent Type

Motor

DC24vgear Motor/1.5ax1 (DC24V/1.5A×1)

Max.Wind Speed

24m/S (Operation) / 37m/S (Horizontal)

Rust Protection

Hot-Dipped Galvanized Steel

Operation Temp

-40°℃ ~ +75℃

Control Model

Astronomical Algorithms+ Tilt Sensor

Accuracy

≤2°(Configurable)

Protection

IP66 / Wind / Snow / Rain

Capacity

100000 Tons / Year

Product Description

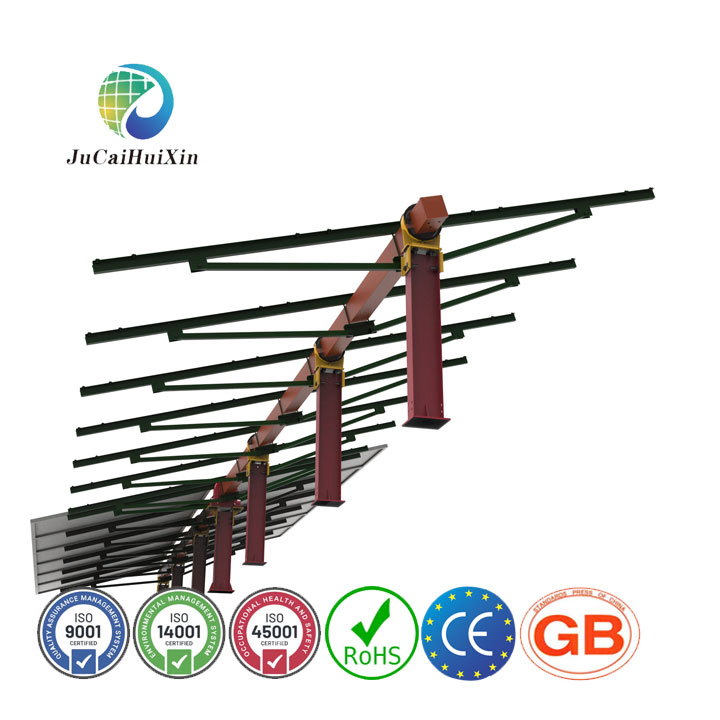

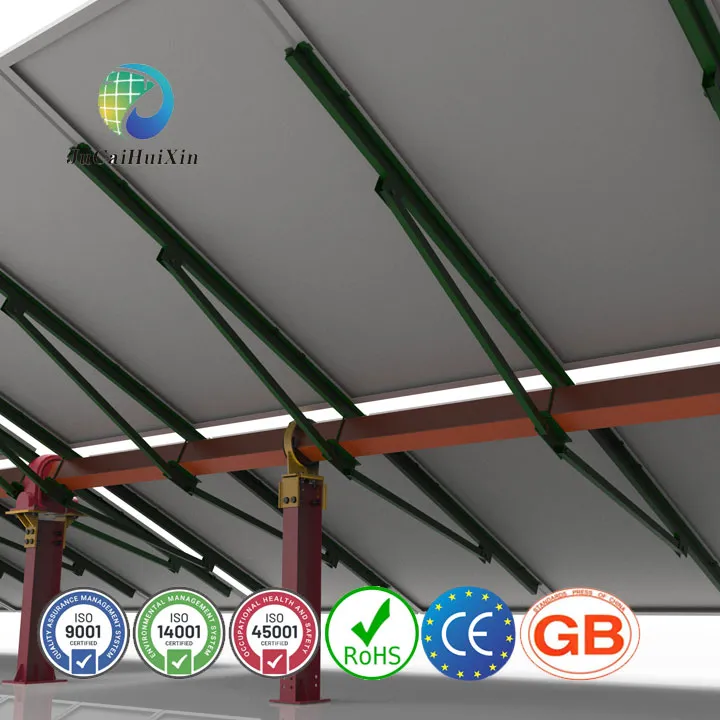

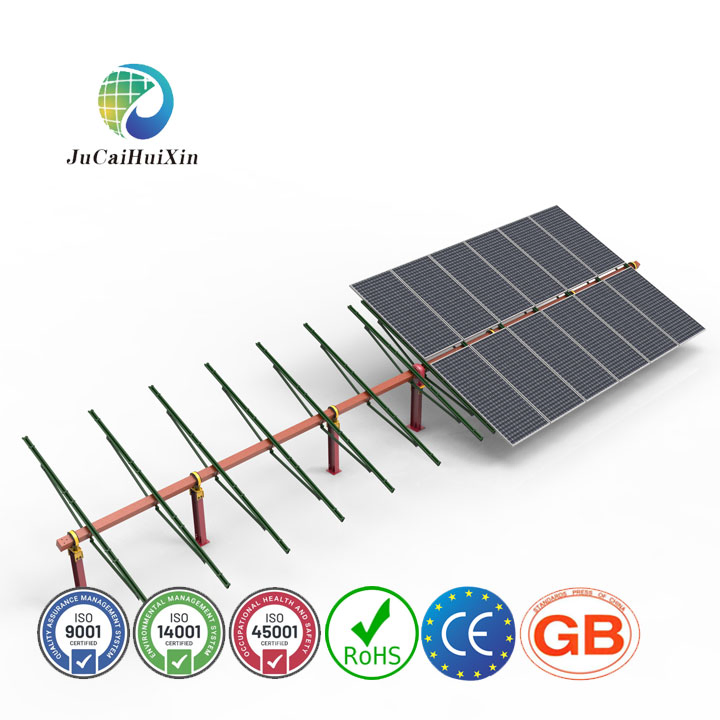

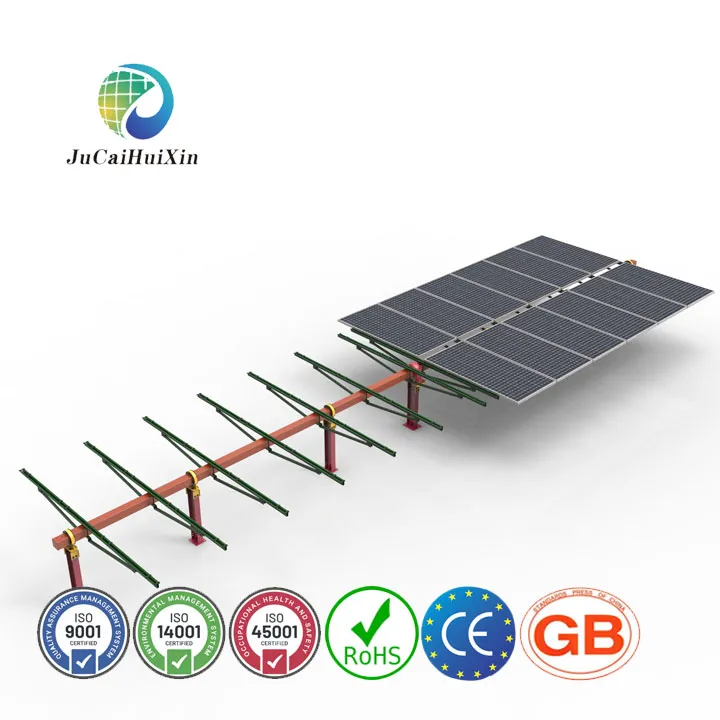

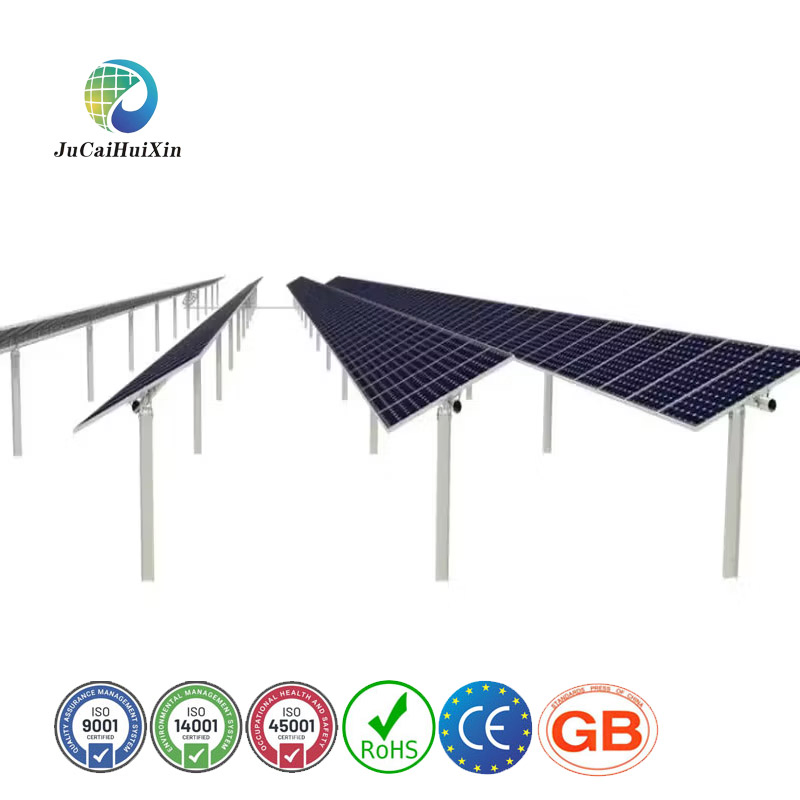

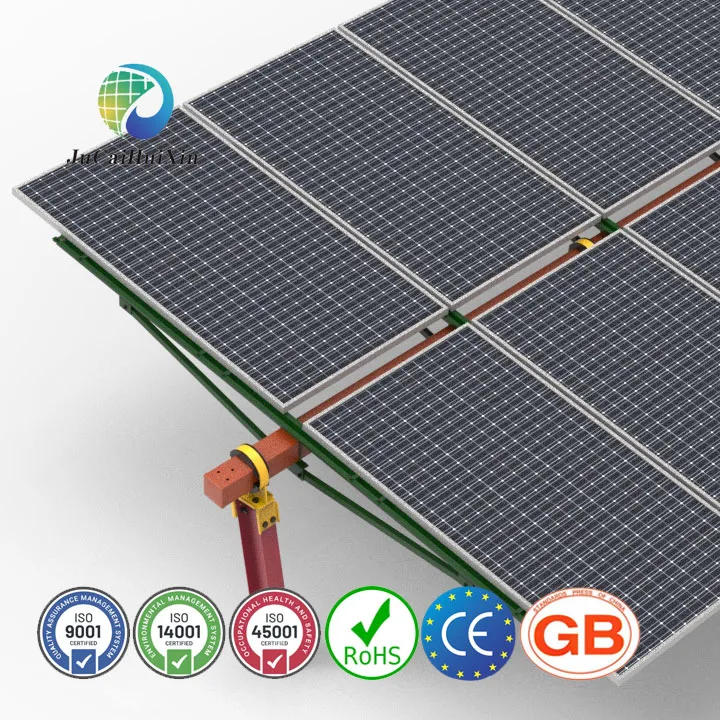

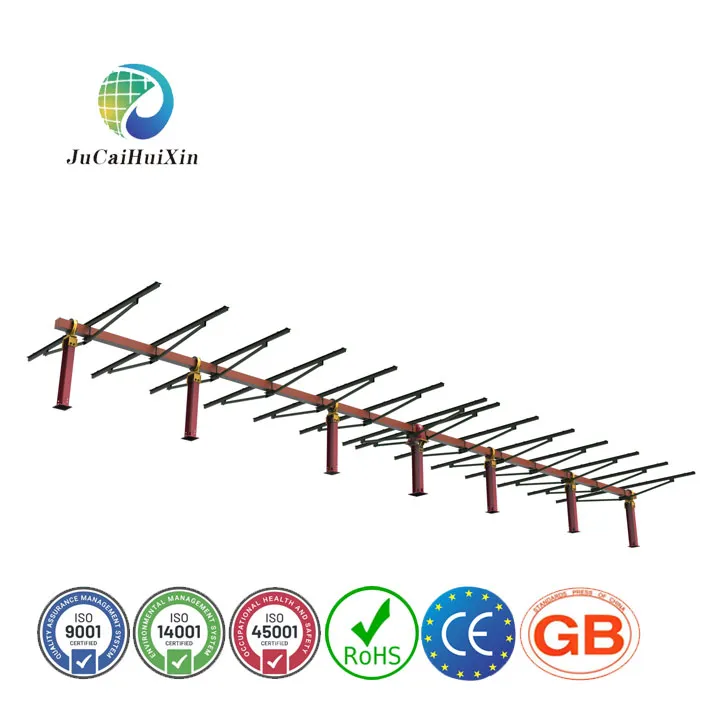

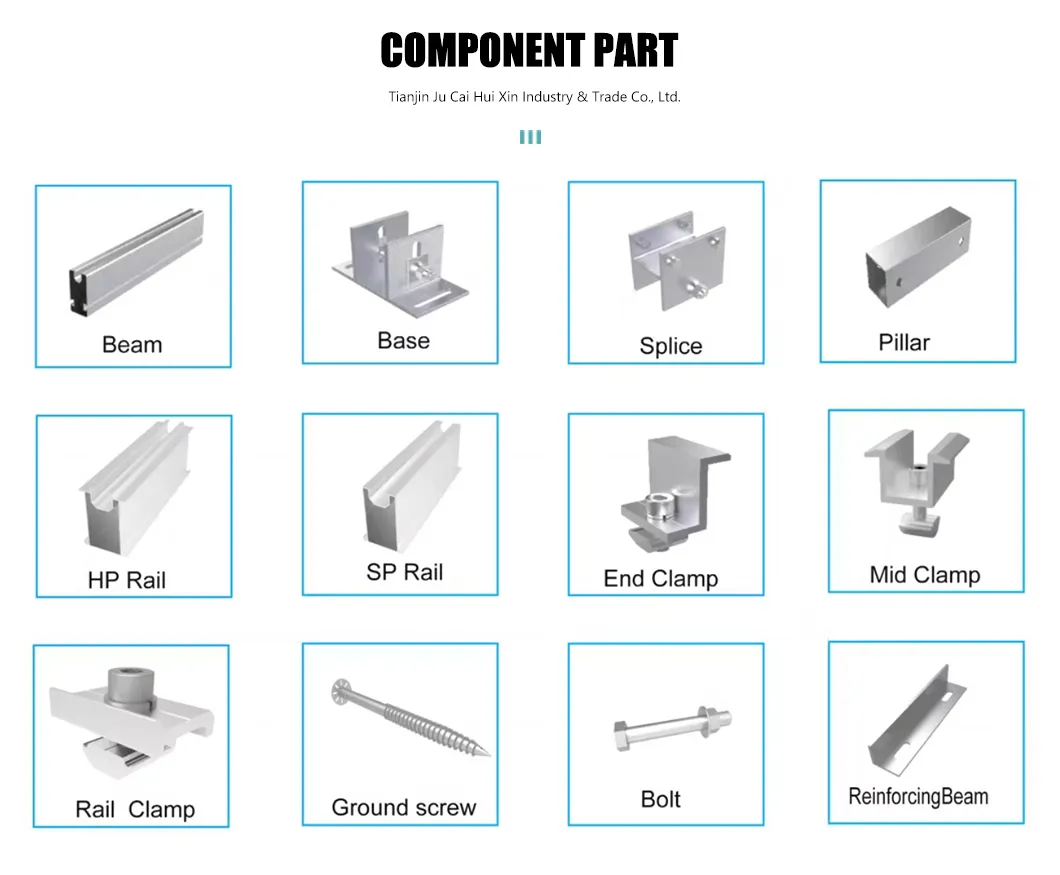

Hot Dip Galvanized Coated Tiltable Single Axis Solar Tracking Racking

Whether you are looking to harness solar power for your home or business, our Single-Axis PV Bracket is the perfect solution. This kit includes all the necessary components for a seamless installation process, making it a convenient choice for those looking to invest in renewable energy.

System type	Independent Drive
NO.of Panel	2-10 Piece(≤23 sq.m.)
Power Consumption	5.0Kwh/set/year
Max. wind speed in running	24 m/s
Max. wind speed in fat	40 m/s
Rust protection	Hot-dipped galvanized/superdyma
Azimuth angle tracking range	±45ºC
Elevation angle tracking range	45ºC
Control model	Time + GPS Control
Tracking accuracy	0.1°-2°(Adjustable)
Control tilt angle method	Manual remote control+remote computer control

Product Advantages

1. High power generation efficiency and intelligent tracking

Single axis automatic tracking: Real time tracking of the sun's trajectory through photosensitive sensors and PLC control, increasing daily power generation by 30%. Compatible with double sided components to utilize reflected light.

2. Super durability and load capacity

Hot dip galvanized steel: Certified by ISO 9001, with a salt spray corrosion resistance life of ≥ 30 years. Wind resistance level 15 (80m/s) and snow load 2.0kN/m².

3. Fast installation and low-cost maintenance

Pre-installed modular design saves 50% of labor costs (MW installation in 7-10 days). Non-lubricated bearings extend maintenance cycles to 5 years.

4. Flexible expansion and terrain adaptation

Supports installation on slopes ≤ 20%, with single row lengths up to 150m. Optional anti-sand/anti-snow accessories for desert or frozen soil environments.

Installation Steps

Foundation Construction: Spiral piles (sandy/frozen soil) or concrete foundations (depth ≥ 1.5m), spaced 4-6m apart.

Assembly of Main Structure: Assemble galvanized columns and beams, tighten bolts (torque 35-40N · m).

Drive System Integration: Install tracking motor and PLC controller, debug tilt accuracy (error ≤ 0.5 °).

Component Fixation: Fix the double-sided components with pressure blocks and simulate wind load testing.

FAQ

What are the advantages of hot-dip galvanizing (HDG)+epoxy coating?

HDG provides basic anti-corrosion and epoxy coating to resist UV and chemical corrosion, with a dual protection life of 25 years, which is twice as long as single galvanizing.

Is the remote control signal stable in remote areas?

Adopting an enhanced 2.4GHz signal (with a coverage radius of 100m), it has strong anti-interference ability and supports repeater expansion via optional accessories.

Is manual mode laborious to operate?

Built-in turbo reduction device reduces torque. With a shaking handle operating torque of ≤ 5N · m, it is easily adjustable for any operator.

What is the Minimum Order Quantity (MOQ) and Warranty?

MOQ is 200 sets (approximately 0.08MW). We offer a 10-year structural warranty and a 3-year warranty for motors and controllers.

Can we customize colors or logos?

Yes, we support customized RAL color cards with epoxy coating and provide laser logo engraving services (MOQ 1 set).

What is the tracking accuracy of the system?

The system utilizes astronomical algorithms and tilt sensors to achieve a tracking accuracy of ≤2°, which is configurable based on project requirements.
