Adjustable Solar Panel Mounting Inclination Structure Rack Tilt Legs for Solar Panel Mounting Bracket System

i Basic Information

Model NO.

GT-AD15-30

Certification

GB, Certificate of Utility Model Patent

Application

Commercial

Material

Aluminum Alloy

Type

Roof Bracket

Product Name

Solar Adjustable Tilt Legs

Surface Treatment

Anodizing 13 Um

Max Wind Speed

up To 130mph(60m/S)

Design Snow Load

up to 30PSF(1.4kN/M2)

Panel Direction

Vertical or Landscape

Duration

25 Years

Capacity

500,000 pairs/Month

★ Product Description

ECONOMIC & ENERGY SAVING

Solar adjustable mounting bracket is made of Al6005-T5 material, lighter weight than carbon steel, high strength & resistance corrosion, easy installation, no harmful waste is generated.

CORROSION RESISTANCE

All aluminum profiles feature anodized surfaces that deliver excellent resistance to corrosion, ensuring reliable and long-lasting performance in harsh weather conditions.

OPTIMIZED EFFICIENCY

Precisely designed tilt adjustments and mounting angles allow photovoltaic modules to be positioned for maximum sunlight exposure, boosting power generation efficiency.

⚙ Technical Parameters

TECHNICAL SPECIFICATIONS
Product Name	Solar Adjustable Tilt Legs
Material	Aluminum 6005-T5 & SUS304
Surface Treatment	Anodizing 13 um

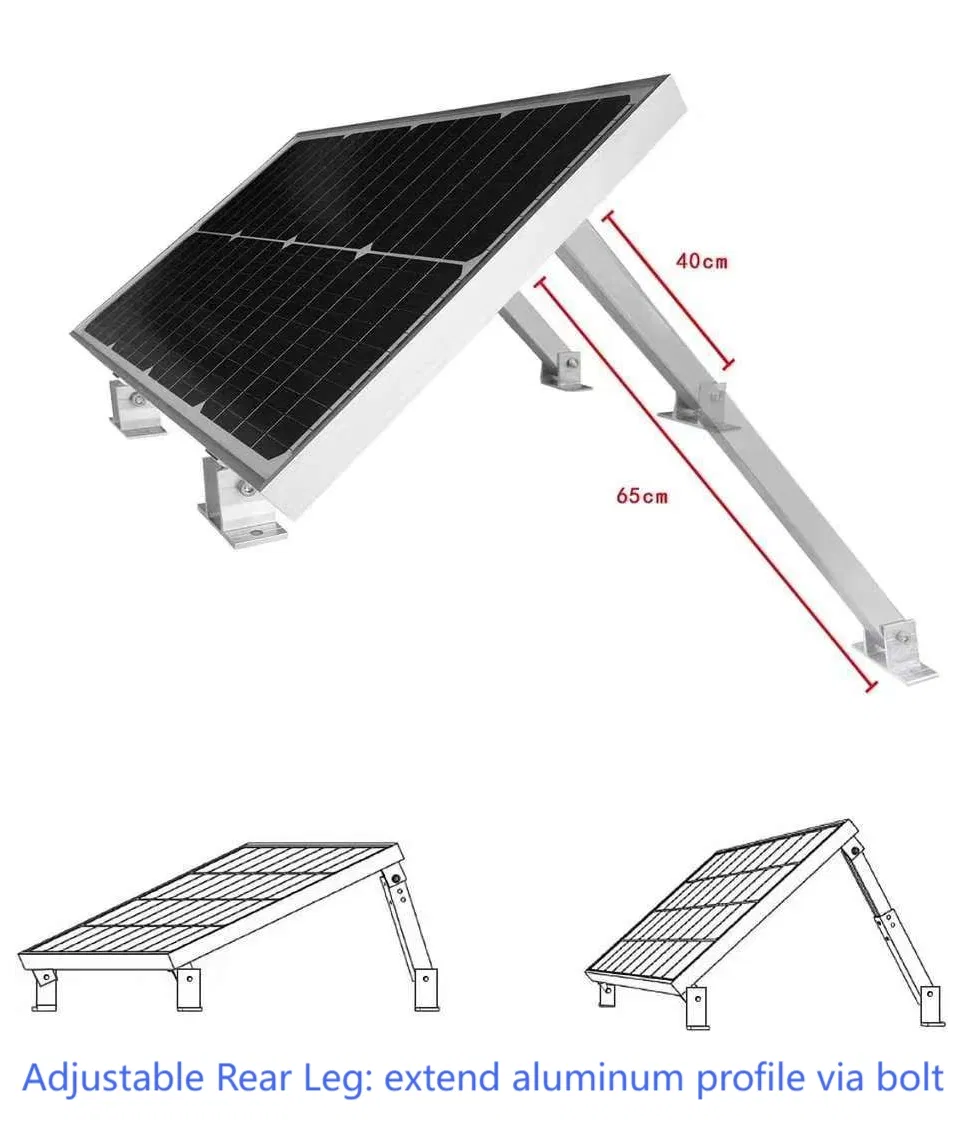

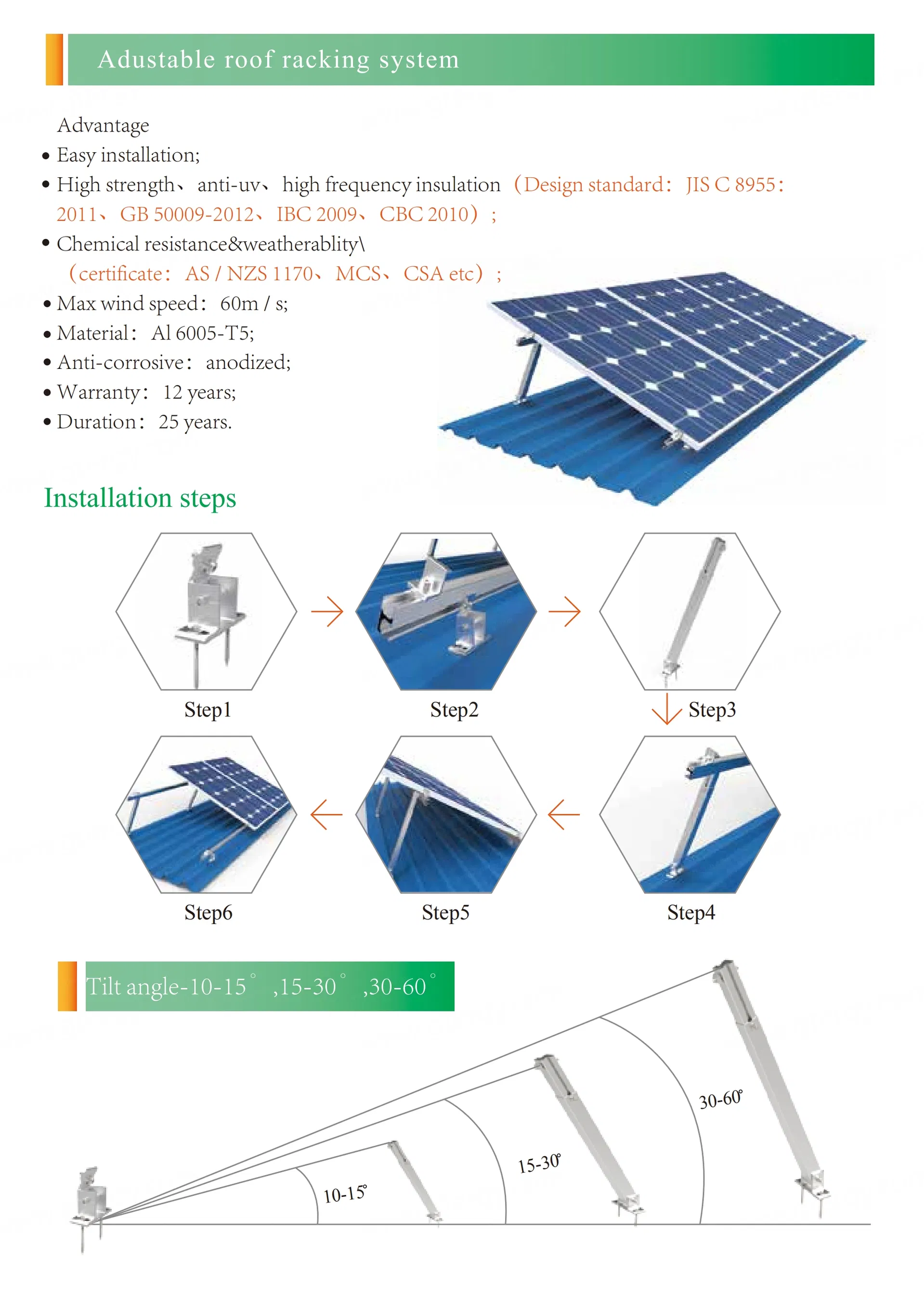

Tilt Angle	10°-15°; 15°-30°; 30°-60° (Customized available)
Max Wind Speed	Up To 130Mph (60m/s)
Design Snow Load	Up To 30Psf (1.4KN/m2)
Design Standard	JIS C 8955 2011, GB50009-2012, 1BC 2009, CBC2010
Installation	Tin Rooftop or Flat Concrete Open Space
Warranty	12 Years
Service Life	25 Years

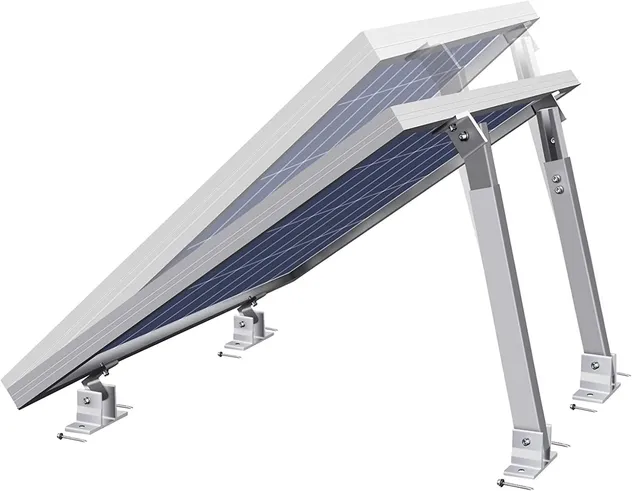

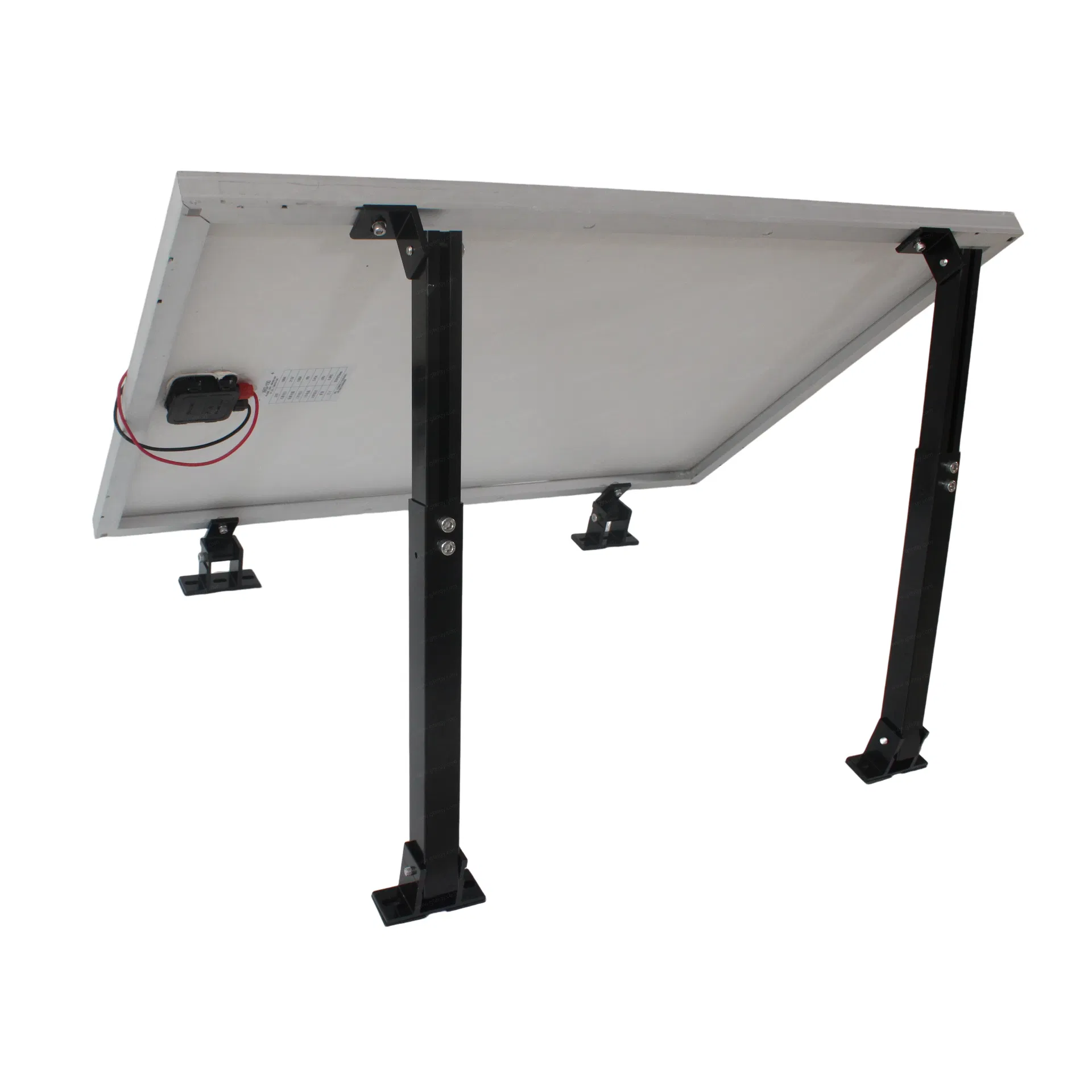

📷 Detailed Photos

Versatile Applications: Easy to installation solar panels on pitched rooftops or concrete open spaces. Compatible with most residential and commercial projects.

? FAQ

Q1: Are you a factory or trading company?

A: We are a direct manufacturer in China specializing in solar mounting systems for various power solutions including roofs, grounds, and RVs.

Q2: How about the production lead time?

A: Stock items require 1-3 days. Mass production typically takes 7-15 days depending on the specific order quantity.

Q3: Do you have any MOQ limit?

A: We do not have an MOQ request for our standard products; 1pc for quality testing is available. For ODM/OEM items, a minimum order is required due to technical and raw material reasons.

Q4: Can I request a free sample?

A: Yes, similar samples from our showroom are free, though freight is at your expense. For customized samples, a charge will apply.

Q5: How long does it take for goods to arrive?

A: Sample orders via DHL/FedEx take 3-5 days. Sea freight for large orders typically takes 15-30 days depending on the destination port.

Q6: What customized services do you provide?

A: We offer full OEM and ODM services, including customized logos, specific colors, and tailored packaging solutions.
