| Model NO. | PD-KL 700A |
|---|---|
| Certification | CE |
| Application | Commercial |
| Material | Aluminum Alloy |
| Type | Roof Bracket |
| Color | Silver/Black |
| Samples | Free Samples |
| Snow Load | 1.4 Kn/M2 |
| Wind Speed | 60 M/S |
| Surface Treatment | Anodized |
| Lead Time | 21 Days |
| Waterproof | Yes |
| Specification | Component: AL6005-T5; Parts: AL6005-T5/SUS304 |
| Production Capacity | 10000 Set/Month |

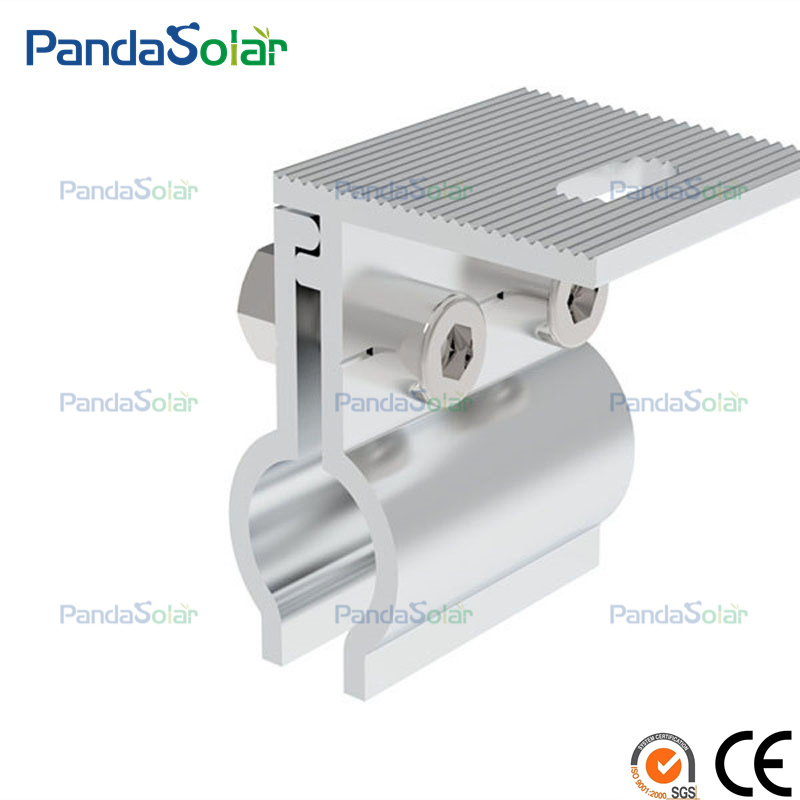

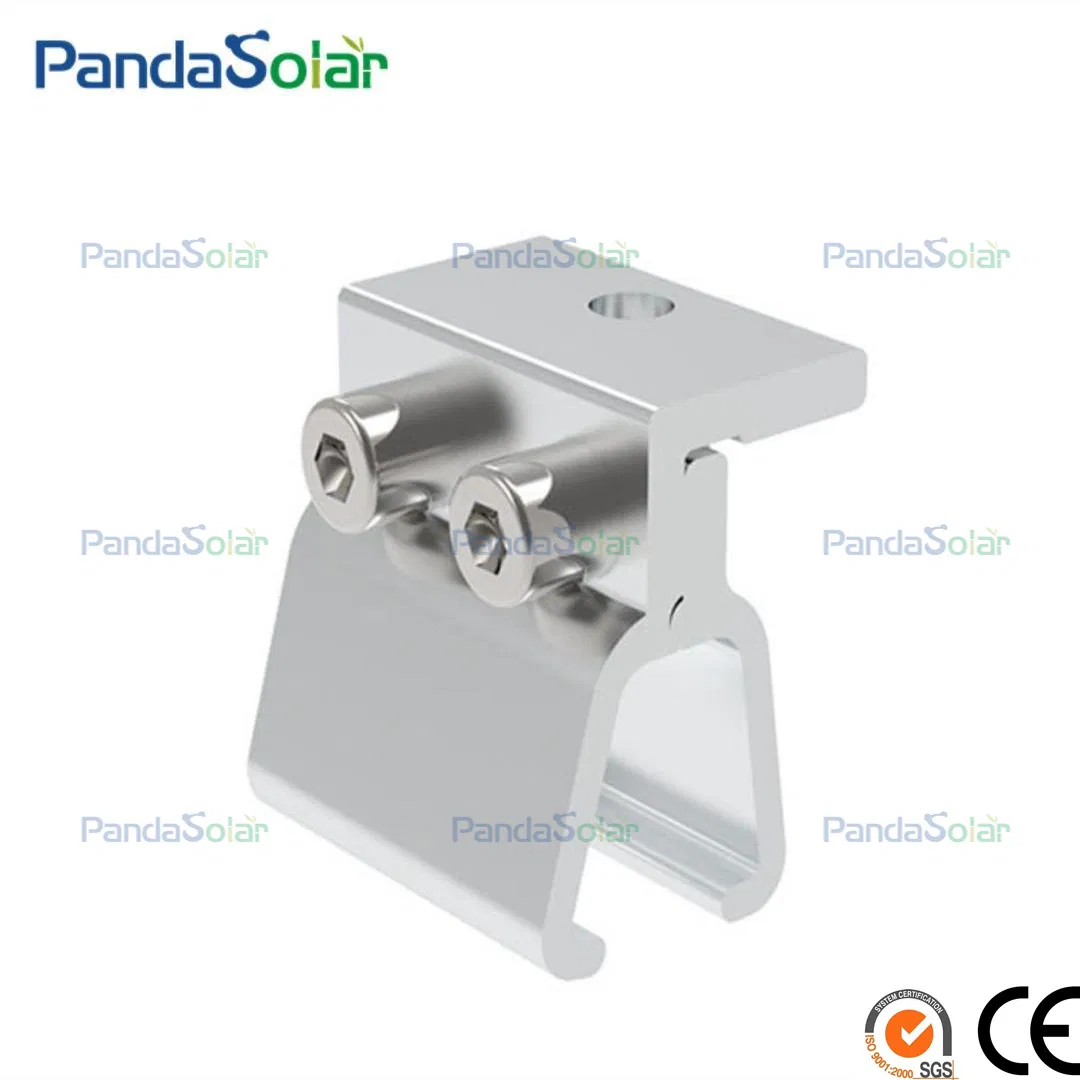

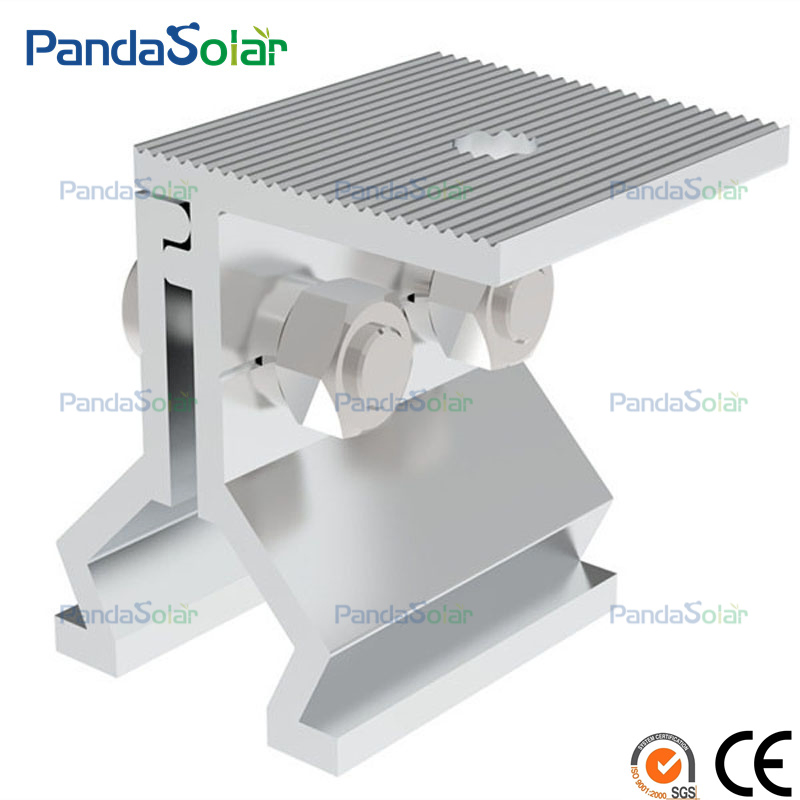

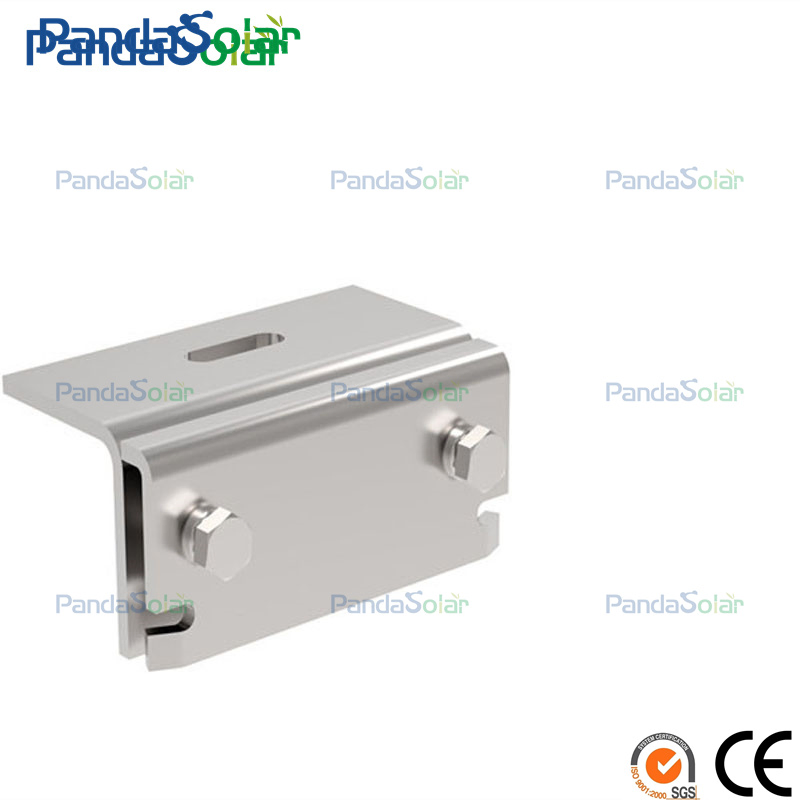

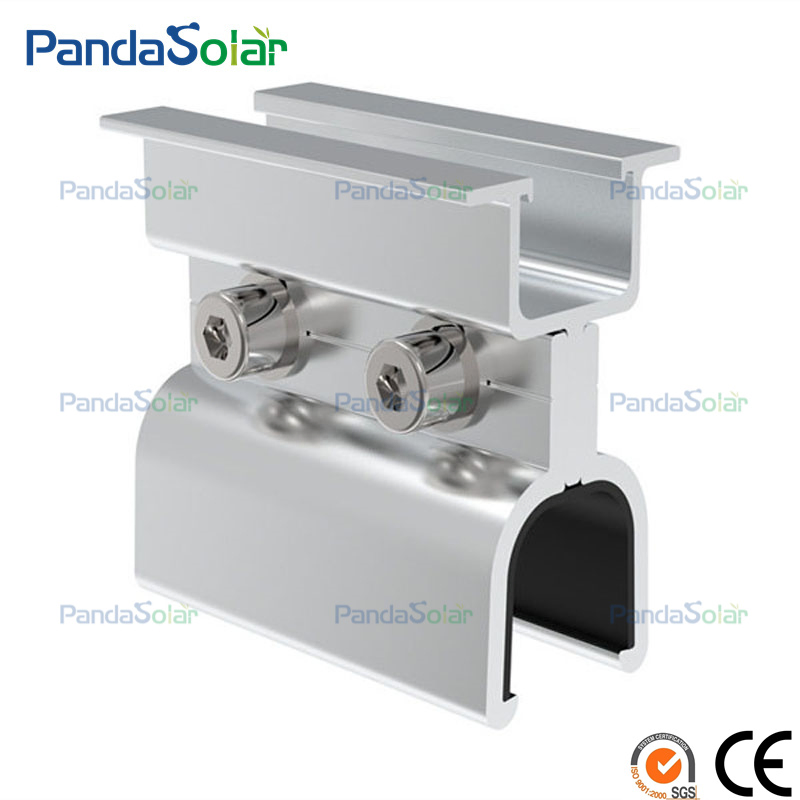

Customizable Aluminum Solar Standing Seam Klip Lok For Metal Roof Installation

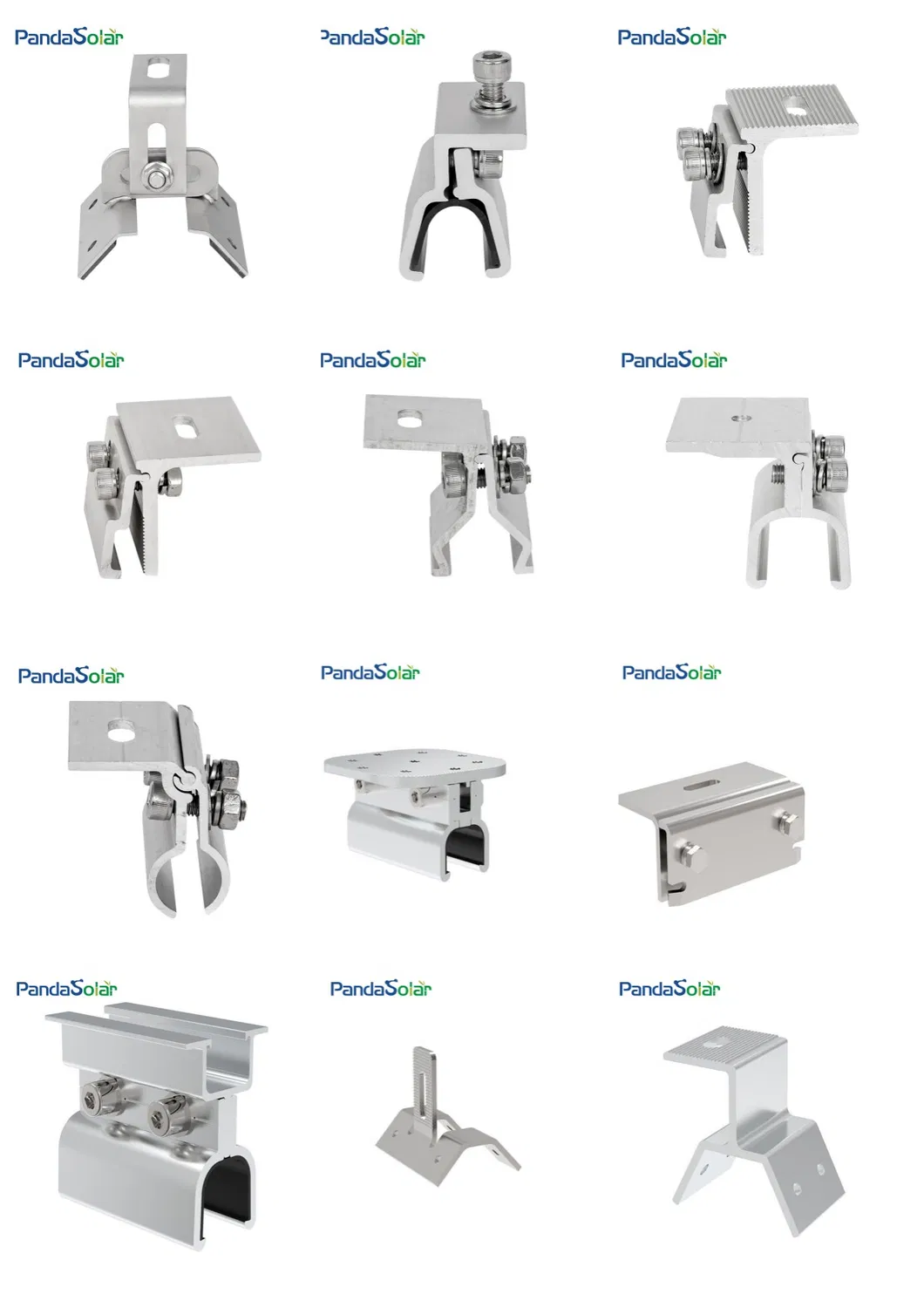

PandaSolar Kliplok is made of AL6005-T5 and apply to almost any solar metal roof solar panel mounting. Customizable clamp can be suitable every kinds roof shape, as like different dimension trapezoidal roof and corrugated roof. Our specialized technicians will design the drawing according to customers' requirement and make delicate module.
It can be used alone or matched with L feet. Solar KlipLok is also be called solar standing seam clamp. Each Kliplok is matched with the corresponding rubber pad for waterproofing and reinforcement. Solar kliplok is an easy to install and economical solar tin roof rack.
| Material Structure | AL6005-T5 / SUS304 |
|---|---|
| Surface Treatment | Anodized |
| Wind Speed Range | 0-45 m/s |
| Snow Load Range | 0-150cm |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 Years |
| Service Life | Over 30 Years |
EASY INSTALLATION IN THREE STEPS

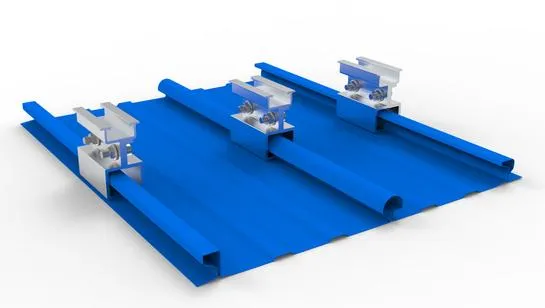

Step 1: Attach the standing seam clamp on the roof and fasten by bolt and nut. Keep all the clamps on a parallel line.

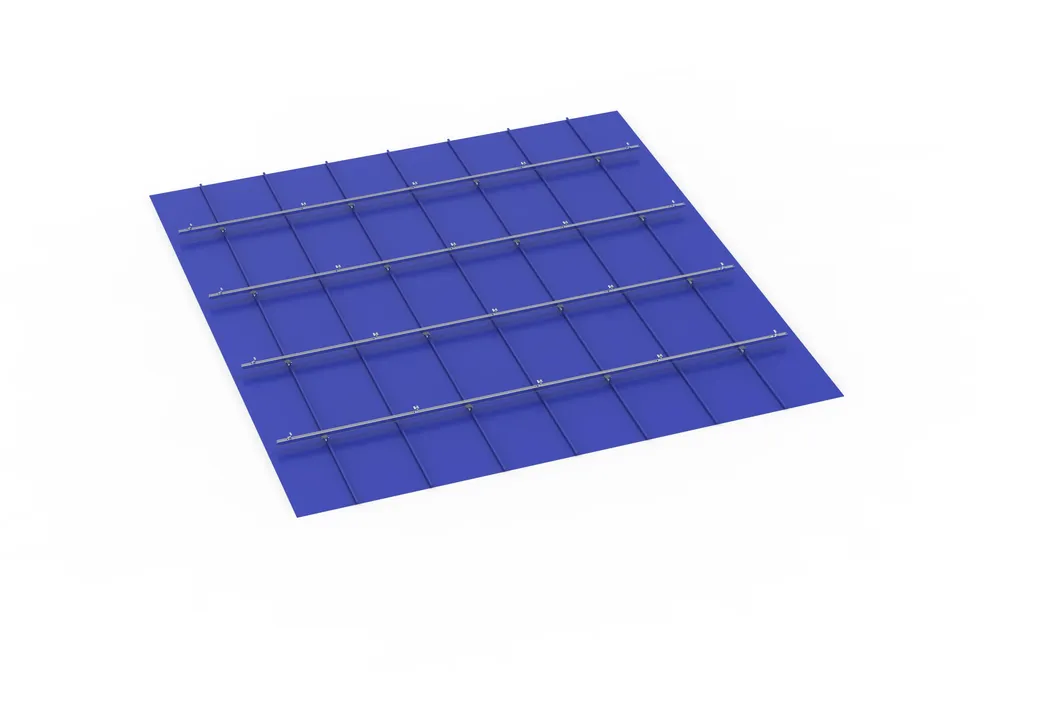

Step 2: Attach the solar rail on the clamp and fix it by corresponding bolts and nuts.

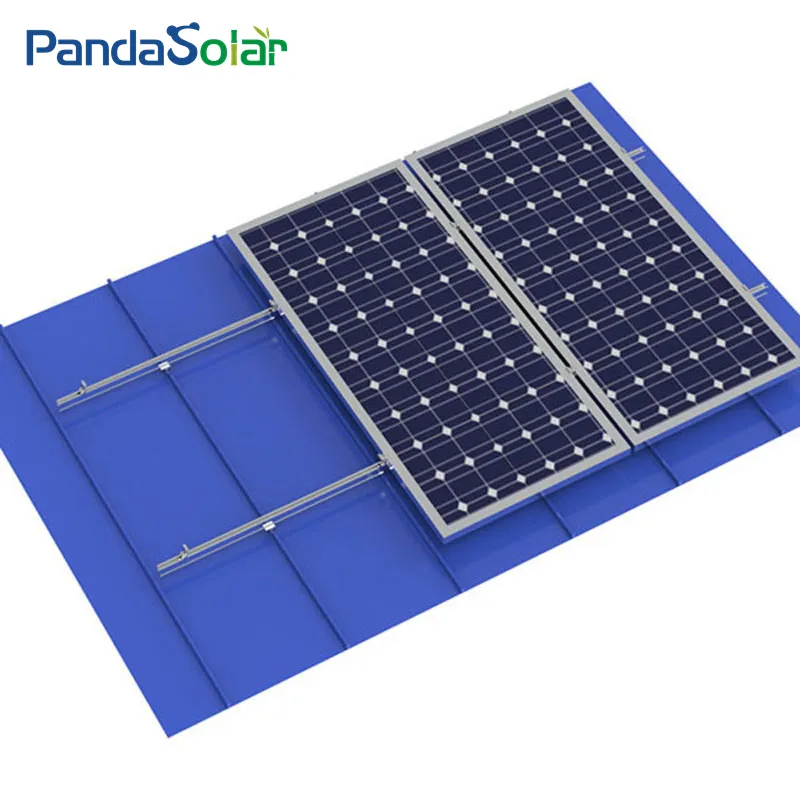

Step 3: Install solar panels on the rails, fasten by solar mid clamps and end clamps.

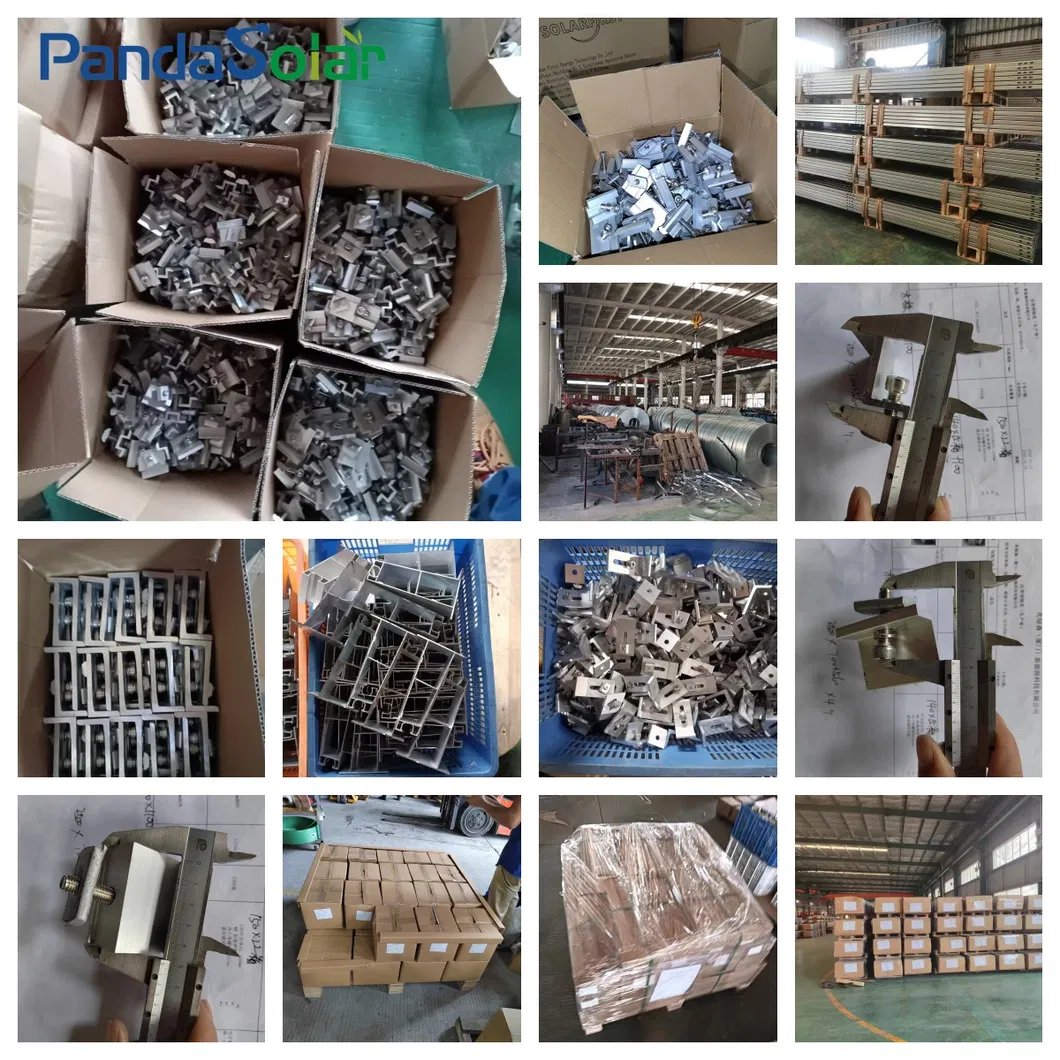

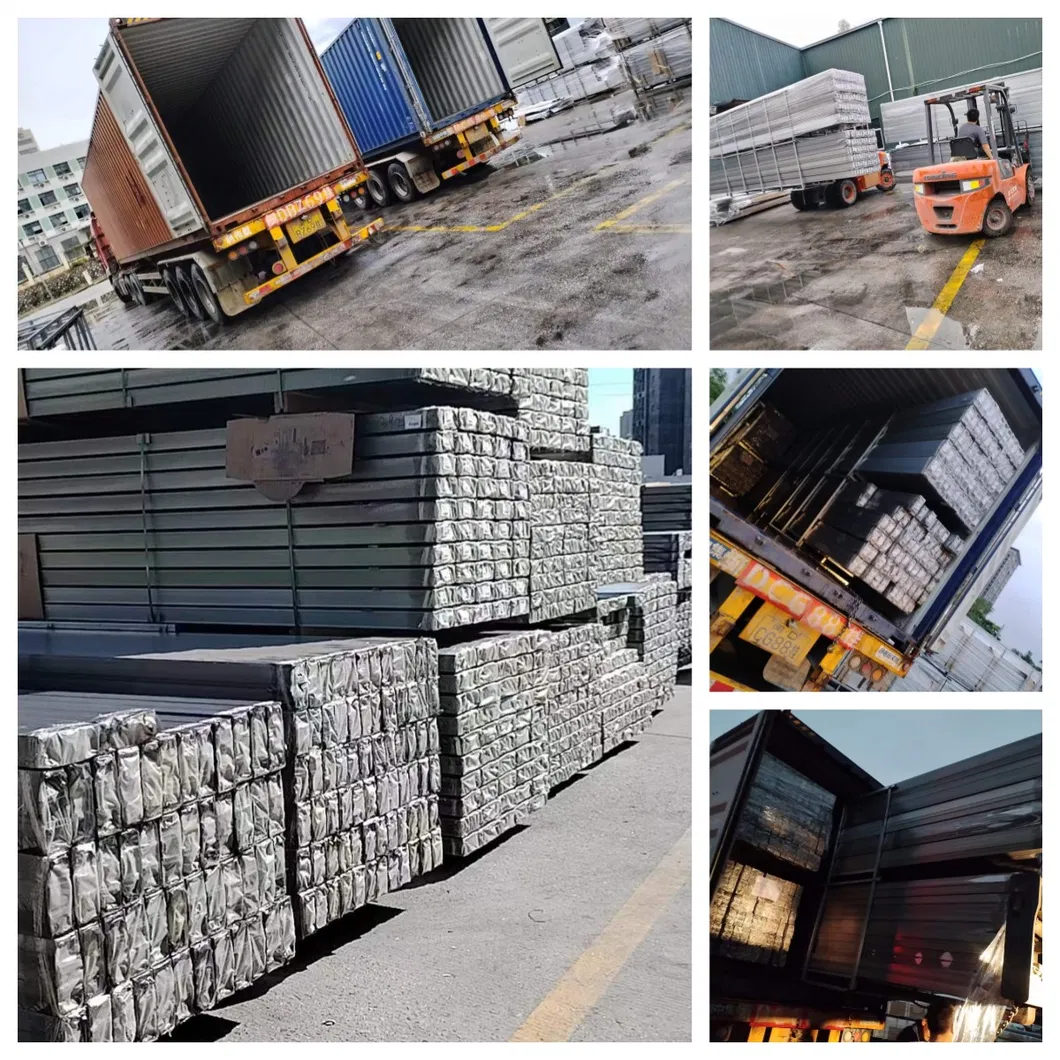

Small cartons and large pallets are packaged by experienced personnel and checked by quality inspectors to provide adequate protection during transit.

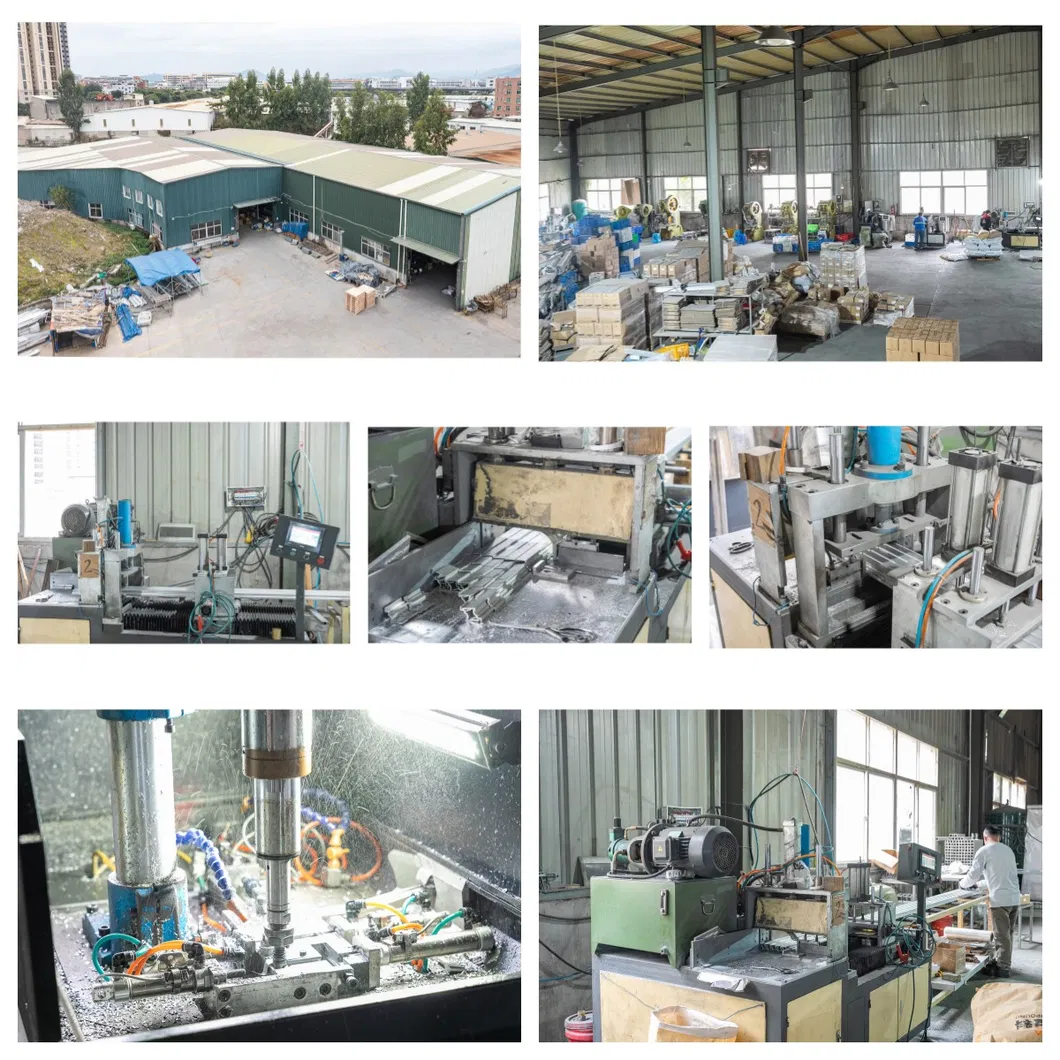

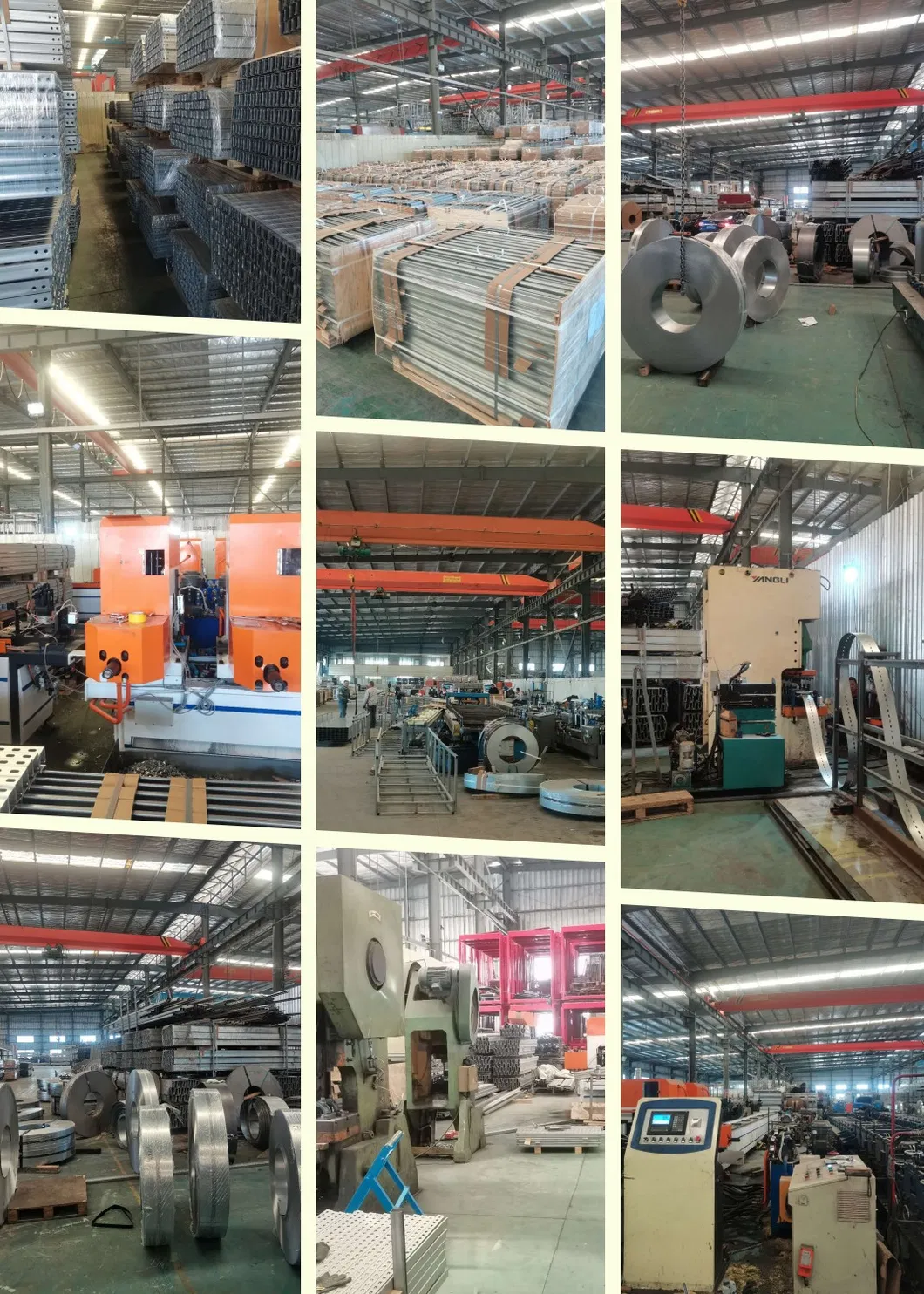

We feature professional processing workshops for cutting, drilling, stamping, forging, and molding. With 6 production lines, we achieve a productivity of 40-50MW per month.
Established in 2019, we are committed to developing clean energy mounting systems, including ground, greenhouse, tile roof, metal roof, and carport systems. Our goal is to provide green energy solutions and become a reliable partner in the solar industry.
