Product Description

i

Basic Specifications

Model NO.
BR-POL
Material
HDPE
Type
Water Floating Bracket
Color
Grey or Blue
Installation Site
Lake, River, Sea
Tile Angle
0-25 Degree
HS Code
7610900000
Production Capacity
1,000,000 PCS/Month
Solar Floating Platform System
★

Core Features

✓Modular design for simple and convenient splice installation.
✓Increased floater volume to enhance buoyant force.
✓High-density polyethylene (HDPE) ensures long service life.
✓Symmetrical facing array design to maximize power generation efficiency.
✓Compatible with various solar modules to reduce overall costs.
✓Strong weather resistance with easy operation and maintenance.

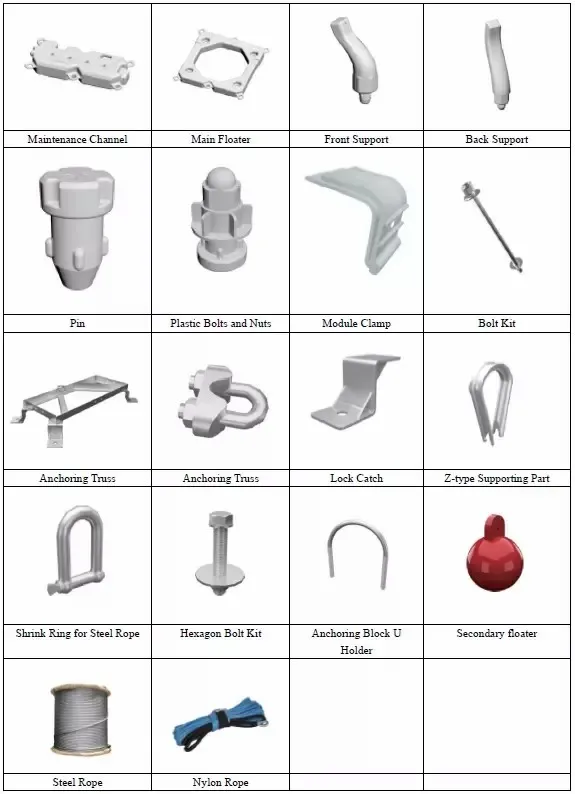

PV Mounting Details
📋

Technical Parameters

Install siteLake, reservoir, water ponds, small idle water area
Tile angle5°, 10°, 15°
Max wind speed51m/s
Snow load1.0kn/m2
Bearing weightModule floater 70kg/m2, walkway floater 155kg/m2
Module CompatibilityFramed or frameless
Solar panel orientationLandscape, double row, symmetrical facing
Main materialHDPE
FastenersZinc-nickle alloy & HDPE & Q235B
Small spare partsAL6005-T5 (Anodized)
Warranty12 years
Floating Pontoon View 1 Floating Pontoon View 2
📦

Packaging & Delivery

Package Size
234.00cm * 156.00cm * 167.00cm
Gross Weight
2.000kg
Transport Package
Carton/Pallet
?

Frequently Asked Questions

What is the primary material used for the floating system?
The system is primarily made of High-Density Polyethylene (HDPE), which ensures durability, buoyancy, and a long service life in water environments.
What wind and snow loads can the system withstand?
The floating platform is engineered to withstand maximum wind speeds of up to 51m/s and snow loads of 1.0kn/m2.
Is the system compatible with different types of solar panels?
Yes, the modular design is compatible with both framed and frameless solar modules, allowing for landscape or symmetrical facing configurations.
Where can this solar floating system be installed?
It is suitable for various water bodies, including lakes, reservoirs, rivers, seas, and even small idle water ponds.
What is the bearing capacity of the floaters?
The module floater has a bearing capacity of 70kg/m2, while the walkway floater can support up to 155kg/m2.
What warranty is provided for the system?
We provide a 12-year warranty for the PV panel mounting floating system, reflecting its strong weather resistance and high-quality build.
