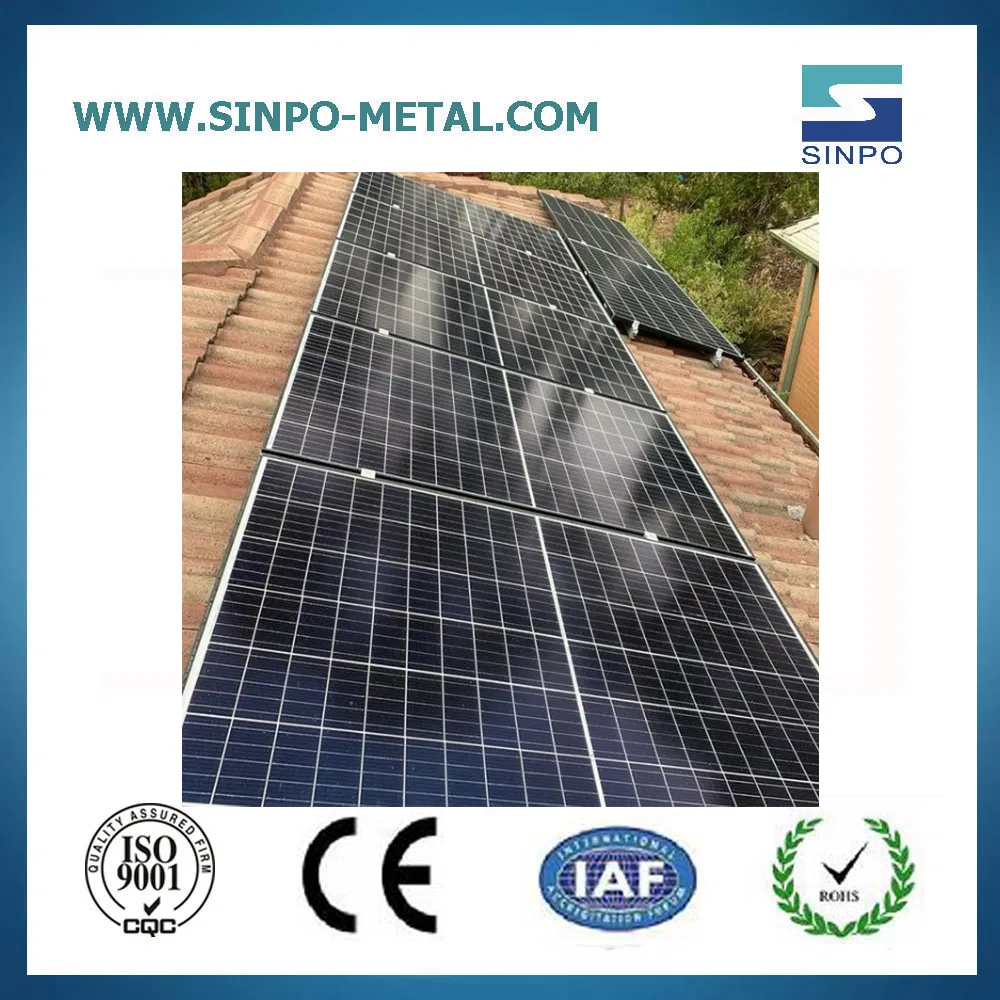

| Type | Solar Power System Component |
| Installation site | According to requirements |
| Material | Galvanized steel, Aluminum 6000 series |
| Fasten material | Aluminum, SUS304, Steel |
| Survival Wind Speed | < 60m/s |
| Design Snow load | Up to 1.4KN/ Square meters |
| Solar panel type | Framed or Frameless |
| Panel Orientation | Transverse or vertical |
| Design Standard | CE; ISO9001; SGS |
| Quality warranty | 12-25 years |
| Duration | More than 20 years |
| NO. | NAME | SIZE (mm) | QTY | MATERIAL |
|---|---|---|---|---|
| 1 | Roof Hook | - | 8 | AL6063-T5 |
| 2 | Drilling Screw | M5.5*60 | 32 | 304 |

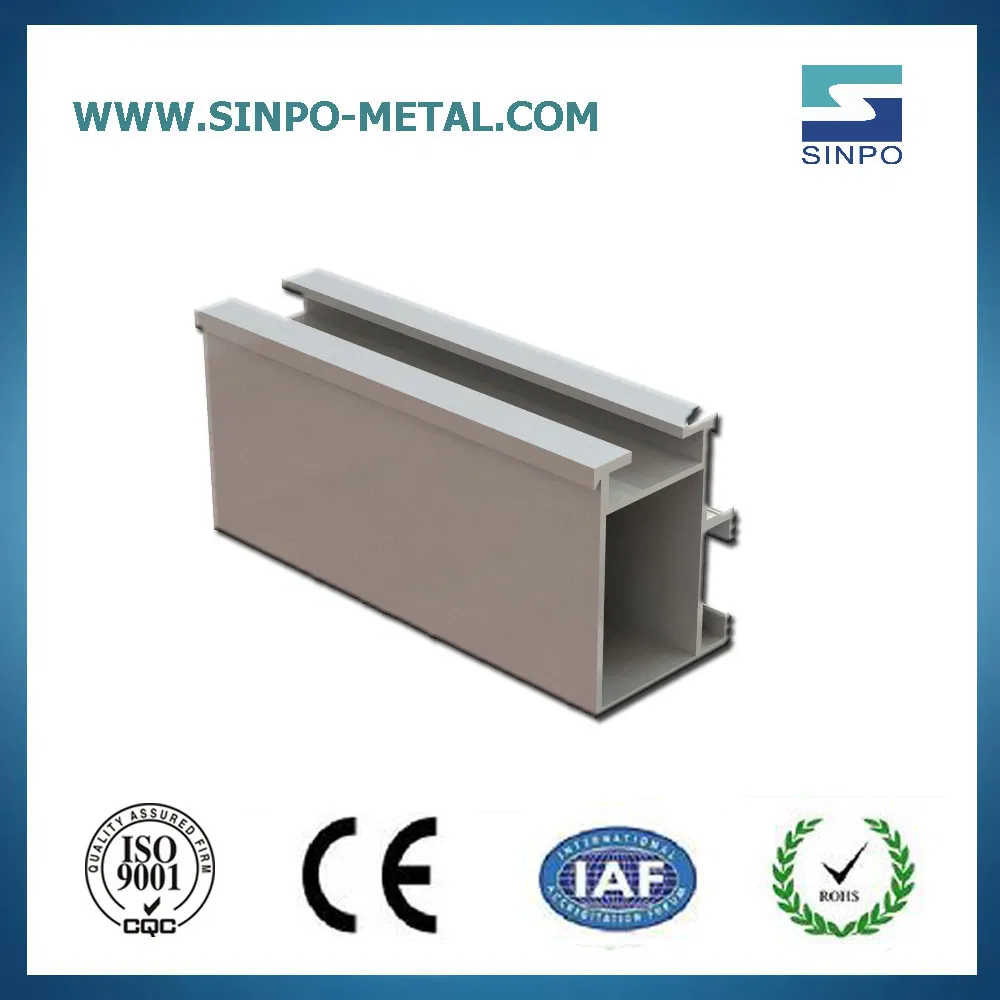

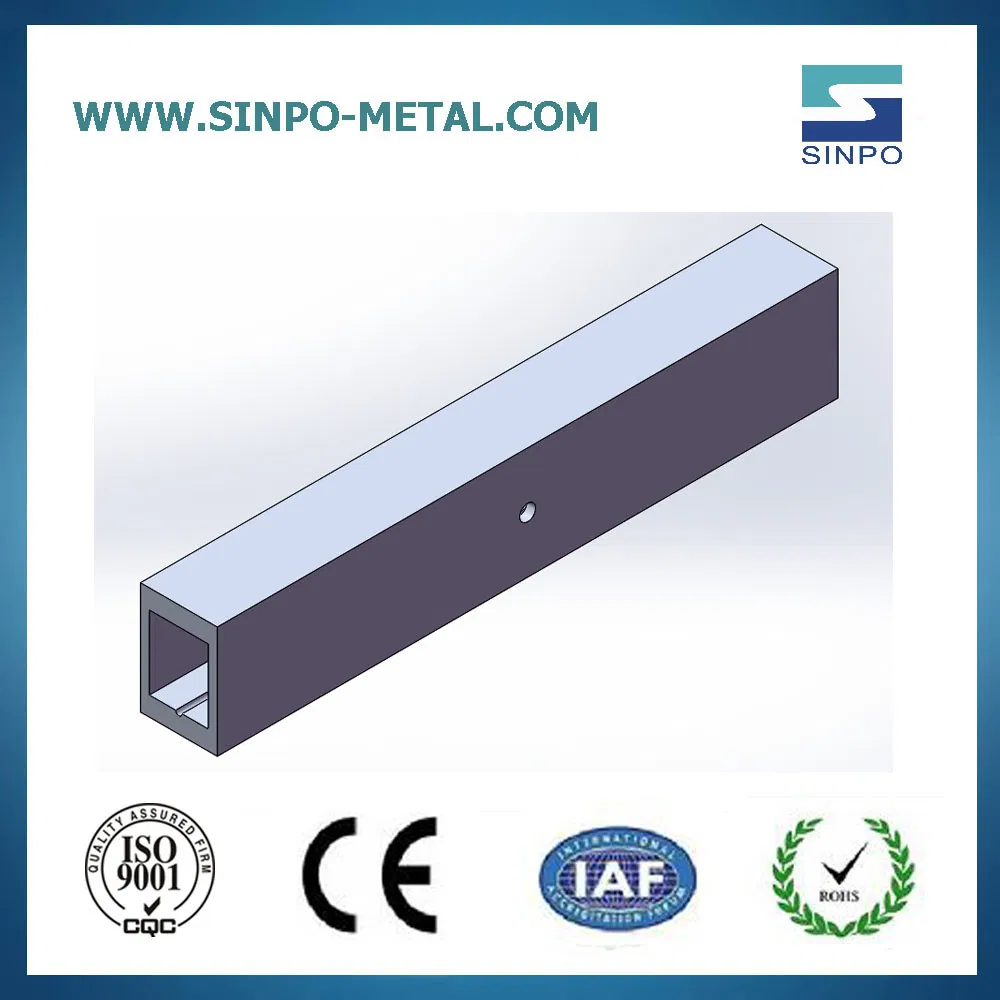

| 3 | Rail | 2100 | 4 | AL6063-T5 |
| 4 | Rail Joiner | 200 | 2 | AL6063-T5 |

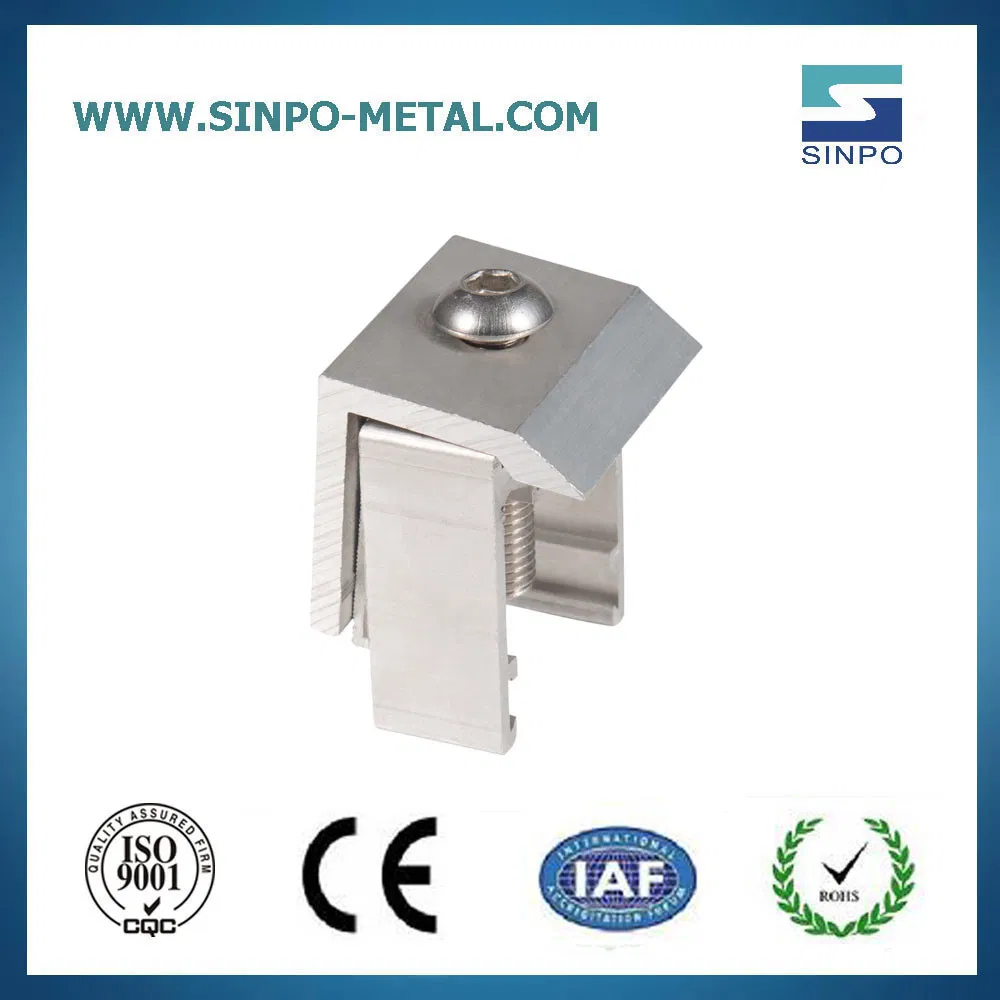

| 5 | Mid Clamp | Standard | 6 | AL6063-T5 |

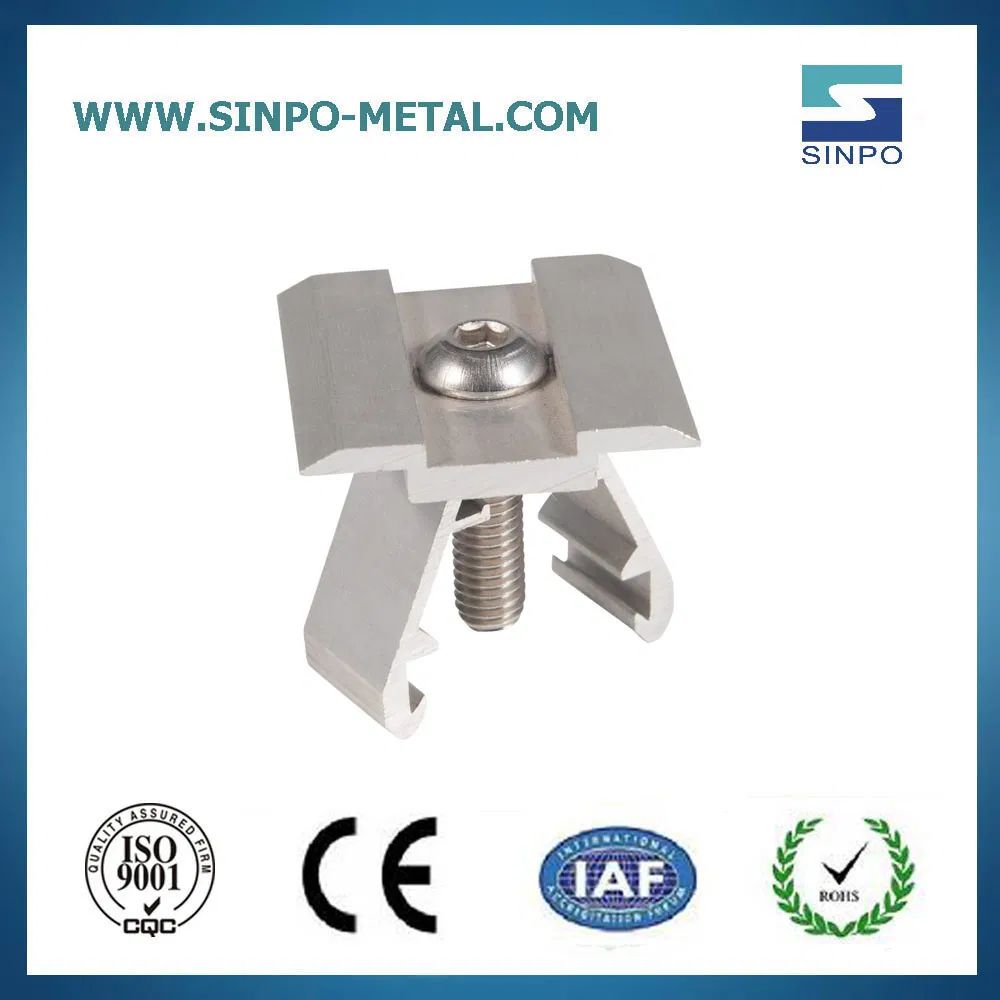

| 6 | End Clamp | Standard | 4 | AL6063-T5 |

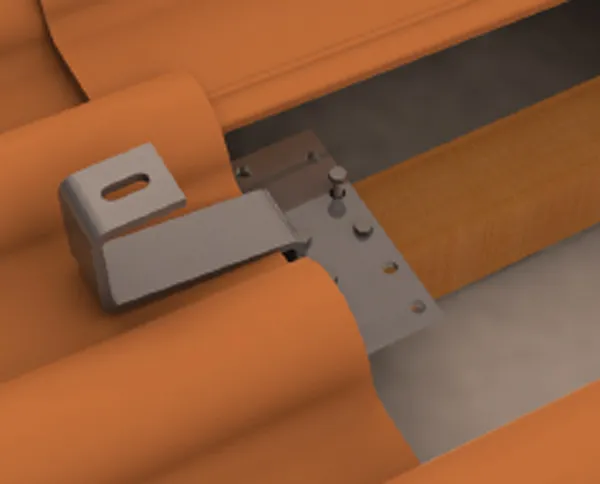

Fix roof hook on to the wooden beam with wood screw. Generally, three wood screws are enough.

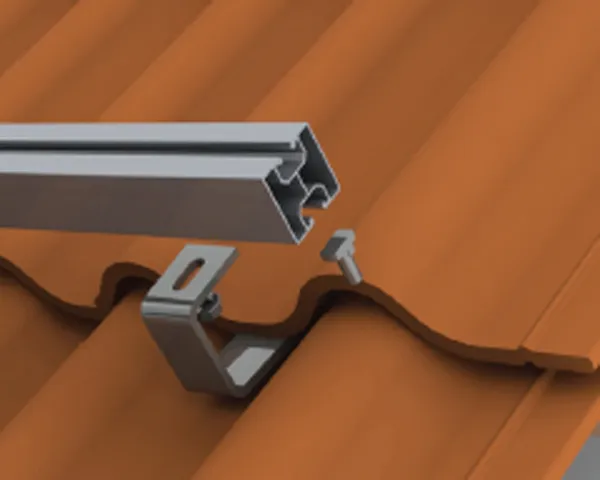

Fix the aluminum rail to the roof hook with T-head bolt and flange nut.

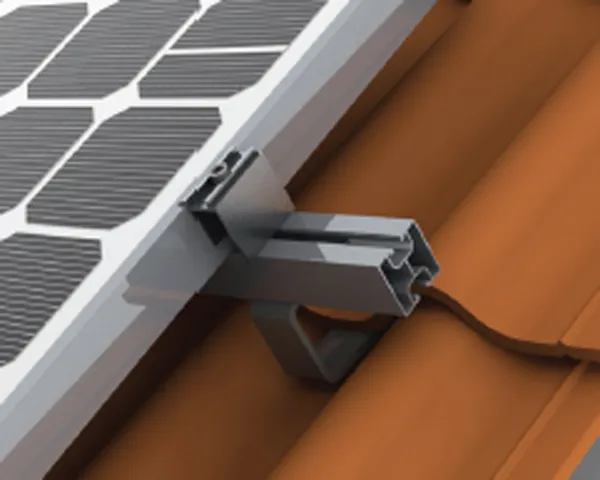

Fasten the hex bolt when the module clamps and PV modules are located.
