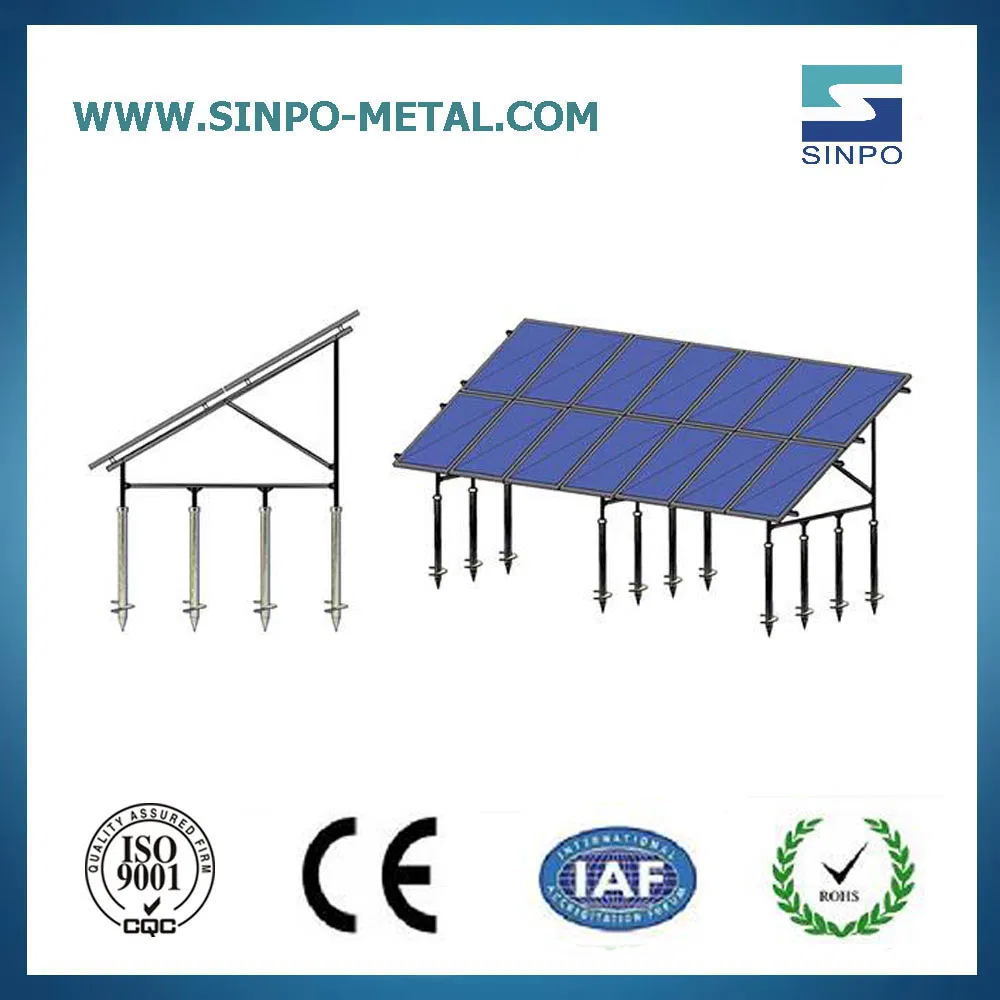

| Type | Ground Solar Energy System Mounting Structure |
| Installation site | According to Roof Type |
| Material | Aluminum6063 T3-T5; Steel |
| Survival Wind Speed | < 60m/s |
| Design Snow load | Up to 1.4KN/ Square meters |
| Solar panel type | Framed or Frameless |
| Panel Orientation | Transverse or vertical |
| Design Standard | CE; ISO9001 |
| Quality warranty | 12-25 years |
| Duration | More than 20 years |
| NO. | NAME | SIZE(mm) | QTY | MATERIAL |
|---|---|---|---|---|

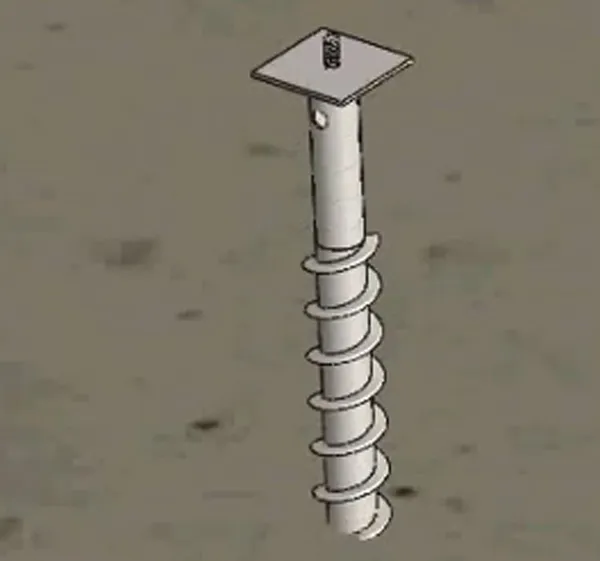

| 1 | Ground Screw | - | 10 | Q235B |
| 2 | Front Column | 41*52*2.5 | 5 | Q235B |
| 3 | Back Column | 41*52*2.5 | 5 | Q235B |
| 4 | Rail | 41*52*2.5 | 10 | Q235B |
| 5 | Beam | 41*52*2.5 | 5 | Q235B |

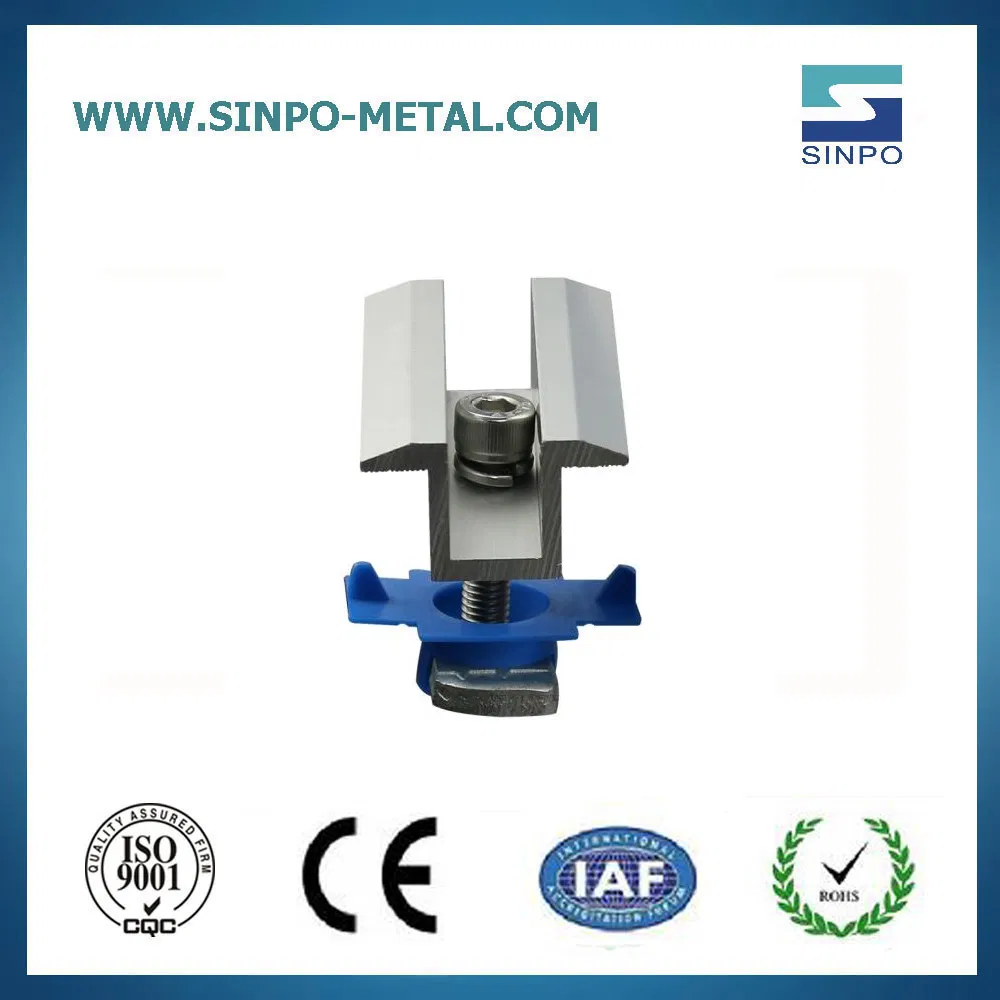

| 8 | Mid Clamp | - | 8 | AL6063-T5 |

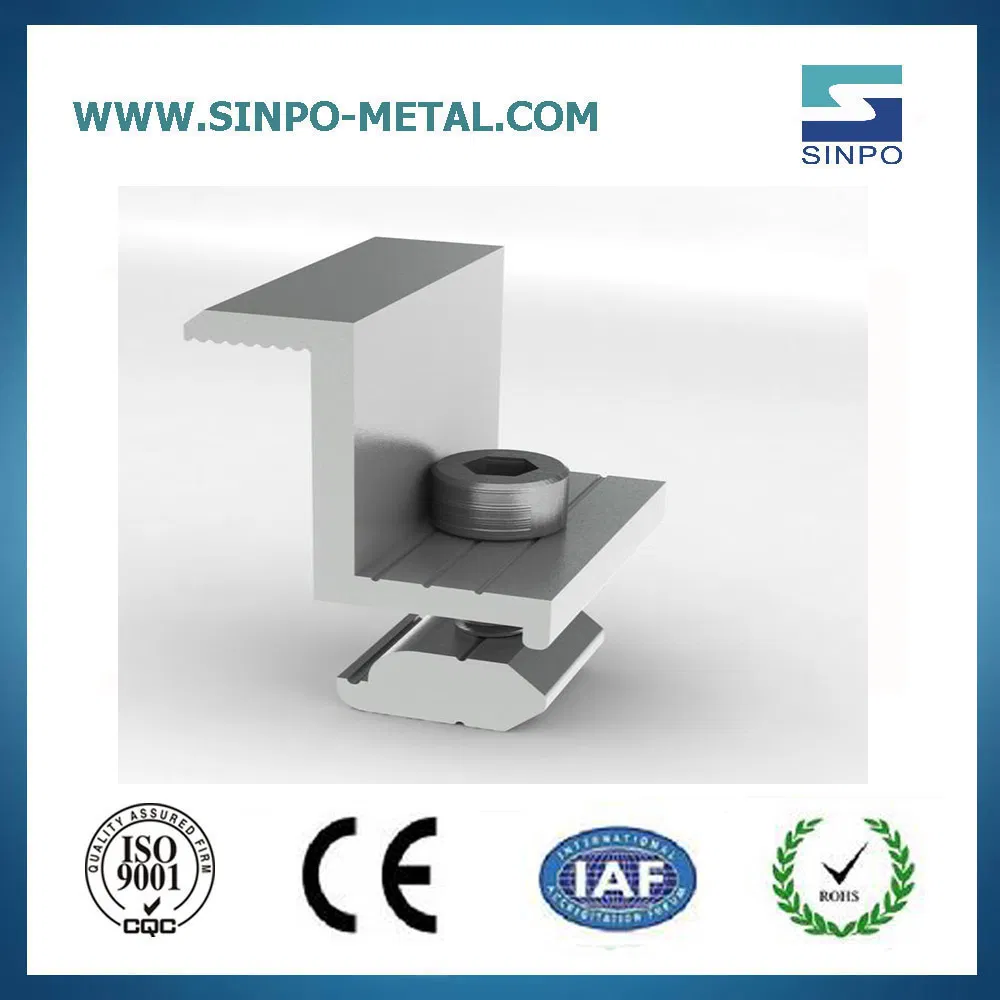

| 9 | End Clamp | - | 4 | AL6063-T5 |
In order to help you get the right system, please provide the following necessary info:
