🔹 Overview & Basic Info
| Model NO. |
PV Solar Mounting Clamp |
| Material |
Aluminum Alloy |
| Type |
BIPV |
| Color |
Silver/Black/White |
| Feature |
Quick Installation/Adjustable/Easy Installation |
| Bracket Material |
Aluminum/Galvanized Steel/Carbon Steel/Metal |
| Surface Treatment |
Anodized/Aluminum Anodized/Hot-DIP Galvanized |
| Installation Angle |
5-60° |
| Application |
Solar Panel Mounting/Ground/Tile Roof/Flat Roof |
| Production Capacity |
200,000 PCS/Month |
📦 Packaging & Delivery
| Package Size |
40.00cm * 30.00cm * 25.00cm |
| Package Gross Weight |
15.000kg |
📋 Product Description

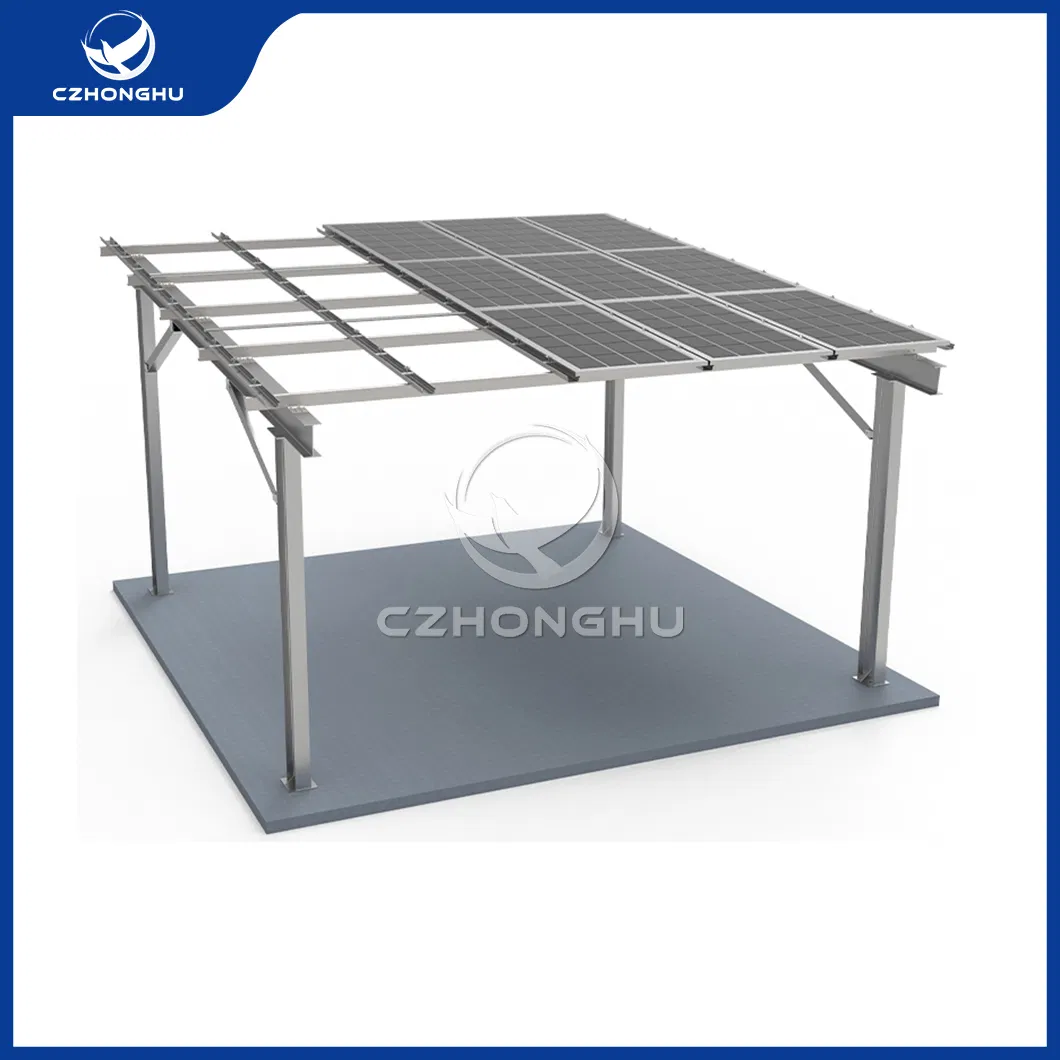

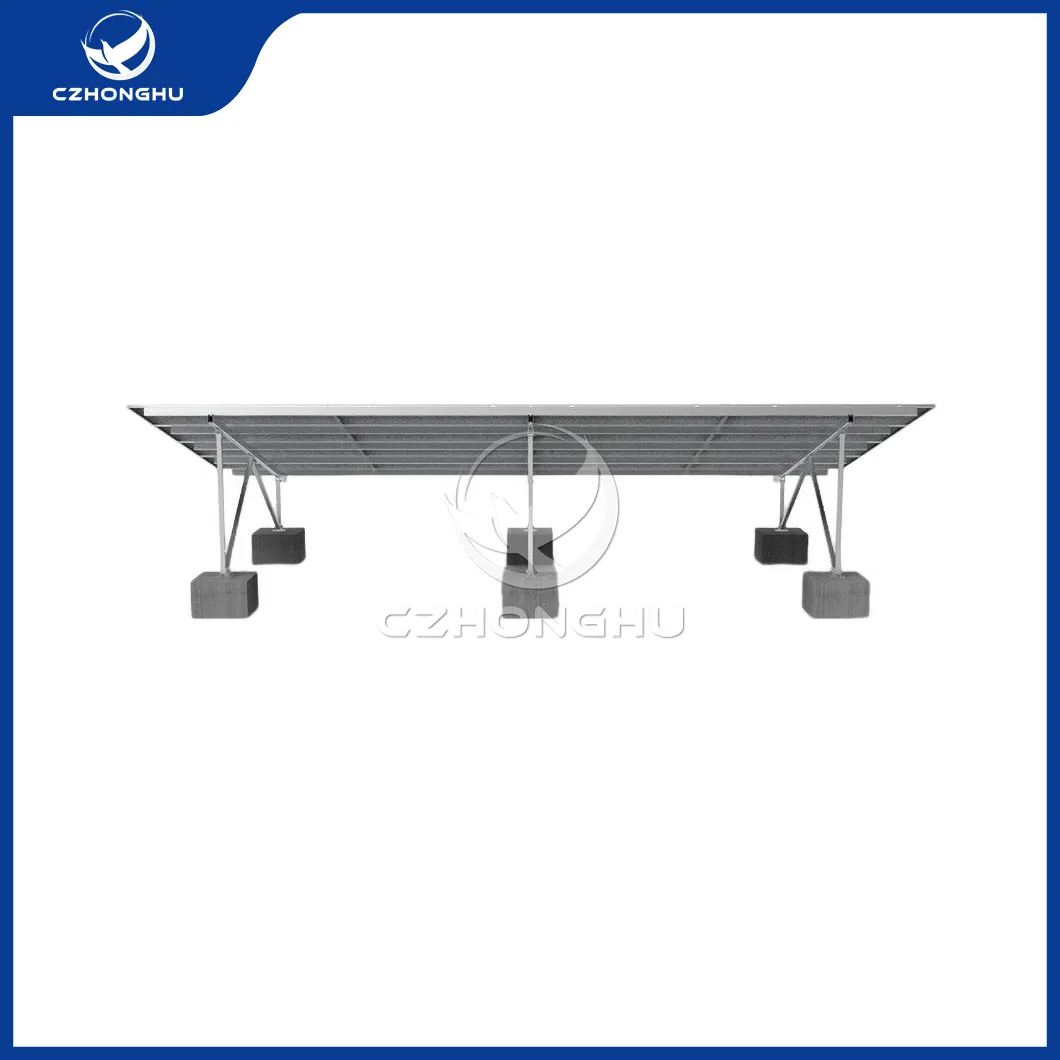

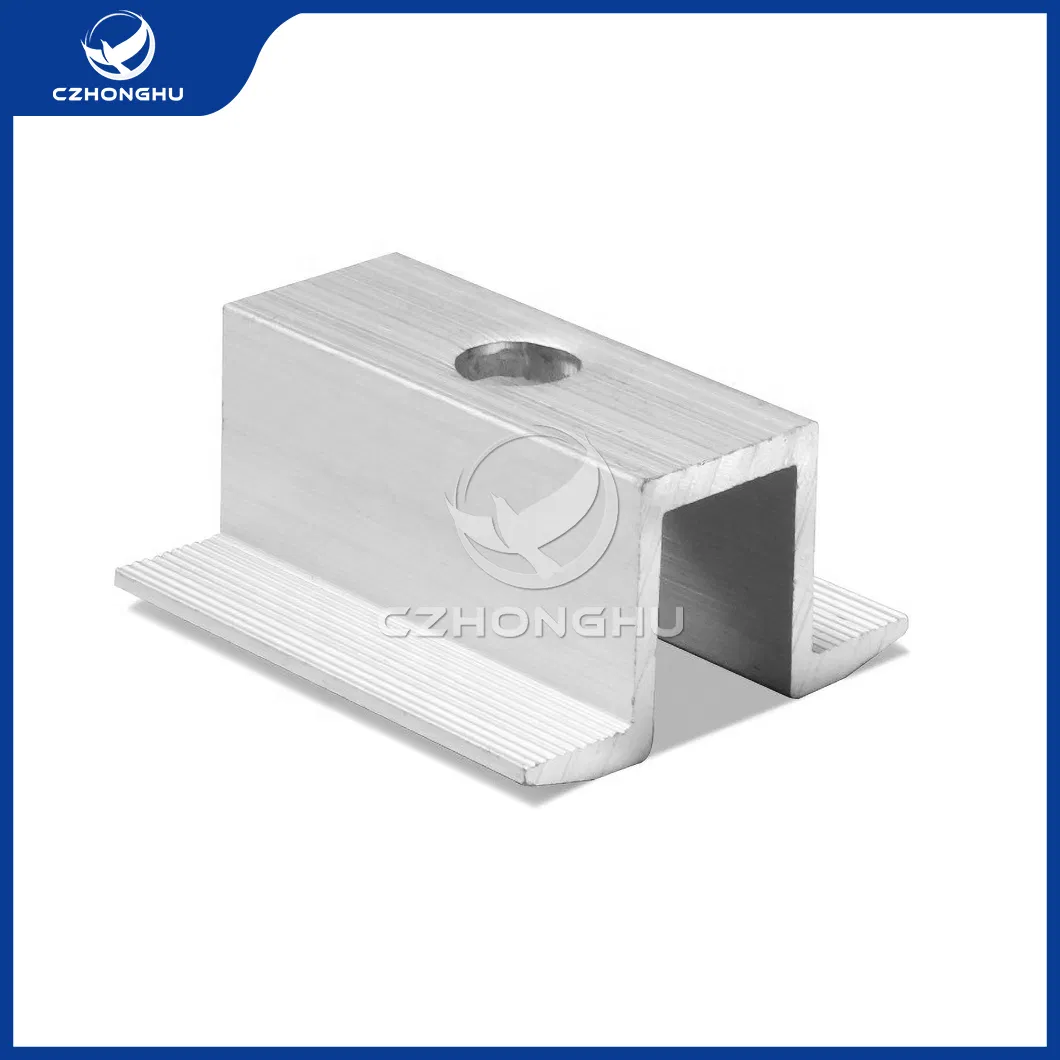

Solar Panel Mounting Bracket Clamp for Open Field and Ground PV Solar Mounting Standing Seam Rooftop
PV solar mounting fixtures are special fixtures used to fix solar panels. Made of weather-resistant materials, these fixtures withstand harsh environments like sun and rain, ensuring the solar panel remains firmly fixed to the bracket or roof. They feature adjustment functions to optimize the angle for maximum sunlight absorption.
Advanced PV solar mounting fixtures may include anti-theft functions and intelligent control systems for remote monitoring, improving the security and operational efficiency of the entire solar power generation system.
⚙️ Detailed Specifications
| PV SOLAR MOUNTING CLAMP SPECIFICATIONS |
| Product Name | PV Solar Mounting Clamp |
| Keywords | Solar Panel Mounting Clamp |
| Bracket Material | Aluminum/Galvanized Steel/Carbon Steel/Metal |
| Finishing | Plain, Sand Blasting, Polishing |
| Standard | DIN, ASTM/ANSI, JIS, EN, ISO, AS, GB |
| Processing Service | Welding or Customized |
| Technique | Cold Rolled / Hot Rolled |
| MOQ | 100 Pieces |

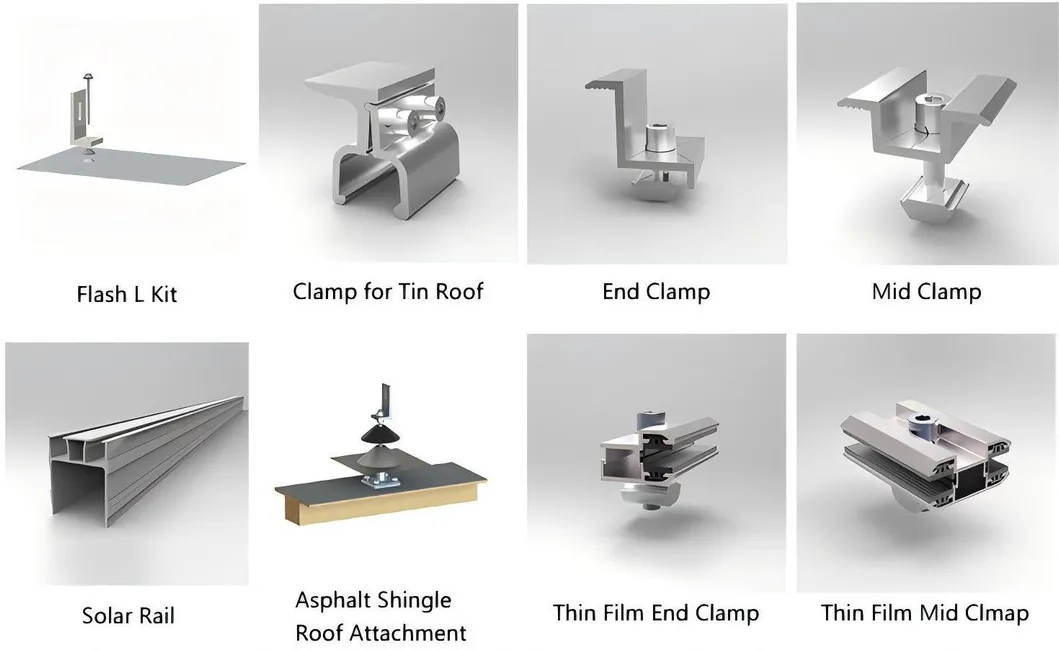

🛠️ Component Types & Installation

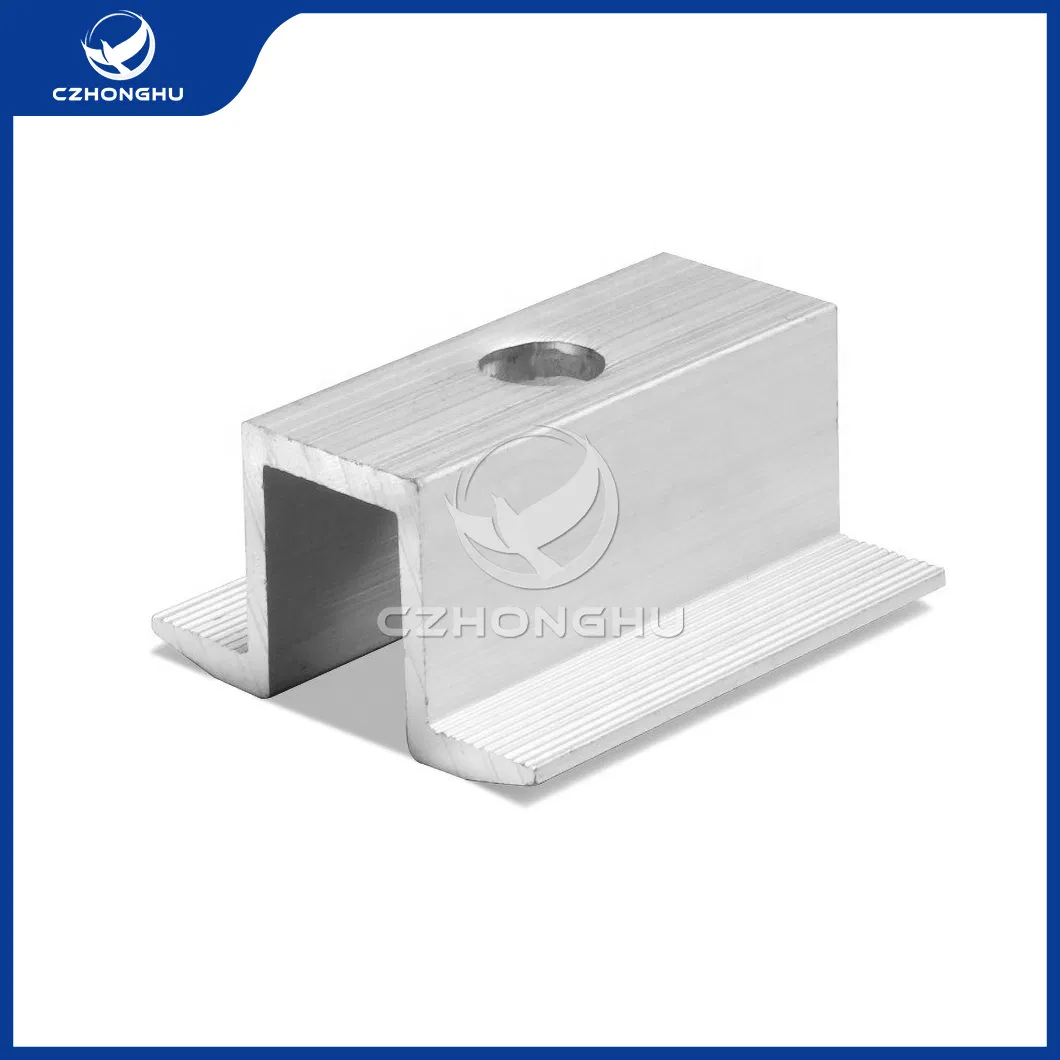

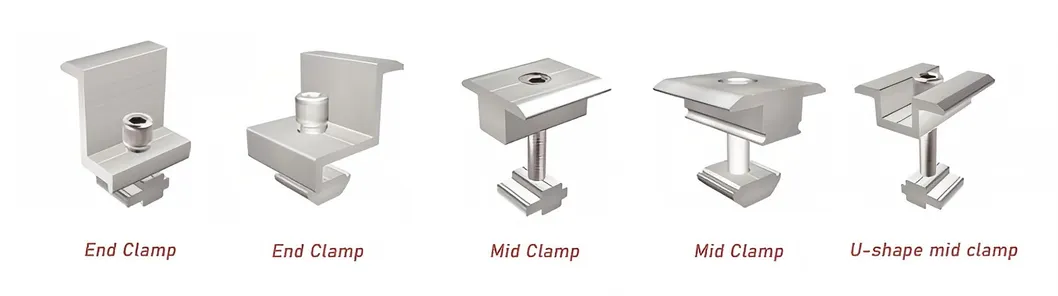

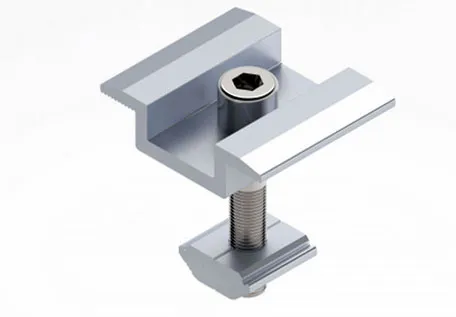

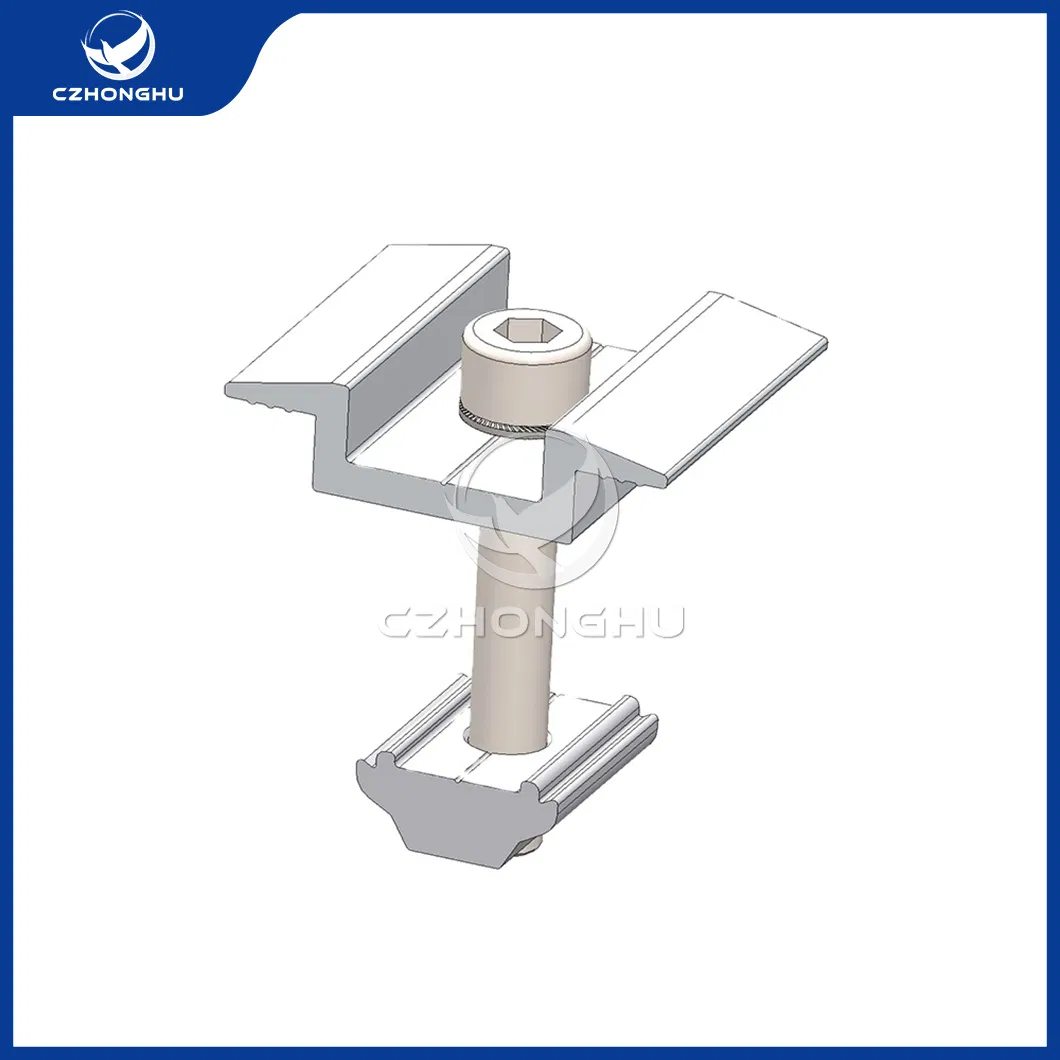

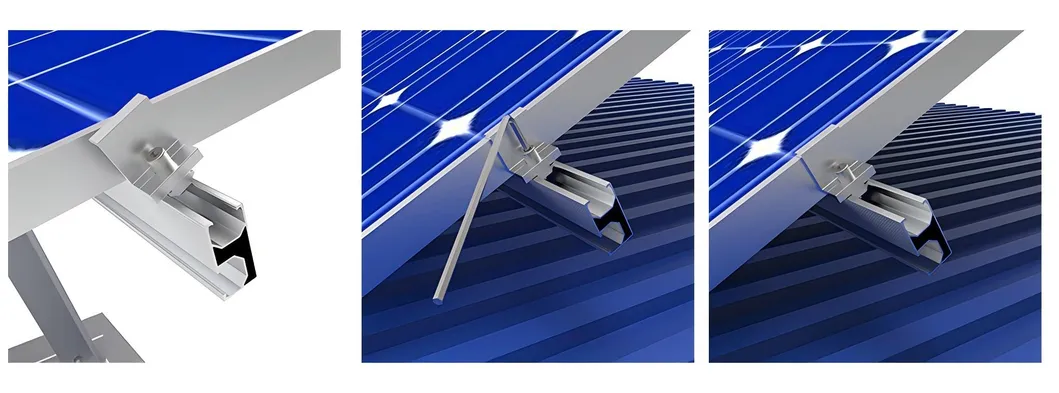

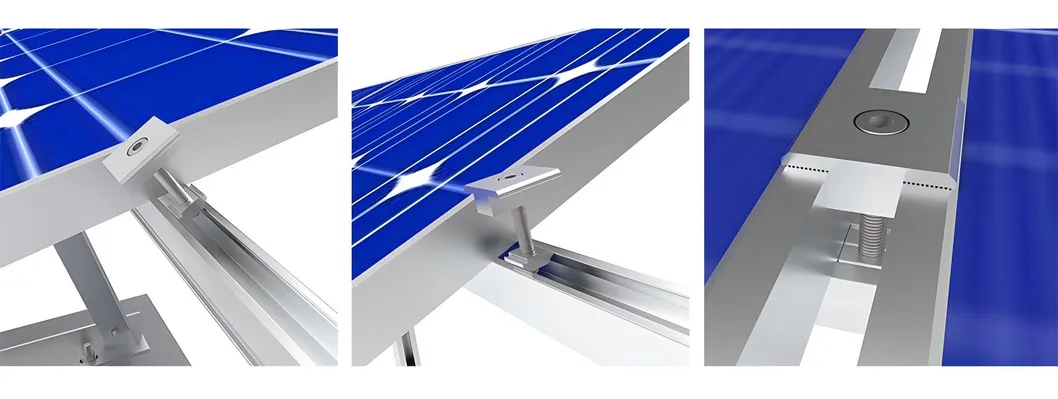

Solar Panel Mid Clamps
Mid clamps are placed between adjacent solar panels to hold them firmly in place and prevent movement caused by wind or snow. Adjustable for various panel thicknesses.

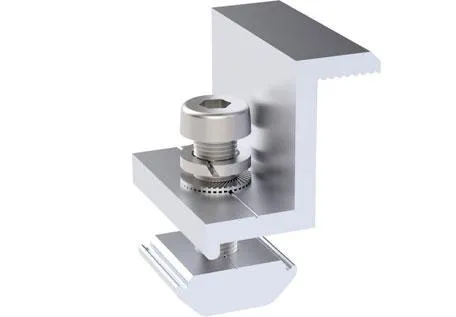

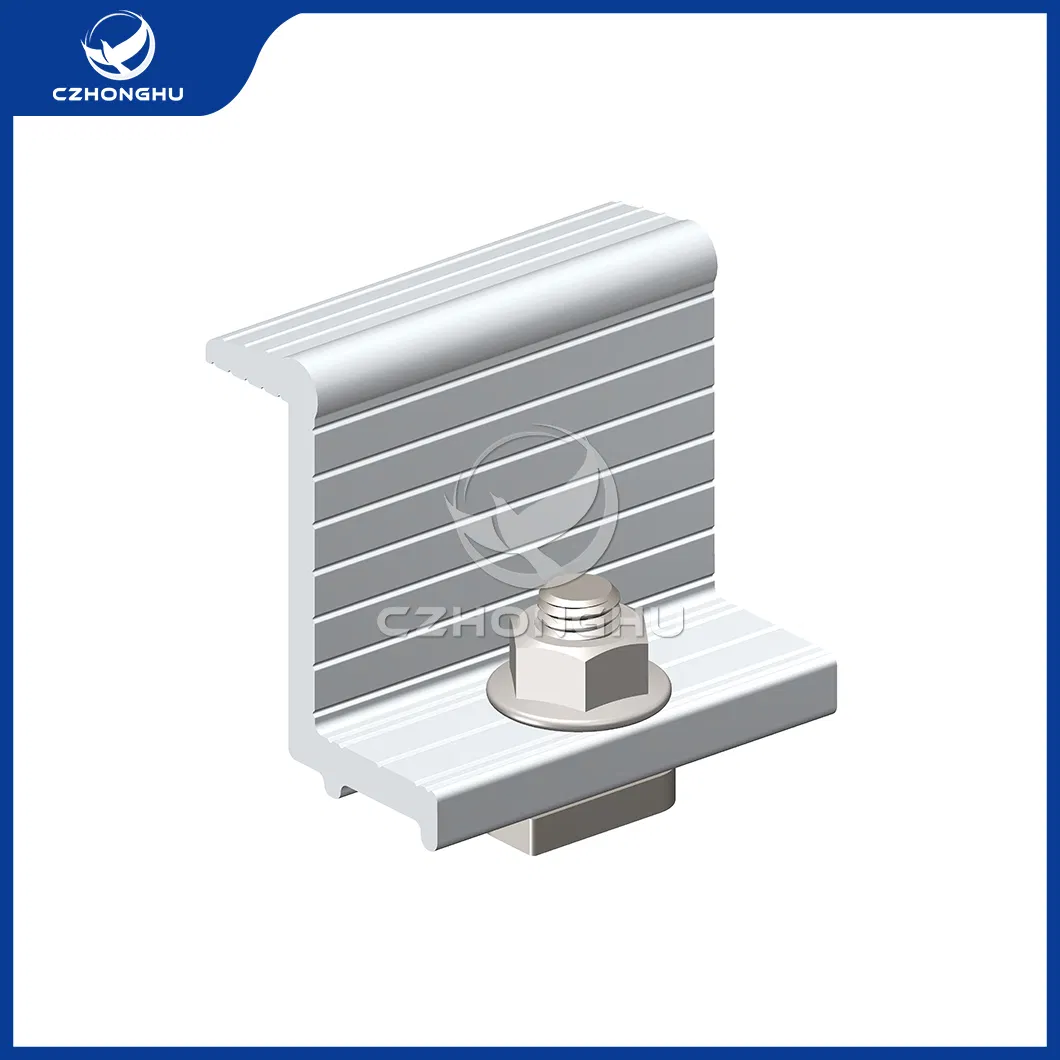

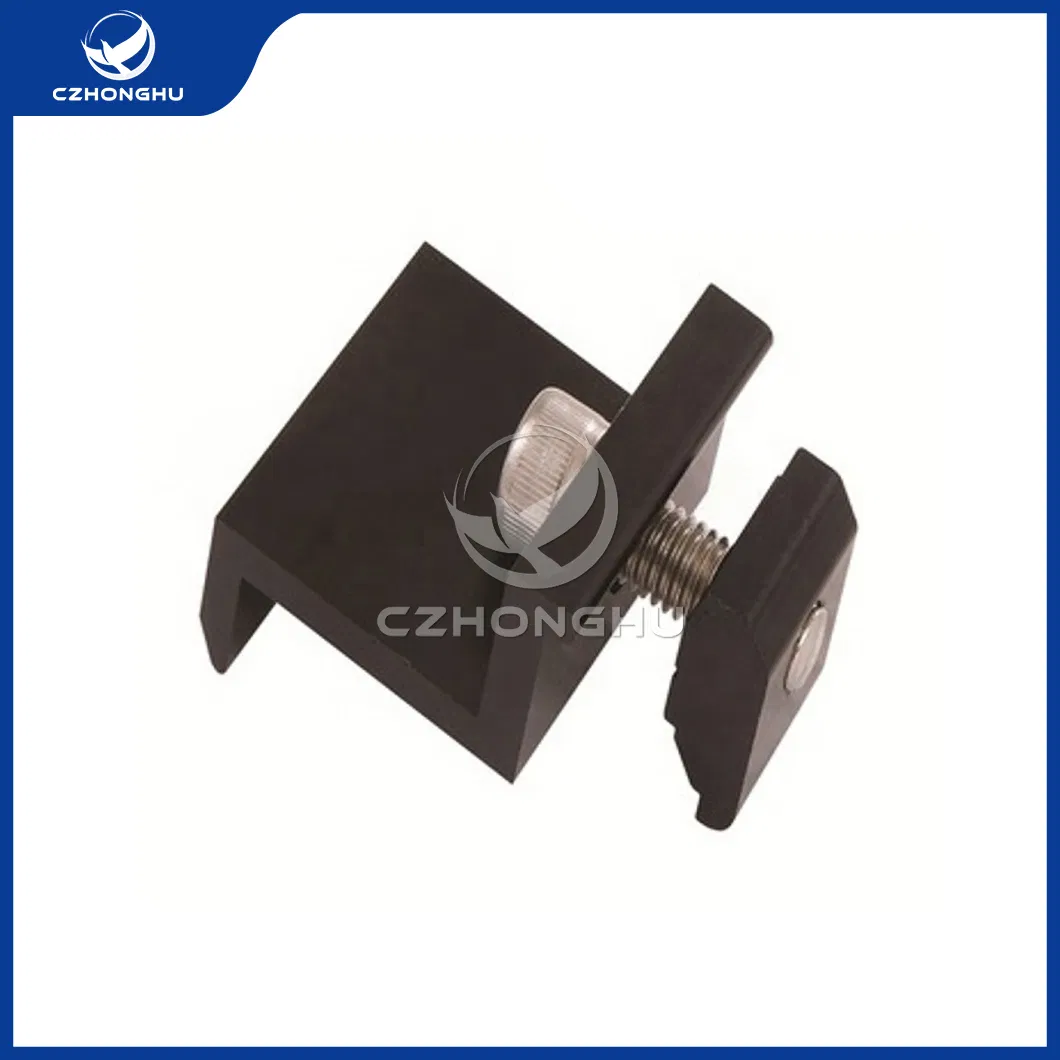

Solar Panel End Clamps
End clamps fasten panels at the outermost edges of the installation, securing the perimeter of the solar array to the mounting structure.

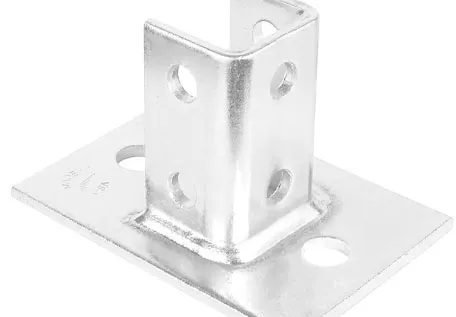

Strut Channel Post Bases
Designed to provide a stable foundation for vertical strut channels, creating sturdy support structures for piping, electrical conduits, or solar equipment.
❓ Frequently Asked Questions
How can I request product samples?
Samples are free of charge, but courier costs are collected. Please provide your sample list and courier account number.
What are your standard trade terms?
We typically work with FOB, CNF (CFR), CIF, and EXW terms.
What are the available payment terms?
We require a 30% T/T deposit, with the remaining balance due against a faxed copy of the B/L.
What is the typical delivery time?
Depending on the order list and total quantity, most deliveries are completed within 30 days.
Are your mounting clamps adjustable?
Yes, our mid and end clamps are designed to be adjustable to accommodate different solar panel frame thicknesses (30-50mm).
What materials are used for the clamps?
Our clamps are primarily made from high-quality anodized 6005-T5 aluminum alloy for superior corrosion resistance.
