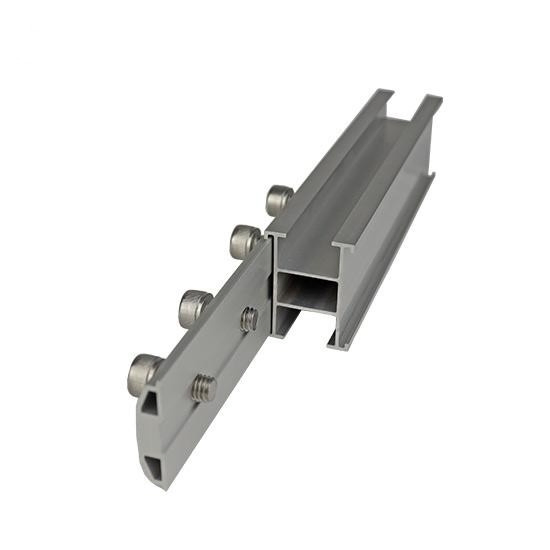

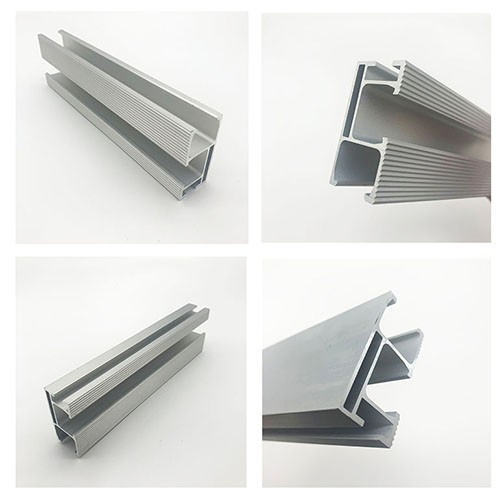

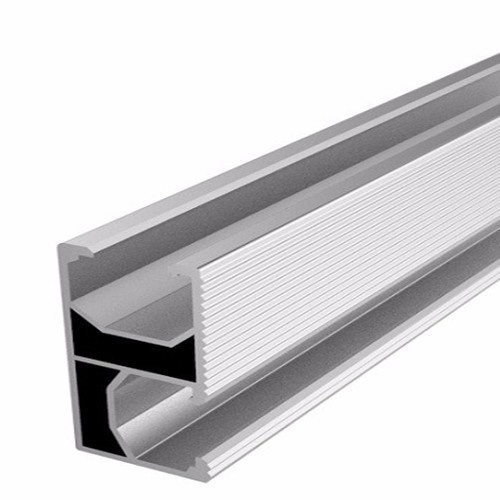

Aluminium Solar Panel Frame Ground Pole Mounting Profile Structure

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

✨ Basic Specifications

Model NO.	APV175
Application	Industrial
Material	Aluminum Alloy 6005/6063 T5
Type	Ground Bracket
Wind Load	60 M/S (Up to 130mph)
Snow Load	1.4 Kn/M2 (Up to 30psf)
Thickness of Module	30-50 mm
Adjustable Angle	15~50 Degree
Foundation	Ground, Balcony, Roof, Wall
Finishing	Clear Anodized / Mill Finish
Capacity	3000 Tons / Month
Standards	AS/NZS 1170

📋 Product Description

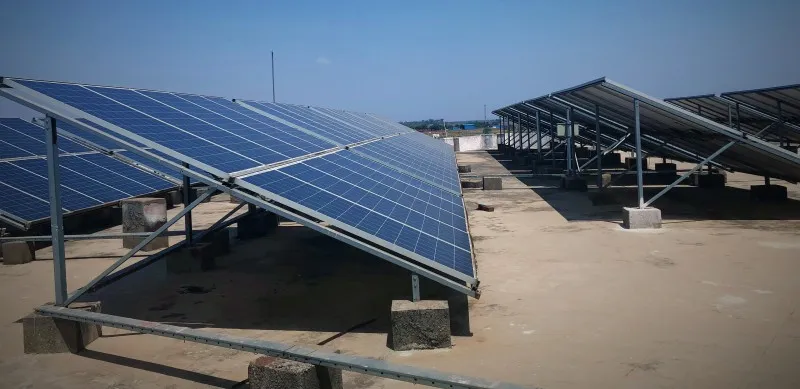

The Ground solar panel brackets racking system is designed to securely fix solar panels for commercial PV plant power stations. This professional structure includes metal framing and concrete bases to ensure long-term stability.

Fixed Tilt System: The most economical solution with fixed structure and minimal maintenance.

Single Axis Tracking: Uses electric motors to track the sun's movement throughout the day in one direction.

Dual-Axis Tracking: Maximizes PV output by tracking the sun both horizontally and vertically.

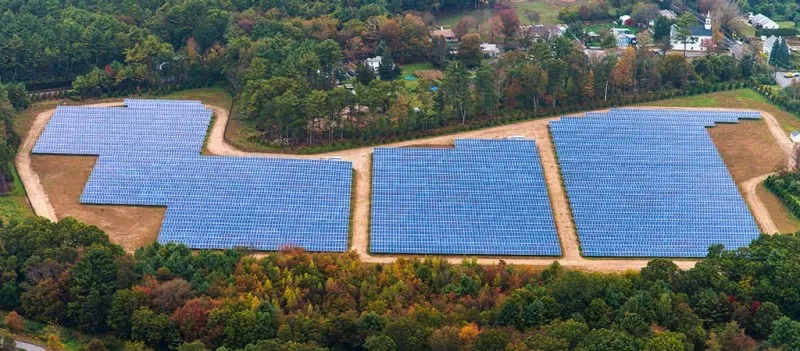

🔧 System Structure & Components

Our photovoltaic racking system consists of three primary parts engineered for durability:

Base Support: Engineered to withstand extreme wind and snow loads.
Main Structure: Tailor-made racks designed specifically for project latitude, longitude, and panel size.

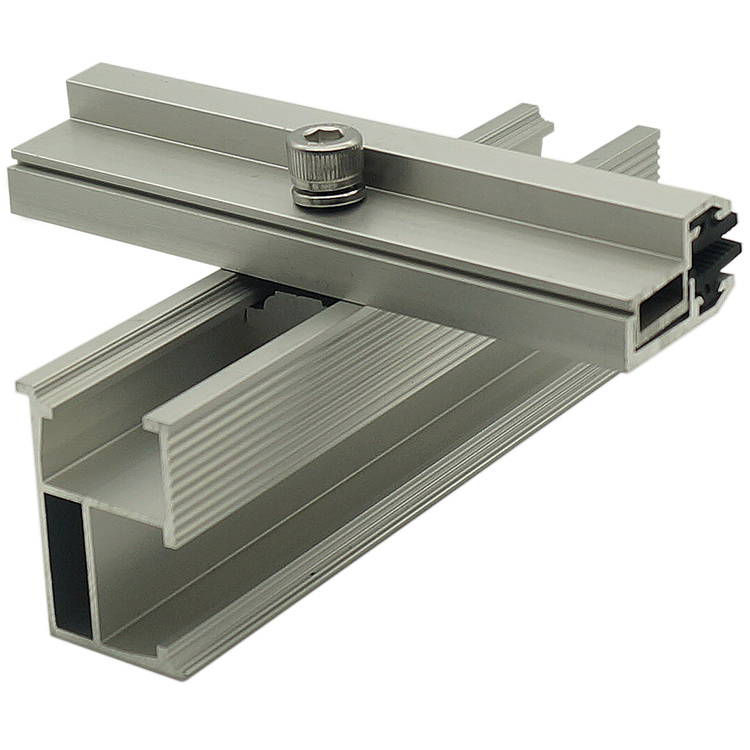

Clamps & Bolts: High-strength mid and end clamps to fasten panels firmly.

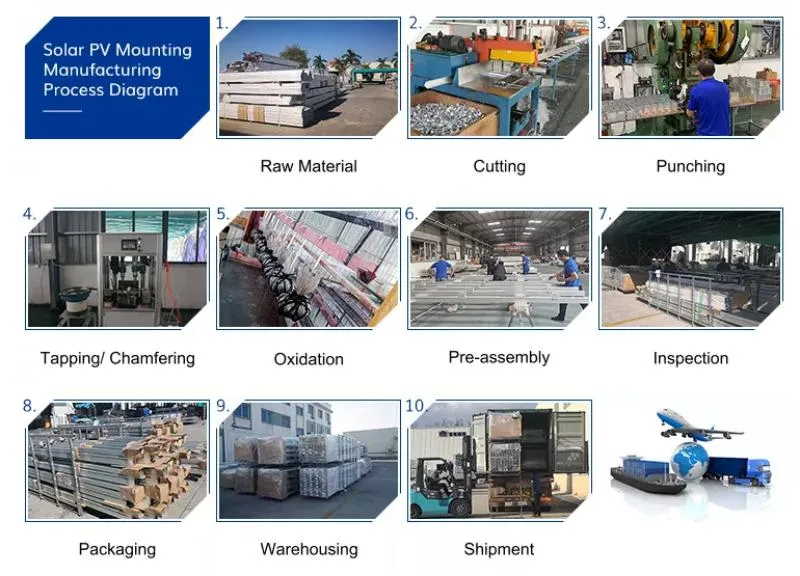

📷 Technical Details & Packaging

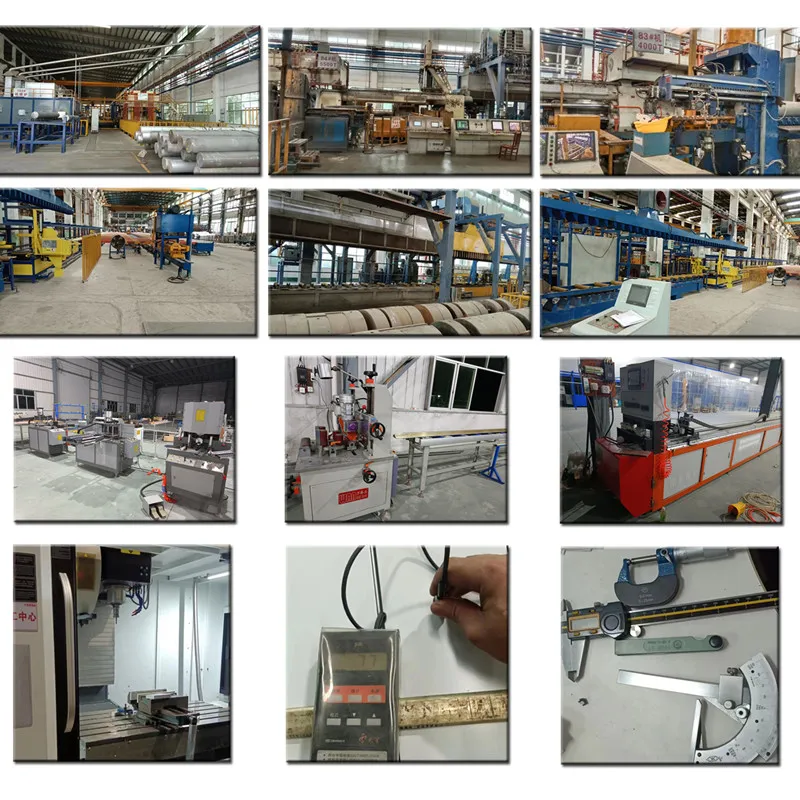

🏭 Production Capabilities

Frequently Asked Questions

1. What materials are used for the ground solar mounting system?

The system is primarily constructed from 6005 T5 aluminum alloy extrusion. Depending on project needs, carbon steel or zinc-magnesium-aluminum alloys may also be used for specific components.

2. What factors must be considered before installation?

Key factors include geographic location, local weather history (wind and snow load records), panel dimensions and weight, clearing height, and the required tilt angle for maximum efficiency.

3. How much wind and snow load can the brackets withstand?

Our standard designs withstand wind speeds up to 60m/s and snow loads up to 1.4KN/m2. Engineers can customize the structure to meet even higher local extreme weather requirements.

4. What is the typical warranty for the racking system?

The racking systems typically offer a warranty of 10 to 25 years, depending on the materials used and the installation environment.

5. Does the system require regular maintenance?

Yes, regular cleaning of the panels and checking the tension of bolts, nuts, and fasteners is recommended. Inspections are especially important after severe weather events like typhoons or heavy snow.

6. What installation methods are available for solar panels?

Standard methods include ground mounting, roof racking, rail fixation, floating systems for water bodies, and BIPV (Building-Integrated Photovoltaics).
