Jchx-CE New Waterproof BIPV Solar Mounting System for Large-Scale Factory Color Steel Tile Roofs

1 / 5

Jchx-CE New Waterproof BIPV Solar Mounting System for Large-Scale Factory Color Steel Tile Roofs

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO.	M00208	Certification	GB, ISO, TUV, CE, RoHS
Application	Home / Industrial	Material	Steel
Type	Solar Part	Coating	Zinc Aluminum Magnesium Coated
Grade	S250/350, etc.	Wind Load	0-60m/S
Snow Load	0-3kN/M²	Sample	Free

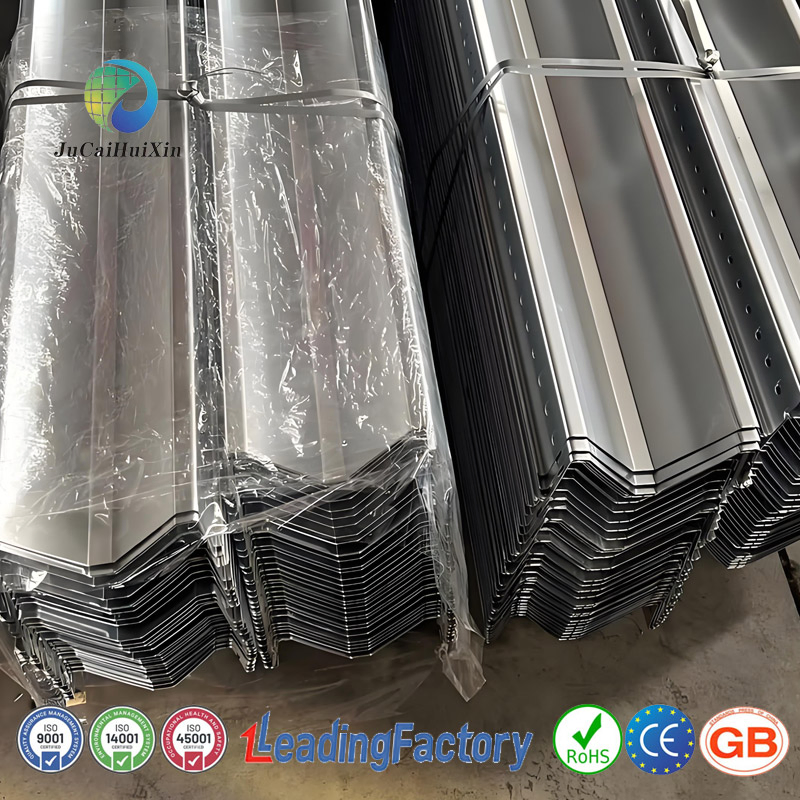

Packaging & Delivery

Package Size	25.00cm * 20.00cm * 27.00cm
Package Gross Weight	500.000kg

Product Description

Material	Carbon Steel	Grade	S350GD/S350/S250
Wall Thickness	0.8-1.2mm	Weight/Piece	11.7-15.4 kg
Service Life	Over 25 years	Corrosion Resistance	Very Strong

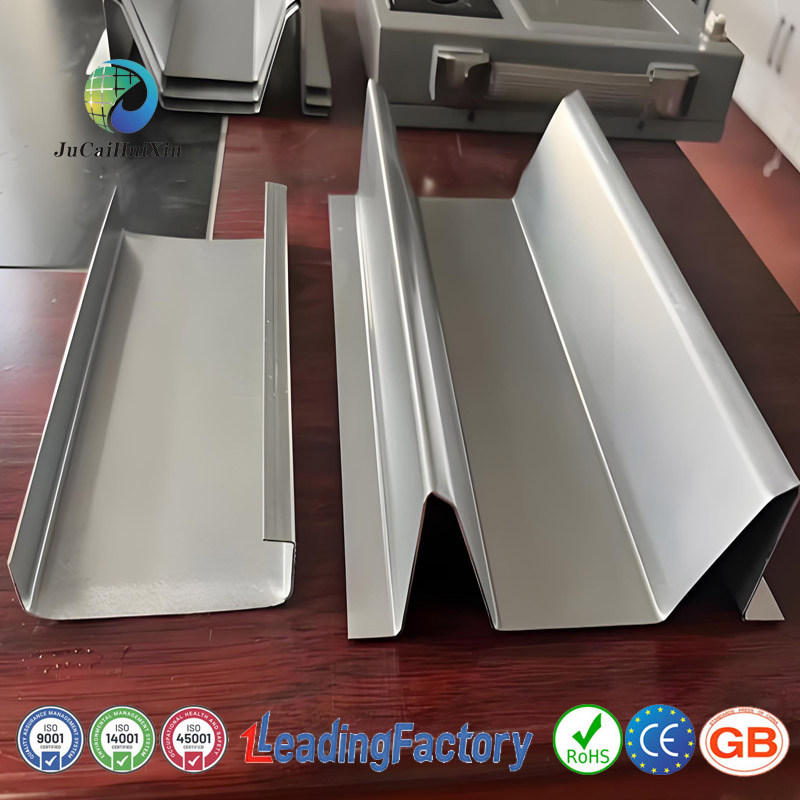

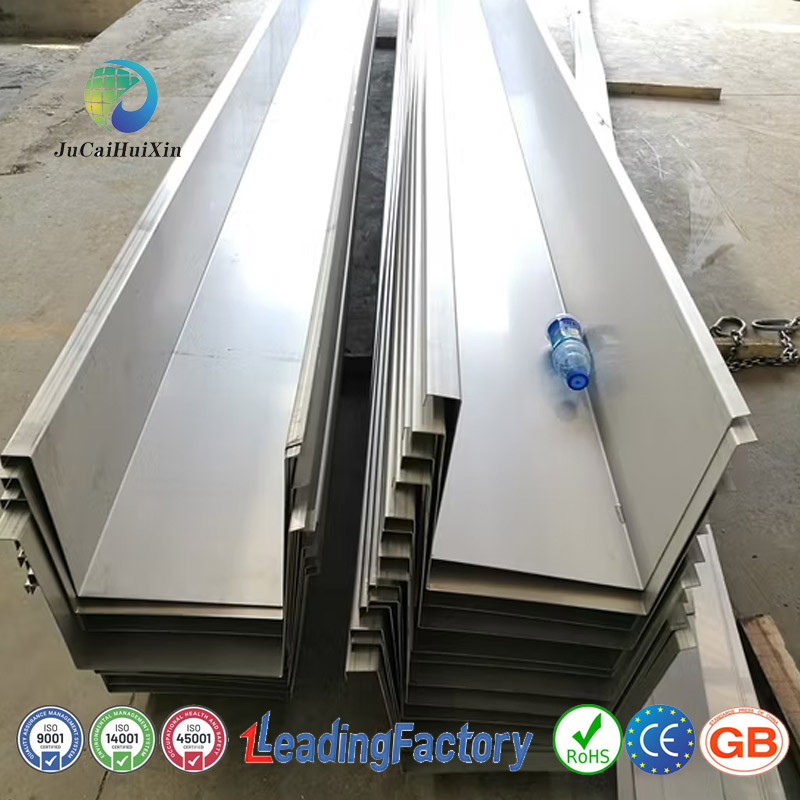

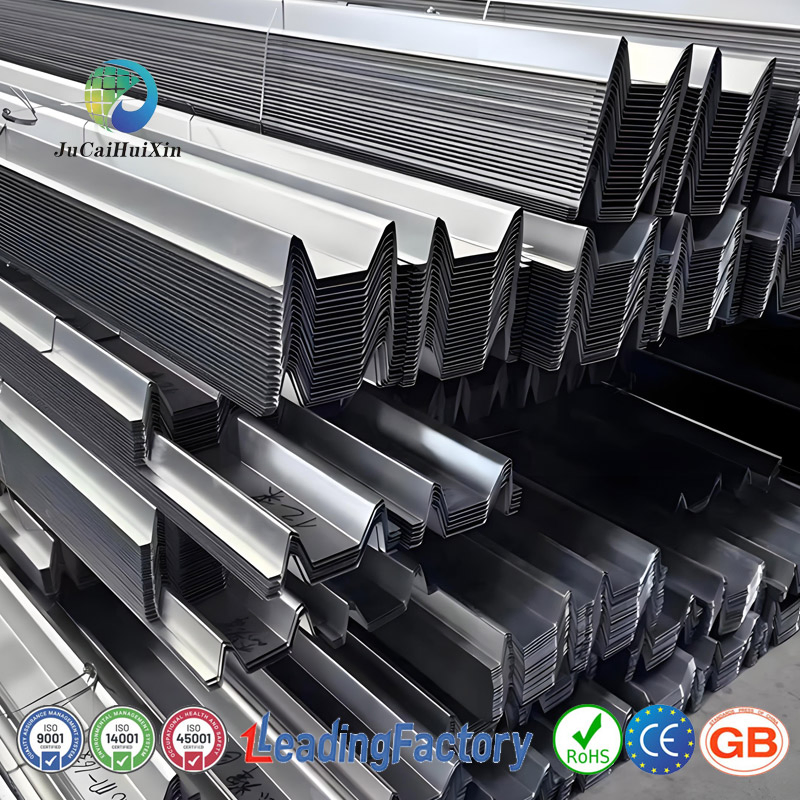

The New Waterproof BIPV Solar Mounting System for Large-Scale Factory Color Steel Tile Roofs is a highly corrosion-resistant photovoltaic bracket variety. It features excellent yield strength and tensile strength, combined with superior wear resistance. The thick protective layer on the surface adapts to harsh climates including salt spray, rain, and snow, making it ideal for coastal environments.

Core Advantages

Highly Corrosion-Resistant: High-quality Zinc Magnesium Aluminum solar gutter offers excellent weather resistance and uniform stress distribution.
High Structural Strength: Made of carbon steel with Zinc Aluminum Magnesium coating to resist impacts from wind, snow, and seismic activity.
Self-Repairing Technology: The advanced coating can repair minor surface scratches to prevent rust spread.

Certifications

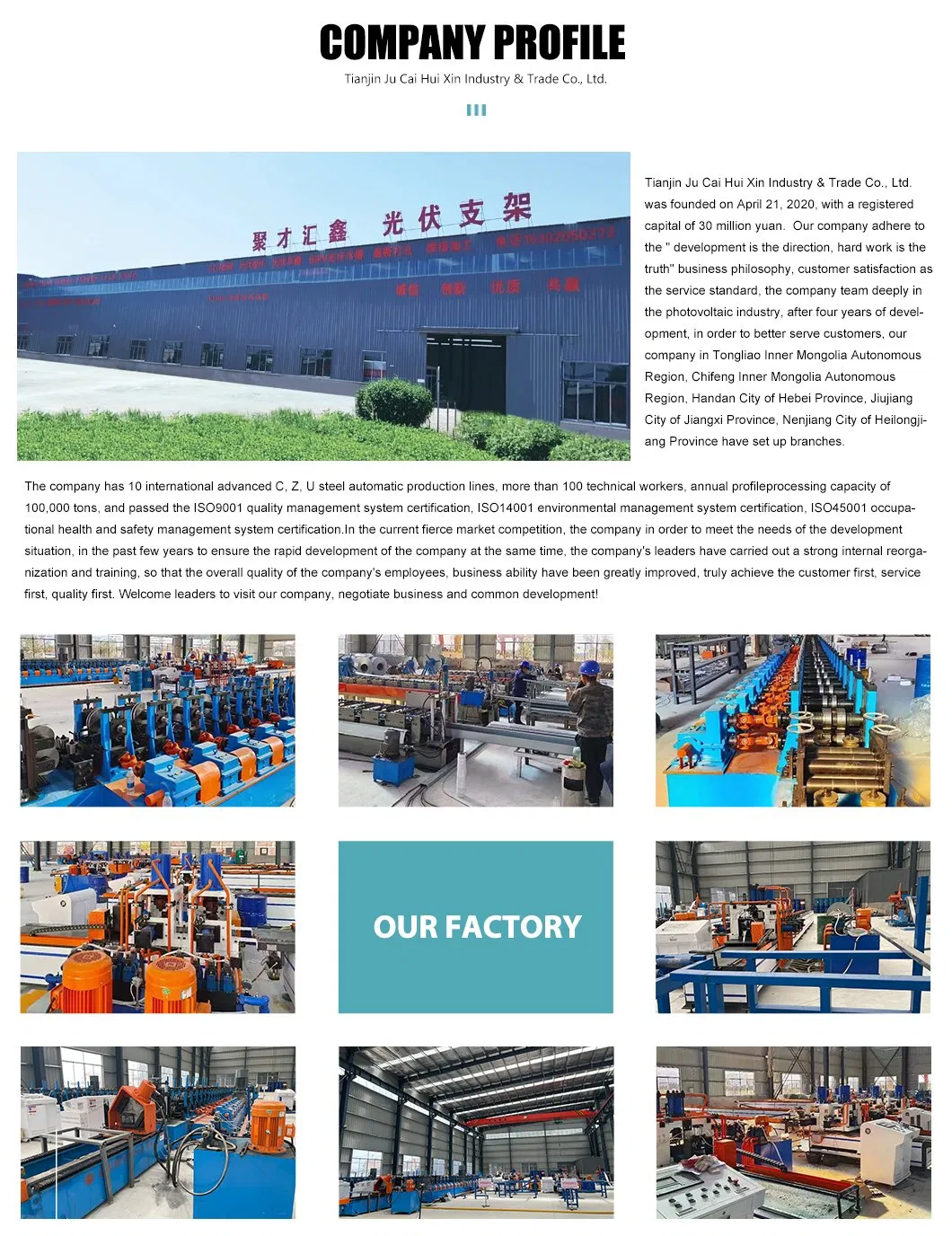

Our Manufacturing Strength

Expert in Intelligent Photovoltaic Brackets

10,000 Square Meter Intelligent Manufacturing Base.
10 Internationally Advanced CZU Steel Automated Production Lines.
Annual Production Capacity: 200,000 Tons of high-quality profiles.
Global Passport: ISO triple system, CE, and RoHS certifications.

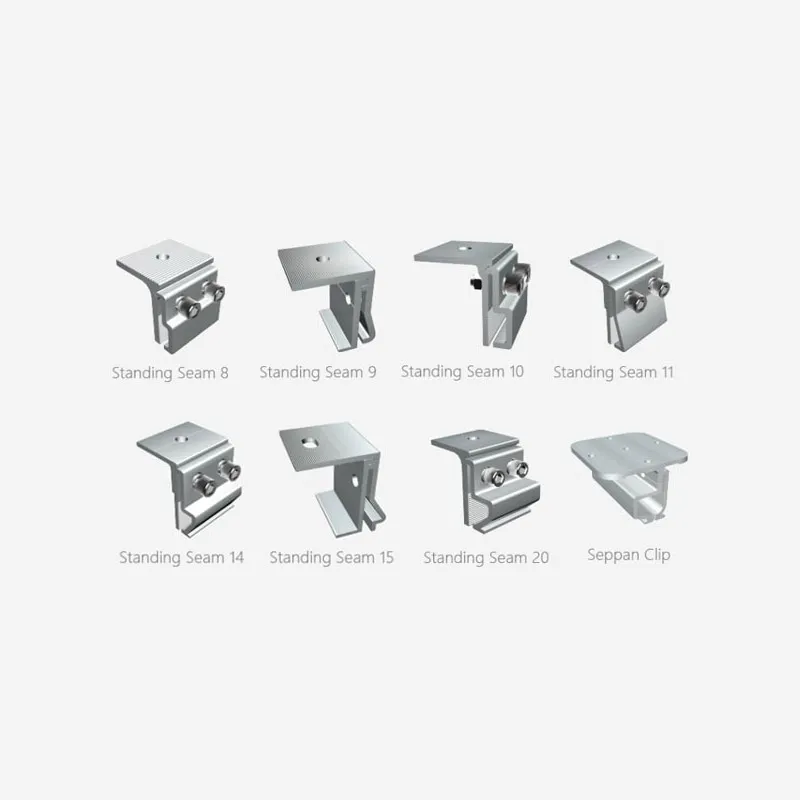

Product Matrix

Frequently Asked Questions

1. Why choose Zinc Aluminium Magnesium over traditional galvanised steel?

Zinc Aluminium Magnesium coating is 3-5 times more corrosion resistant, passing 4800 hours of neutral salt spray tests. It also offers self-repairing abilities for minor scratches and is 15% lighter, reducing logistics costs.

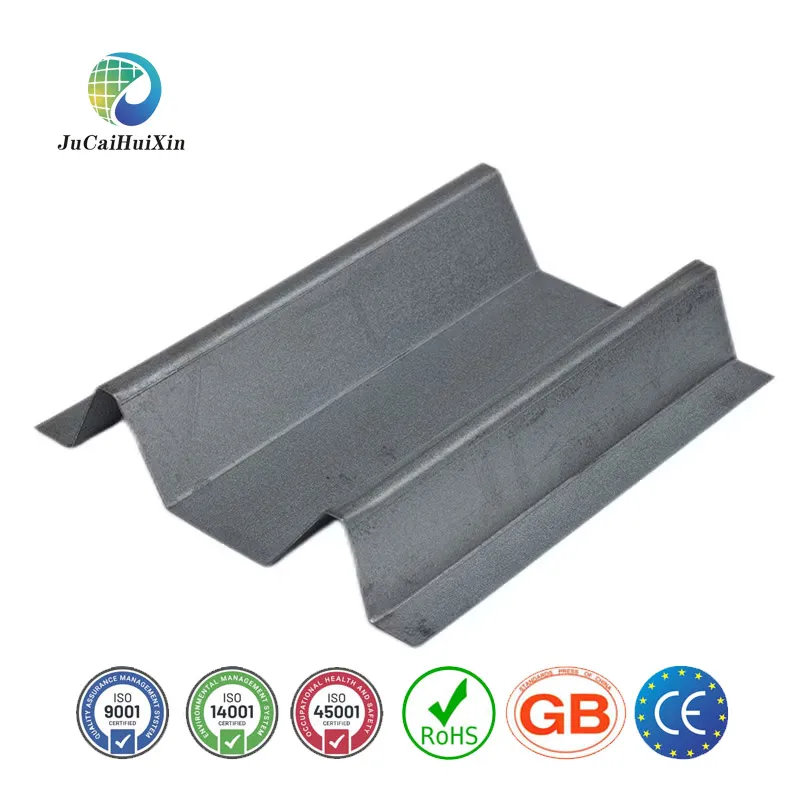

2. What are the benefits of the M-shaped design?

The unique M-shaped cross-section accelerates rainwater diversion to prevent penetration at joints, reduces debris accumulation like sand and leaves, and enhances longitudinal compression resistance for heavy loads.

3. Does this system fit all types of PV mounting?

Yes, it is universal and adaptable to mainstream aluminum or steel mounts. We also offer customization for slot lengths and non-standard connectors based on specific project drawings.

4. Will the system deform or crack in extreme weather?

No, it is tested for a temperature range of -40°C to +120°C and has passed IEC high/low temperature cycling tests. With anti-UV aging treatment, the expected service life is ≥ 25 years.

5. Is any special maintenance required?

The design is largely maintenance-free. We recommend a simple annual check of the seals. Surfaces can be quickly cleaned with a high-pressure water gun to remove environmental debris.

6. What international certifications do the products hold?

Our products comply with ISO 1461 (plating standards), CE (EU safety), and RoHS (environmental directives). The materials are 100% recyclable with low carbon production processes.
